Lord Fin Tube--Copper and copper alloy seamless low fin tube

What is seamless copper low finned tubes?

Seamless copper low finned tubes are generally machined to form fins with a certain height, a certain distance and a certain thickness on the outer surface of seamless copper tubes. Finned tubes are mostly used as heat exchange elements of condensers and evaporators of air conditioners. Seamless copper low finned tubes are often used in condensers.

How is the seamless copper low finned tubes manufactured?

Seamless copper low fin tube is processed and produced by rolling method (three roll cross rolling). Its working principle is: the smooth tube is lined with a mandrel, the tube material is driven by the roller blade to make a spiral linear movement, and the fins are gradually processed on its outer surface through the pass formed by the roller groove and the mandrel. In order to facilitate the fin forming, three stages of biting, rolling and shaping are adopted in the deformation process of the rolled piece to make the processed fins complete, smooth and regular. The seamless copper low fin tube produced by this method is an organic whole of the base tube and the outer fin Therefore, the seamless copper low finned tube has no problems of contact thermal resistance loss and electrical corrosion, and has good heat transfer efficiency and strong deformation resistance.

Seamless copper low finned tubes usages:

Seamless copper low finned tubes are widely used in various heat exchanging situation. Low fin tubes are mainly used on the condensers and evaporators for air conditioner and refrigerator, absorption refrigerator, oil cooler and other heat exchangers.

Seamless copper low finned tubes standard:

Application Standard: GB/T 19447, ASTM B359, ASME SB 59

Material : DLP, DHP, cupronickel , C12200, C44300/C68700/C70600/C71500, Aluminum Brass, Admiralty brass etc.

Temper: Finned area Y2, plain area M or whole section M.

Seamless copper low finned tubes sizes:

OD for plain section: 12-25.4mm

Wall thk.for plain section: 1-2.5mm

Fin Height: Max.1.45mm

Fin Qty: 19-50/inch

Length: Max. 12m

Seamless copper low finned tubes packing:

Packing: wooden case

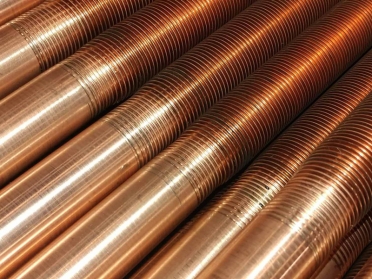

Seamless copper low finned tubes
