Finned Tube Coil, Stainless Fin Tube Coil, Laser Welded Fin Tube Coil

Laser welded fin tube coils features conpact design, high heat transfer efficiency, and strong resistance to hazard envirorment. 304. 316L. 444,904L. and other stainless steel material available.

Description

What is finned tube coil?

For gas-liquid exchange, finned tube coils are commonly used. Heat transfer on the gas side is typically much lower than on the liquid side, necessitating the use of heat sinks. On a single tube, the outer fins may be normal, transverse, spiral, or longitudinal. Longitudinal fins are commonly used in baffleless double tube or shell heat exchangers. Fluids can be either gases or viscous liquids. Our finned tube coil products are suitable for a wide range of applications, from small to large commercial and industrial projects.

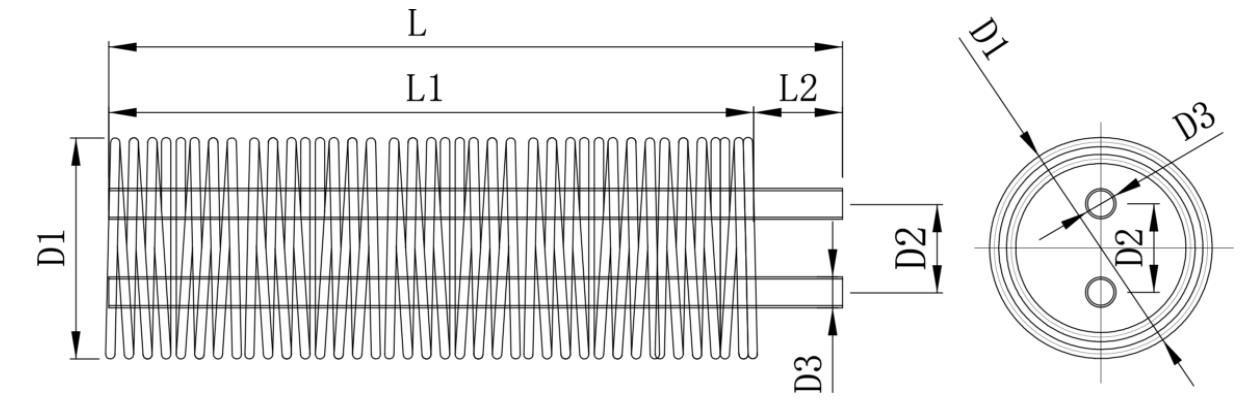

finned tube coil drawingManufacturing of Fin Tube Coils:

Laser welded fin tube coils features compact design, high heat transfer efficiency, and strong resistance to hazard envirorment. 304. 316L. 444,904L. and other stainless steel material available.

According to the customers specifications, we can produce helical coils ranging from micro fin tube to large diameters, including bare tubing, cone shaped, and double wrap coil. We are capable of handling any tube bending project. Finned tubing can be twisted and bent into a variety of shapes. Limited space is utilized rather than wasted by forming a tube length into a U-shape, circle, square, or serpentine configuration.

Finned Tube Coil Material:

Tube:  copper, steel or stainless steel

Fins: aluminum, copper, steel or stainless steel

Finned Tube Coil Specification:

Fin Tube Coil Specification

Tube OD

12~25 (mm)

0.47"~1.0"

Tube Wall Thk

1~5 (mm)

0.04"~0.20"

Tube Length

≤28,000 (mm)

≤92 ft

Fin Thk

0.5~2.5 (mm)

0.02"~0.10"

Fin Height

6~13 (mm)

0.24"~0.51"

Fin Pitch

1.8~4 (mm)

6~14 FPI

Fin Type

Solid,Serrated,Extruded

Material Combinations:

Fin Material

C.S. (most common grade:A179,A192,A210, Gr.A1/C, A106 Gr.B)

S.S. (most common grade:TP304,TP316,TP321,TP347,A789)

Aluminum

Cu(most common grade:TP2)

Tube Material

C.S. (most common grade: A106 Gr.B)

S.S. (most common grade are TP304,316, 321, 347)

Cu (most common grade:C12200,C14200, C70600,CuNi 70/30,CuNi 90/10)

Benefits of Finned Tube Coil:

• Capabilities for advanced and dependable thermal selection

• Long life cycle / endurance

• Resistance to corrosion

• Energy conservation

Properties of Fin Tube Coils:

• Installation is simple.

• Excellent functionality

• Resistance to corrosion

• Longer lifespan/durability

• fewer clogs

• minimal upkeep

• Different materials are available for various applications.

Finned Tube Coil Applications

Industrial Coils: heat exchangers, boilers, petroleum, chemical, fertilizer, chemical fiber, nuclear power, etc. Coils for fluids: beverages, beer, milk, water supply systems, equipment, etc. Coil for mechanical structures: printing and dyeing, printing, textile machinery, appliances, kitchen equipment, automobile and ship accessories, construction and decoration, etc. Application of laser welding finned tube in boiler and wall mounted furnace.

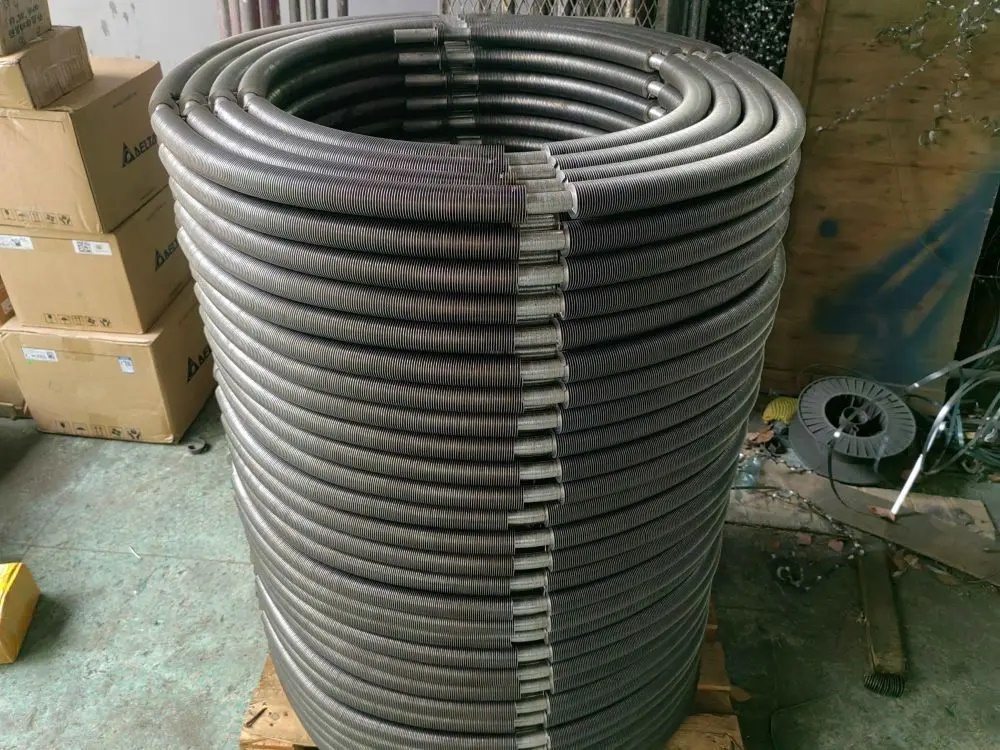

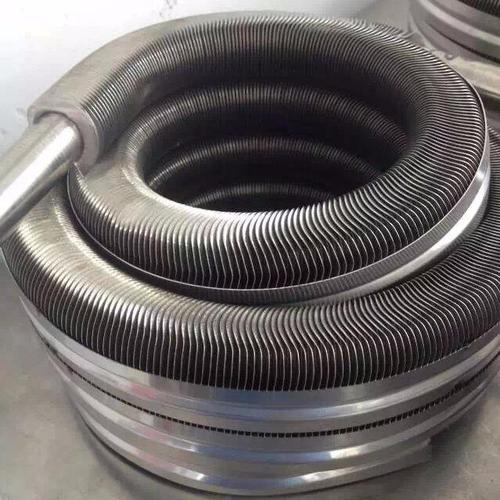

Stainless Steel Fin Tube Coil

Finned Tube Coil, Stainless Fin Tube Coil, Laser Welded Fin Tube Coil
