Introduction to H-Type Finned Tube Economizers
H-type finned tube economizers represent a significant advancement in waste heat recovery technology, designed to maximize thermal efficiency in industrial applications. These economizers utilize specially designed H-shaped finned tubes that create optimal heat transfer surfaces while minimizing pressure drop and erosion issues common in conventional economizer designs.
The H-type finned tube economizer is engineered with a unique "H" profile fin configuration that creates straight gas flow channels on both sides of the tube. This design significantly improves heat transfer efficiency while reducing ash deposition and erosion, making it particularly suitable for applications with high particulate content in flue gases.

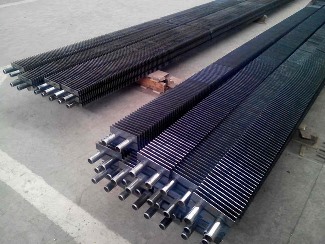

Figure 1: H-Type Finned Tube Economizer - Structural Design and Configuration
Finned Tube Economizer Technical
Standard Operating Parameters
| Parameter | Standard Range | Optimal Value |
|---|---|---|
| Steam Pressure | 0.5 - 4.0 MPa | 2.5 - 3.5 MPa |
| Steam Form | Saturated / Superheated Steam | Superheated Steam |
| Flue Gas Temperature (Inlet) | 300 - 600°C | 400 - 500°C |
| Flue Gas Velocity | 5 - 12 m/s | 7 - 9 m/s |
| Heat Transfer Coefficient | 45 - 65 W/m²K | 55 - 60 W/m²K |
| Power Generation Range | 600 kW - 15,000 kW | 2,000 - 8,000 kW |
Performance Comparison: H-Type vs Conventional Economizers
| Parameter | H-Type Finned Tube Economizer | Bare Tube Economizer | Helical Finned Tube Economizer |
|---|---|---|---|
| Heat Transfer Efficiency | High (40-60% improvement) | Baseline | Moderate (15-25% improvement) |
| Erosion Resistance | Excellent | Poor | Good |
| Ash Deposition | Minimal | Significant | Moderate |
| Pressure Drop | Low to Moderate | Low | High |
| Maintenance Requirements | Low | High | Medium |
| Space Requirements | Compact | Large | Moderate |
| Cost Efficiency | High (ROI: 12-24 months) | Low | Medium (ROI: 24-36 months) |
Finned Tube Economizer Structural Design
Enhanced Heat Transfer Surface
The H-type fin configuration creates approximately 2.5 times more heat transfer surface area compared to bare tubes, significantly improving thermal efficiency without substantially increasing pressure drop.
Gas Flow Channels
The straight channels formed by H-fins on both sides of the tube create uniform flow distribution, reducing localized erosion and improving soot blowing effectiveness by 40-60% compared to conventional designs.
Structural Rigidity
The H-type finned tube design provides exceptional structural stability, allowing for longer tube rows and reduced support requirements, which decreases overall system weight by 25-35%.
Material Specifications and Construction
H-type finned tubes are manufactured using advanced resistance welding technology, achieving weld fusion rates exceeding 95%. This ensures excellent thermal conductivity and mechanical strength. Standard materials include:
| Component | Standard Material | Alternative Materials | Temperature Limit |
|---|---|---|---|
| Base Tube | Carbon Steel (SA-210) | Stainless Steel (304/316), Alloy Steel | 450°C |
| Fins | Carbon Steel | Stainless Steel, Corten Steel | 480°C |
| Welding | High-Frequency Resistance | Laser Welding | N/A |
Performance Benefits and Operational Advantages
Energy Efficiency
H-type finned tube economizers can recover 65-80% of waste heat from exhaust gases, reducing fuel consumption by 5-15% depending on application parameters.
Cost Savings
Power consumption is significantly reduced to only 2-4 kW per ton of steam generated, resulting in operational cost savings of 20-35% compared to conventional systems.
Reduced Maintenance
The robust design and reduced erosion translate to maintenance intervals extended by 2-3 times, with component lifespan increased by 40-60%.
Space Optimization
Compact design reduces footprint requirements by 30-50% compared to bare tube economizers, making them ideal for space-constrained installations.
Finned Tube Economizer Application
Primary Industries and Applications
H-type finned tube economizers are particularly effective in industries with challenging operating conditions and high particulate content in flue gases:
- Power Generation: Coal-fired, biomass, and waste-to-energy plants with capacity from 600 kW to 15,000 kW
- Chemical Processing: High-temperature reactors, reformer furnaces, and process heaters
- Metallurgical Industry: Smelting furnaces, reheating furnaces, and annealing lines
- Pulp & Paper: Recovery boilers and chemical recovery systems
- Refining: Crude heaters, catalytic crackers, and reformer units
Circulation Systems and Configuration Options
H-type finned tube economizers support both natural and forced circulation systems, with selection based on specific application requirements:
| Circulation Type | Recommended Applications | Advantages | Limitations |
|---|---|---|---|
| Natural Circulation | Small to medium systems, stable load conditions | No pumping power required, simpler operation | Limited to lower pressure systems, slower response |
| Forced Circulation | Large systems, variable load conditions | Better control, higher efficiency, faster response | Requires pumping power, more complex system |
Technical Innovations in H-Type Fin Tube Design
The H finned tube represents a significant evolution in extended surface technology. Also known as H-type ribbed tubes or butterfly tubes, these components feature two rectangular fins with an approximate 2:1 length-to-width ratio welded symmetrically to the base tube using advanced flash resistance welding technology.
Recent technical developments have further enhanced H-type finned tube performance:
- Double-H Configuration: For applications requiring additional structural integrity, double-H finned tubes provide enhanced rigidity and can be used in longer tube row arrangements.
- Advanced Welding Techniques: Modern resistance welding achieves fusion rates exceeding 95%, with tensile strength matching the base materials and thermal conductivity optimized for maximum efficiency.
- Material Innovations: Development of specialized alloys and coatings has extended temperature limits and improved corrosion resistance in aggressive flue gas environments.
For specific applications requiring alternative fin configurations, the S-type fin tube offers complementary benefits in different operating conditions.
The Future of Efficient Heat Recovery
H-type finned tube economizers represent a proven, high-efficiency solution for industrial waste heat recovery. With their unique combination of enhanced heat transfer, reduced erosion, compact footprint, and operational reliability, these systems deliver substantial economic and environmental benefits across multiple industries.
As energy efficiency requirements continue to tighten and operational costs remain a primary concern, H-type finned tube technology offers a robust, cost-effective solution for maximizing thermal efficiency while minimizing maintenance requirements and environmental impact.
Continuous innovation in materials, manufacturing processes, and system design ensures that H-type finned tube economizers will remain at the forefront of waste heat recovery technology, providing sustainable solutions for industrial energy challenges.
