What Are Aluminum Oval Finned Tubes?

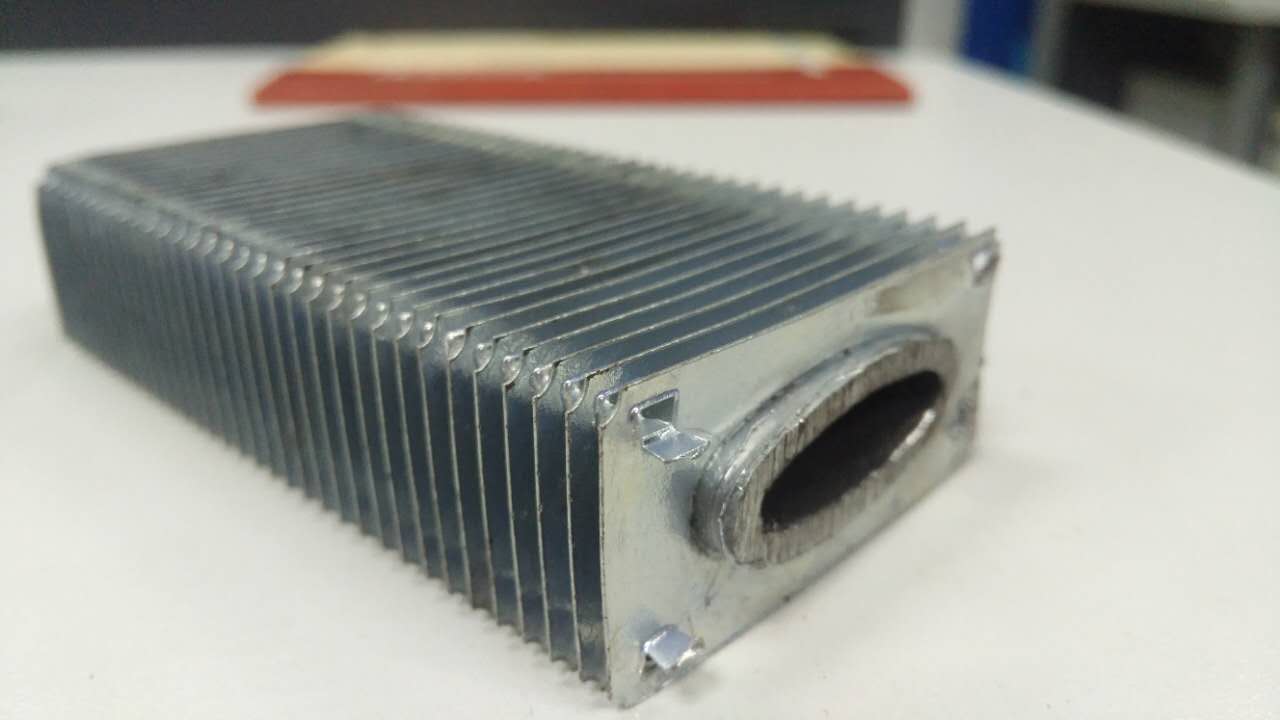

Aluminum oval finned tubes represent an advanced engineering solution in heat exchanger technology. These specialized components feature elliptical-shaped fins that are either welded or extruded onto an oval base tube. The unique geometry of aluminum oval finned tubes provides significant advantages in thermal performance and operational efficiency compared to traditional round fin designs.
The innovative design of aluminum oval finned tubes maximizes surface area contact while minimizing air resistance, creating optimal conditions for heat transfer. This makes them particularly valuable in applications where space constraints, weight considerations, and energy efficiency are critical factors.
Engineers frequently specify aluminum oval finned tubes for systems that demand high heat flux in confined spaces. The elliptical profile reduces boundary layer buildup, allowing more effective heat dissipation over extended operational cycles. Additionally, the smooth surface finish of quality aluminum oval finned tubes limits particulate adhesion, which directly improves fouling resistance and reduces maintenance frequency.
Advantages of Aluminum Oval Finned Tubes
Enhanced Heat Transfer Efficiency
The oval shape increases the surface area-to-volume ratio by approximately 15-25% compared to round tubes, significantly optimizing heat dissipation and thermal performance.
Reduced Airflow Resistance
The streamlined aerodynamic design minimizes pressure drop by 10-20%, resulting in lower energy consumption for air movement and improved overall system efficiency.
Superior Corrosion Resistance
Aluminums natural oxide layer provides excellent protection against moisture, chemicals, and environmental factors, extending service life in harsh operating conditions.
Lightweight & Cost-Effective
Aluminums low density reduces structural support requirements and transportation costs while maintaining excellent thermal conductivity properties.
Beyond these core benefits, aluminum oval finned tubes also exhibit excellent fatigue resistance under cyclic thermal loading. The uniform fin attachment methods—whether brazed, welded, or integrally extruded—ensure consistent heat transfer across the entire fin surface. This reliability makes them a preferred choice for critical process cooling and heating applications.
Applications of Aluminum Oval Finned Tubes
HVAC Systems
Used in air conditioning condensers, evaporators, and heat pumps where compact size and high efficiency are essential for optimal performance.
Power Plants
Critical components in heat recovery steam generators (HRSGs), economizers, and other thermal management systems for improved energy recovery.
Petrochemical Plants
Ideal for process gas coolers, heaters, and heat exchangers where corrosion resistance and thermal efficiency are paramount.
Renewable Energy
Employed in solar thermal collectors, biomass systems, and waste heat recovery applications supporting sustainable energy solutions.
Additional applications include marine cooling systems, food processing equipment, and pharmaceutical manufacturing where sanitary conditions and precise temperature control are required. The versatility of aluminum oval finned tubes allows engineers to adapt them to both low- and high-pressure environments with appropriate wall thickness and alloy selection.
How Aluminum Oval Finned Tubes Compare to Round Tubes
| Parameter | Oval Fin Tube | Round Fin Tube |
|---|---|---|
| Heat Transfer Rate | 15-25% Higher | Standard |
| Pressure Drop | 10-20% Lower | Higher |
| Fouling Resistance | Superior (Less debris buildup) | Moderate |
| Material Efficiency | Optimized surface area | Less efficient |
| Space Requirements | Compact design | Larger footprint |
| Airside Pressure Drop | Lower due to streamlined profile | Higher turbulent losses |
| Fabrication Complexity | Moderate (specialized tooling) | Standard |
When selecting between oval and round fin tubes, engineers must consider not only heat transfer performance but also the overall system integration cost. Aluminum oval finned tubes typically offer lower lifetime operating costs due to reduced fan energy consumption and extended cleaning intervals, which often outweigh the slightly higher initial fabrication investment.
Design Considerations for Aluminum Oval Finned Tubes
Fin Density and Configuration
Selecting appropriate fin density is crucial - higher fin density improves heat transfer but may increase airflow resistance. Our engineers optimize this balance based on specific application requirements.
Tube Material Selection
Aluminum alloys (such as 3003, 6061, and 6063) are carefully selected to balance strength, thermal conductivity, and corrosion resistance for specific operating environments.
Surface Treatment Options
For corrosive environments or extreme temperatures, specialized surface treatments including hydrophilic coatings, anodizing, or specialized finned tube protectants can significantly extend service life.
Thermal Expansion Management
The differential expansion characteristics between base tube and fins must be engineered to prevent performance degradation over extended operational periods.
Additionally, the orientation of aluminum oval finned tubes within a heat exchanger bank affects both heat transfer and pressure drop. Staggered tube arrangements typically deliver higher heat transfer coefficients than in-line configurations, though they also increase airside resistance. Computational fluid dynamics (CFD) modeling is often employed during the design phase to predict performance and optimize tube spacing, fin pitch, and approach velocity for a given system.
How Aluminum Oval Finned Tubes Are Manufactured
The production of high-quality aluminum oval finned tubes involves several precise manufacturing steps that ensure consistent geometry and metallurgical integrity. Understanding these processes helps buyers evaluate supplier capabilities and product quality.
Tube Forming
Aluminum strip or seamless tube is drawn or extruded into an oval cross-section with precisely controlled major and minor axes.
Fin Attachment
Aluminum fins are either integrally extruded from the tube wall, helically wound and brazed, or welded in a continuous process.
Heat Treatment
Annealing or solution heat treatment relieves residual stresses and optimizes the mechanical properties of the base alloy.
Surface Finishing
Chemical cleaning, passivation, or optional coating application ensures corrosion resistance and improves wettability for certain fluids.
Advanced manufacturers of aluminum oval finned tubes employ laser or ultrasonic inspection methods to verify fin-to-tube bond integrity. This nondestructive testing ensures that every section of the tube meets thermal performance specifications. Buyers should inquire about the specific quality control protocols used during production, as these directly affect the long-term reliability of the finished heat exchanger.
Which Alloys Are Used for Aluminum Oval Finned Tubes
Selecting the correct aluminum alloy for oval finned tubes is fundamental to achieving desired strength, corrosion resistance, and thermal conductivity. The table below summarizes common alloys and their primary characteristics.
| Alloy | Tensile Strength (MPa) | Thermal Conductivity (W/m·K) | Corrosion Resistance | Typical Applications |
|---|---|---|---|---|
| 3003 | 110–145 | 160–190 | Good (general purpose) | HVAC, air-cooled heat exchangers |
| 6061 | 240–310 | 150–170 | Excellent (marine, industrial) | Power plants, chemical processing |
| 6063 | 180–240 | 190–210 | Good (atmospheric exposure) | Architectural, solar collectors |
| 1100 | 90–110 | 220–235 | Moderate (clean environments) | Food processing, pharmaceutical |
| 5052 | 195–260 | 130–140 | Very good (saltwater) | Marine cooling, offshore equipment |
When evaluating aluminum oval finned tubes for a specific project, consider the operating temperature range, fluid corrosivity, and mechanical loading. Alloys with higher magnesium content (such as 5052) offer superior resistance to chloride-induced pitting, making them suitable for coastal or marine installations. For high-temperature applications exceeding 150°C, alloy 6061 or custom heat-treated variants are often recommended to maintain creep resistance.
What Performance Metrics Matter for Aluminum Oval Finned Tubes
Quantifying the performance of aluminum oval finned tubes requires attention to several key engineering parameters. These metrics enable direct comparison between different designs and suppliers.
| Metric | Typical Range | What It Indicates |
|---|---|---|
| Overall Heat Transfer Coefficient (U) | 30–80 W/m²·K (air-side) | Combined thermal efficiency of tube and fins |
| Fin Efficiency | 75–95% | How effectively fin surface contributes to heat transfer |
| Pressure Drop (ΔP) | 50–400 Pa (per row) | Airside resistance; impacts fan power consumption |
| Fouling Factor | 0.0001–0.0005 m²·K/W | Resistance increase due to dirt or deposit buildup |
| Tube Wall Thickness | 0.8–2.5 mm | Determines pressure rating and structural durability |
| Fin Pitch | 2.0–6.0 mm | Affects heat transfer density and cleaning ease |
Performance testing of aluminum oval finned tubes is typically conducted in accordance with standards such as ASME PTC 12.1 or ISO 12211. Buyers should request certified test data from suppliers, especially for large-scale or safety-critical installations. Understanding these metrics allows engineers to model overall system performance accurately and make informed decisions regarding tube configuration, fin geometry, and operating parameters.
Maintenance Best Practices for Aluminum Oval Finned Tubes
Regular Inspection Protocols
Implement scheduled visual inspections for fin damage, debris accumulation, and signs of corrosion. Infrared thermal imaging can detect early performance issues before they impact system efficiency.
Cleaning Procedures
Use low-pressure air or water systems for cleaning to avoid fin damage. For heavily soiled environments, consider automated cleaning systems to maintain optimal performance.
Performance Monitoring
Track thermal performance metrics to detect early signs of fouling or efficiency loss. Establishing baseline performance data enables predictive maintenance scheduling.
Corrosion Prevention
In highly corrosive environments, implement additional protective measures such as cathodic protection or specialized coating systems to extend service life.
For aluminum oval finned tubes operating in humid or chemically aggressive atmospheres, periodic wash-down with neutral pH cleaners helps remove corrosive deposits. Always avoid caustic or acidic cleaning agents that could attack the aluminum oxide layer. When mechanical cleaning is necessary, use soft-bristle brushes and avoid impact tools that could deform the delicate fin structure.
Why Choose Aluminum Oval Finned Tubes?
In todays competitive industrial landscape, aluminum oval finned tubes deliver unmatched efficiency, durability, and cost savings for heat exchange applications. Their unique combination of thermal performance, reduced pressure drop, and corrosion resistance makes them the superior choice for engineers specifying heat transfer components.
The adaptability of aluminum oval finned tubes across industries—from HVAC to renewable energy—demonstrates their versatility and positions them as a sustainable solution for modern engineering challenges. As energy efficiency requirements become more stringent and space constraints more challenging, the technical advantages of oval fin tube technology become increasingly valuable.
Furthermore, the lightweight nature of aluminum oval finned tubes reduces structural loading on support frames and foundations, which can lead to significant cost savings in large-scale installations. Their recyclability also aligns with environmental sustainability goals, making them an attractive option for green building and low-carbon industrial projects.
How to Select Aluminum Oval Finned Tubes for Your System
Selecting the optimal aluminum oval finned tubes for a given heat exchange application involves a systematic evaluation of thermal, mechanical, and economic factors. The following steps provide a practical framework for buyers and engineers.
) left center no-repeat; background-size: 18px;">Define the required heat duty, inlet/outlet temperatures, and fluid properties (air, gas, or liquid). ) left center no-repeat; background-size: 18px;">Establish maximum allowable pressure drop across the tube bank, which determines fin density and tube spacing. ) left center no-repeat; background-size: 18px;">Select the appropriate alloy based on operating temperature, fluid corrosivity, and mechanical stress. ) left center no-repeat; background-size: 18px;">Evaluate fin geometry (oval major/minor axis ratio, fin height, fin pitch) using performance curves or simulation tools. ) left center no-repeat; background-size: 18px;">Consider manufacturing tolerances and quality certifications to ensure consistent product performance. ) left center no-repeat; background-size: 18px;">Compare total cost of ownership (initial cost + energy + maintenance) across different suppliers.
Working closely with an experienced manufacturer of aluminum oval finned tubes can streamline this selection process. Many suppliers offer design assistance, sample testing, and customized fin configurations to meet specific performance targets. Providing detailed process data—including fluid composition, flow rate, and expected fouling behavior—enables accurate sizing and guarantees.
What Questions to Ask About Aluminum Oval Finned Tubes
The oval geometry reduces the wake region behind the tube, lowering pressure drop while increasing the effective heat transfer area. This typically yields a 15–25% improvement in the overall heat transfer coefficient under comparable air velocities.
Integral extrusion (where fins are formed from the tube wall itself) offers the highest bond strength and no risk of bond-line corrosion. Brazed or welded fins are also widely used and reliable when performed under controlled manufacturing conditions.
In heavy dust or particulate-laden air streams, cleaning every 3–6 months is typical. In cleaner environments, annual inspection and cleaning may suffice. Performance monitoring will indicate when cleaning is actually required.
Aluminum offers lower density, higher corrosion resistance in many environments, and generally lower cost than copper. While copper has higher thermal conductivity, the improved aerodynamics of aluminum oval finned tubes often compensate, especially in air-cooled heat exchangers.
With proper selection, installation, and maintenance, aluminum oval finned tubes can last 15–25 years or more. In aggressive environments, additional coatings or cathodic protection can extend service life toward the upper end of that range.
