Cast iron economizer VS Steel tube economizer
In the field of modern energy, especially in the optimization of thermal energy equipment, economizers, as important energy-saving equipment, are widely used in heat exchange systems such as boilers. It reduces heat loss by recovering heat from the flue gas, thereby improving the thermal efficiency of the equipment and reducing fuel consumption. When it comes to choosing economizers, tubular economizers and cast iron economizers are two common types.

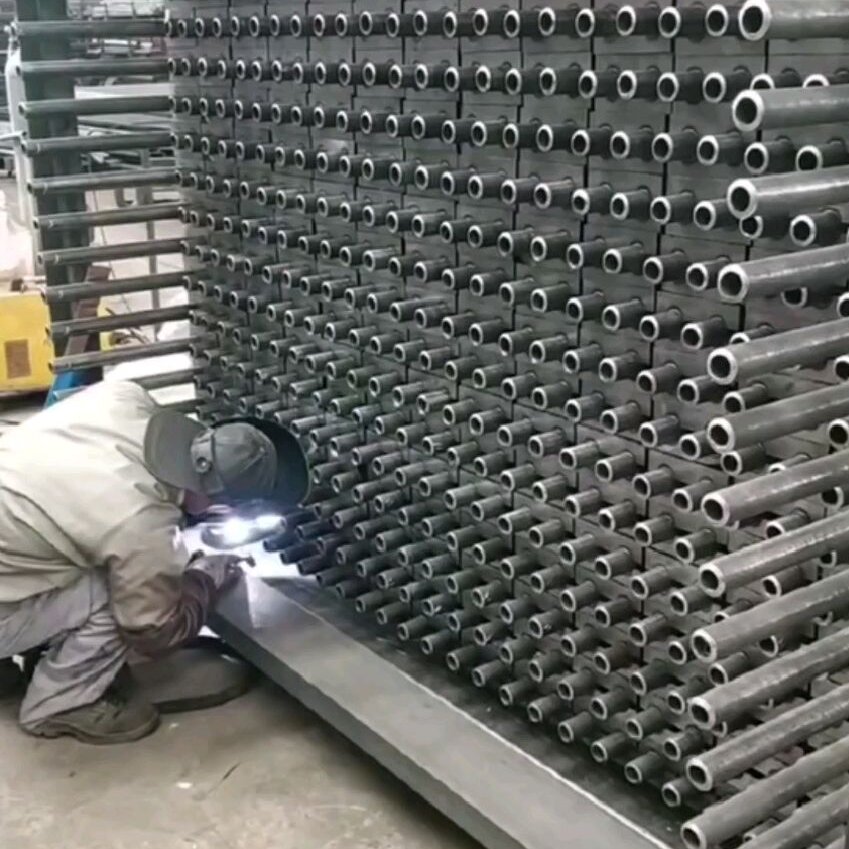

Steel tube economizer
Structure and working principle: The steel tube economizer is composed of metal steel pipes, and the flue gas flows through the pipe, and the water or steam flows through the pipe. The good thermal conductivity of the steel tube allows the steel tube economizer to efficiently transfer the heat in the flue gas to the water or steam flowing through the pipe.
Steel tube economizer Advantage:
Superior thermal conductivity: Steel has strong thermal conductivity, which can quickly transfer heat from the flue gas to the fluid, improving the heat exchange efficiency.
High temperature resistance: The steel pipe has good high temperature resistance and is suitable for high temperature flue gas environment, so it can be used in high-power, high-temperature industrial boilers.
Corrosion resistance: The surface coating or special treatment of steel pipe can effectively resist corrosion in flue gas and prolong the service life of the equipment.
Wide range of applications: Tubular economizers are suitable for all types of boilers, especially in high temperature and high pressure environments.
Steel tube economizer Shortcoming
Higher cost: Steel pipes are more expensive to manufacture and maintain than cast iron.
Complex manufacturing process: Steel-tube economizers require high technical requirements, and the production and installation process is complex.
Cast iron economizer
Structure and working principle: The core part of a cast iron economizer is made of cast iron components, usually by directing flue gas into a cast iron plate or pipe, using the heat conduction characteristics of cast iron for heat exchange.
Cast iron economizer Advantage:
Good corrosion resistance: Cast iron is naturally resistant to corrosion, making it ideal for use at low or medium temperatures.
Lower cost: Cast iron economizers offer lower manufacturing and maintenance costs than tubular economizers, making them suitable for projects on tight budgets.
Simple manufacturing process: The processing of cast iron materials is relatively simple, and the production cycle of the equipment is short.
Cast iron economizer Shortcoming:
Poor high temperature resistance: Cast iron has poor high temperature resistance, and once exposed to high temperatures for a long time, it may cause cracks or fractures in the material, limiting its use in high-temperature industrial applications.
Poor heat conductivity: Cast iron has lower heat conductivity than steel pipes, so cast iron economizers may have lower heat exchange efficiency than steel tubes under the same conditions.
Heavy and fragile: Cast iron is heavy and brittle and prone to breakage, especially when subjected to shocks or sudden temperature changes.
How to Selection economizer
Tubular and cast iron economizers each have different advantages, and the choice of equipment depends on the specific application requirements, cost budget, and environmental conditions.
High-temperature and high-pressure applications: If the environment needs to handle high-temperature flue gases, the steel tube economizer is undoubtedly the better choice. Its high-temperature resistance and efficient heat exchange capacity can meet the needs of high-power boilers or industrial equipment.
Low or Medium Temperature Environment: For some industrial applications with low or medium temperatures, cast iron economizers can provide adequate heat exchange efficiency, and their low cost makes them a cost-effective option.
Budget constraints: If the project budget is tight, cast iron economizers are suitable for small and medium-sized enterprises or projects with lower budgets due to lower manufacturing costs and simpler processes.
Corrosion-resistant environments: Cast iron economizers have better corrosion resistance in some environments containing corrosive flue gases, while steel tubular economizers, although also have anti-corrosion treatments, may require more maintenance in highly corrosive environments.
Tubular economizers and cast iron economizers have their own advantages and disadvantages, and the choice needs to be decided according to the actual use conditions and budget. Tubular economizers are suitable for industrial applications with high temperature, high pressure, and high thermal efficiency requirements, while cast iron economizers are suitable for low and medium temperature environments and where the budget is limited.
