What is ASTM A182 F22 forged tube sheet?

ASTM A182 F22 is a specification for forged or rolled alloy steel pipe flanges, forged fittings, and valves and parts for high-temperature service. A tube sheet is a flat plate that is used to support the ends of tubes in a heat exchanger or a boiler.

Therefore, an ASTM A182 F22 forged tube sheet would be a tube sheet made from the alloy steel specified in the ASTM A182 F22 standard that has been forged or rolled. This type of tube sheet would be suitable for use in high-temperature applications, such as in heat exchangers or boilers, where it is important to have a material that can withstand high temperatures and pressures.

It is important to note that the specific properties and characteristics of an ASTM A182 F22 forged tube sheet will depend on the manufacturing process, as well as any additional processing or treatment that the material may undergo. It is recommended to consult the standard and the manufacturers specifications for further information on the specific properties of an ASTM A182 F22 forged tube sheet.

Additional information for ASTM A182 F22 forgeed tube sheet

1. ASTM A182 F22 is a low alloy steel that contains chromium and molybdenum, which provide increased strength, resistance to corrosion, and high-temperature performance.

2. Forging is a manufacturing process that involves shaping metal by applying pressure through a series of compressive forces. In the case of a tube sheet, the material is heated to a high temperature and then shaped using a press or hammer to create the desired shape.

3. Rolled tube sheets, on the other hand, are typically made by hot or cold rolling the material to the desired thickness and then machining it to the required shape.

4. Tube sheets are an important component in heat exchangers and boilers, as they provide a surface for the tubes to be attached to and help to maintain the structural integrity of the unit.

When selecting a tube sheet material, its important to consider factors such as temperature, pressure, corrosion resistance, and mechanical properties to ensure that the material is suitable for the intended application.

ASTM A182 F22 forged tube sheet size

The size of an ASTM A182 F22 forged tube sheet can vary depending on the specific application and manufacturer. However, the ASTM A182 F22 standard provides specifications for the maximum and minimum sizes that are allowed for forged or rolled products made from this alloy.

According to the standard, the maximum size for a forged or rolled product made from ASTM A182 F22 alloy is 160 inches (4.06 meters) in diameter or thickness, and the minimum size is 1/8 inch (3.2 millimeters).

As for the size of a tube sheet, it will depend on the size and number of tubes that it needs to support. Tube sheets can range in size from a few inches to several feet in diameter, and they can be several inches thick.

The specific size of an ASTM A182 F22 forged tube sheet that is required for a particular application will depend on the design specifications of the heat exchanger or boiler in which it will be used. Its important to consult with the manufacturer or engineer to determine the appropriate size and dimensions for the tube sheet based on the specific requirements of the application.

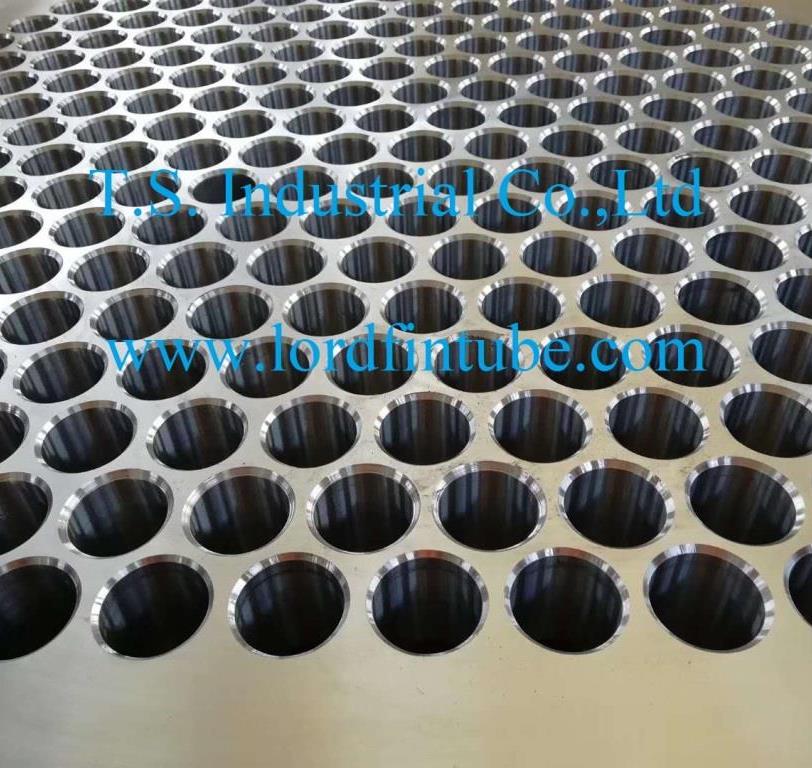

ASTM A182 F22 forged tube sheet
