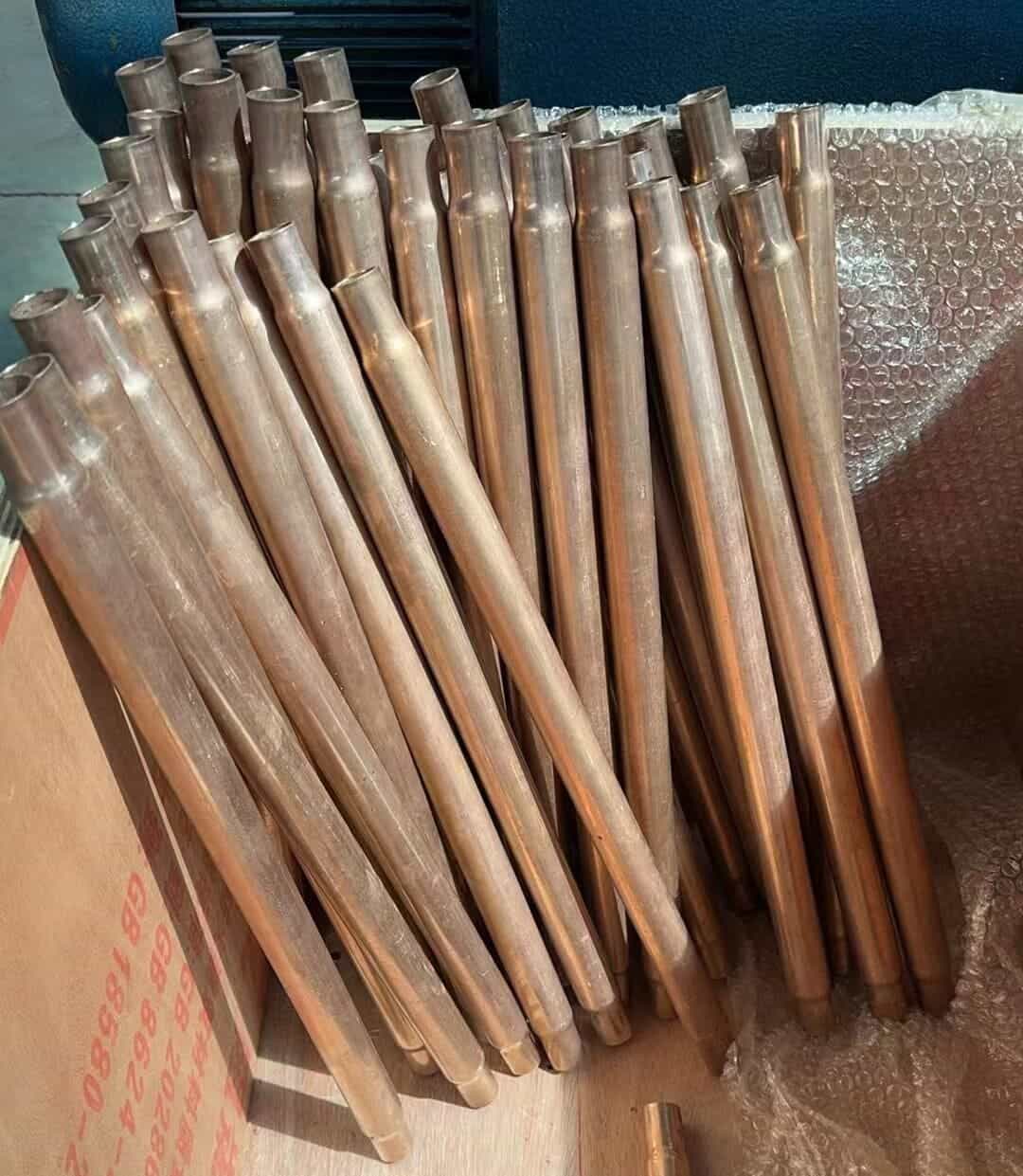

Centac Cooler Copper Tube
In the world of industrial air compression, the Ingersoll Rand Centac series stands as a benchmark for power, efficiency, and reliability. But beneath the robust casing and sophisticated controls lies a critical component that often determines the difference between optimal performance and costly downtime: the Centac Cooler Copper Tube within the Centac intercooler and aftercooler systems.

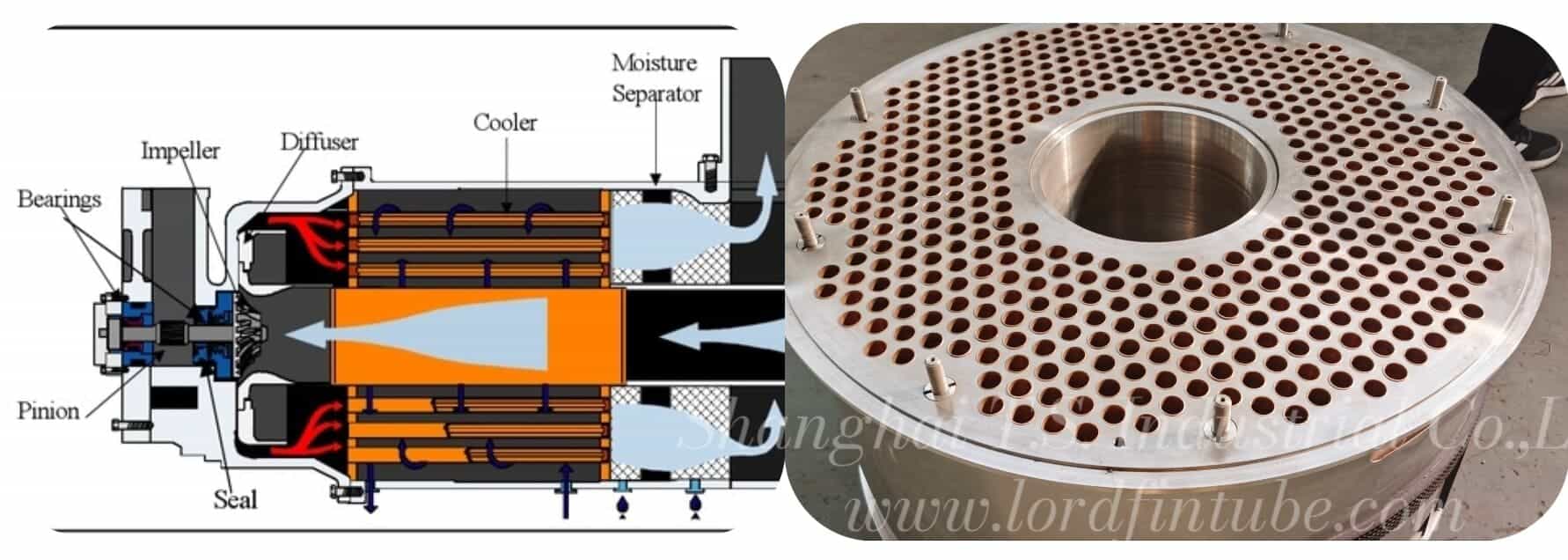

What is the Centac Cooler? Where is it installed in?
The Centac cartridge cooler is uniquely designed as a "donut type" cooler, mounted internally within the compressor casing. In this configuration, air passes through the tubes while cooling water flows over the outside of the tubes, making multiple counter passes to the airflow. This counter-flow arrangement, combined with the internal fin design and straight-through tube construction, produces the best heat transfer efficiency with the lowest possible pressure drop.
Why Internally Finned Tubes?
What truly sets Centac copper tubes apart is their internal finning—a design innovation that dramatically enhances heat exchange performance.
Traditional smooth-bore tubes often struggle to achieve adequate heat transfer within the compact space constraints of a centrifugal compressor. Internally finned tubes feature a complex internal geometry that increases the surface area in contact with the cooling medium. This design creates turbulent flow, which breaks the boundary layer of the fluid and significantly enhances the heat transfer coefficient.
Advantages of Internally Finned Tube
💧 Efficient Cooling
More efficient cooling with less water consumption. Stable discharge temperatures even in harsh climates.
⚡ Lower Pressure Drop
Lower pressure drops across the cooler, reducing strain on the compressor and extending equipment life through consistent thermal management.
As the Ingersoll Rand Centac Instruction Manual states: "The internal fin design, along with the straight through tube design, produces the best heat transfer and lowest pressure drop."
Material Options for Every Application
Not all operating environments are the same, and Centac cooler tubes are available in multiple material grades to suit specific conditions:
| Material | Best For | Key Benefits |
|---|---|---|
| Copper C12200 | Standard industrial applications | Excellent thermal conductivity, good corrosion resistance, cost-effective |
| CuNi 90/10 | Brackish or seawater cooling | Superior corrosion resistance in saline environments |
| CuNi 70/30 | Highly corrosive conditions | Maximum corrosion protection |
| Stainless Steel | Specialized applications | Enhanced durability where copper is not suitable |
For most industrial applications, C12200 copper tubes provide the optimal balance of thermal performance, durability, and cost-effectiveness.
Why Copper? – Centac Cooler Copper Tube
⚡ Thermal Conductivity
Exceptional heat transfer
Copper offers one of the highest thermal conductivity rates. Heat transfers rapidly from compressed air to cooling water, maintaining stable discharge temperatures in high-pressure compressors.
🛡️ Corrosion Resistance
Long service life
High-quality copper alloys like C12200 provide excellent corrosion resistance. CuNi 90/10 or 70/30 offer enhanced protection against brackish water and aggressive environments.
♻️ Recyclability
Sustainable choice
Copper is 100% recyclable without any loss of performance, making it an environmentally responsible choice for industrial equipment.
Maintenance and Replacement
Signs Your Copper Tubes Need Attention
- Rising discharge temperatures — indicating reduced heat transfer efficiency
- Increased energy consumption — the compressor works harder to maintain output
- Visible corrosion or tube leaks — leading to process contamination or water carry-over
- Fouling or plugging — restricting airflow and reducing cooling capacity
Leading manufacturers of replacement copper tubes offer full customization capabilities, including:
- Exact matching of OD, wall thickness, and fin density to OEM specifications
- Short production cycles with significantly shorter lead times than OEM suppliers
- Direct-fit solutions for various Centac models including C700, C400, C300, C950, C1000, and 2CV series
Explore more about Centac Cooler Copper Tube and its inner fin technology.
