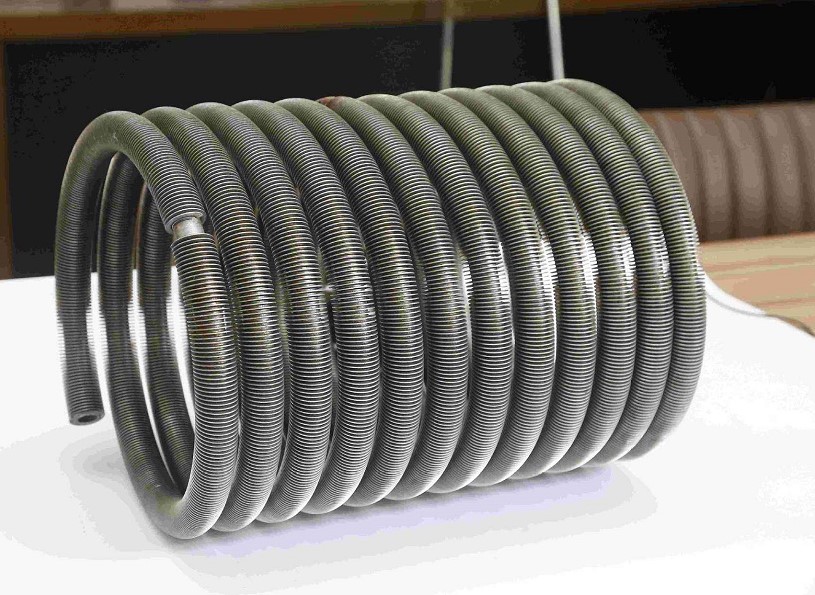

Finned tube coils for heat exchanger

What is finned tube coil?

A finned tube coil, also known as a finned tube heat exchanger or finned coil, is a type of heat transfer device commonly used in various industrial and HVAC (heating, ventilation, and air conditioning) applications. It consists of a tube with fins attached to its outer surface.

The main purpose of the finned tube coil is to enhance the heat transfer between a fluid flowing inside the tube and the surrounding air or another fluid. By increasing the surface area available for heat exchange, the fins improve the efficiency of heat transfer.

Finned tube coils offer versatility, efficiency, and compactness in heat transfer applications. Their widespread use across various industries is a testament to their effectiveness in enhancing thermal performance and energy efficiency.

Finned tube coils fin type:

Fins: The fins are thin metal plates or strips that are attached to the outer surface of the tube. They increase the surface area available for heat transfer, which enhances the overall heat exchange process. Fins can have different configurations, such as plain, serrated, louvered, or perforated, depending on the application requirements.

Materials: Fins are commonly made from materials with high thermal conductivity, such as copper, aluminum, or stainless steel. These materials allow for efficient heat transfer between the fluid in the tube and the surrounding medium. The tubes themselves are typically made of materials compatible with the specific application, such as copper, steel, or various alloys.

Finned tube coils Advantages:

Finned tube coils offer several advantages:

1. Enhanced Heat Transfer: The primary advantage is improved heat transfer efficiency. The fins increase the surface area available for heat exchange, facilitating a more effective transfer of heat between the fluid and the surrounding medium.

2. Compact Design: Finned tube coils provide a high surface area for heat transfer within a relatively compact space. This makes them suitable for applications where space is limited or where a large amount of heat transfer is required in a small footprint.

3. Temperature Control: Finned tube coils allow for precise control of temperatures in applications such as air conditioning, refrigeration, and industrial heating systems. They enable efficient heat exchange, ensuring optimal temperature regulation.

4. Versatility: Finned tube coils can be customized to meet specific project requirements. The fin type, fin density, tube material, tube diameter, and overall design can be tailored to suit the application needs, providing flexibility and compatibility with various conditions.

Finned tube coils Applications:

Finned tube coils find applications in numerous industries and systems, including:

1. HVAC Systems: They are widely used in air conditioning systems, heat pumps, and ventilation systems for both residential and commercial buildings.

2. Refrigeration Systems: Finned tube coils are commonly employed in refrigeration units, evaporators, and condensers for cooling applications.

3. Heat Exchangers: They are used in various types of heat exchangers, including shell-and-tube heat exchangers, plate heat exchangers, and finned-tube heat exchangers.

4. Industrial Processes: Finned tube coils play a crucial role in industrial processes, such as oil and gas refining, chemical processing, power generation, and food processing, where efficient heat transfer is required.

Overall, finned tube coils offer efficient heat transfer capabilities, compact design, and versatility, making them a popular choice for a wide range of applications across different industries.

Finned tube coils
