What are helical fin tubes with solid fins?

What are helical fin tubes with solid fins?

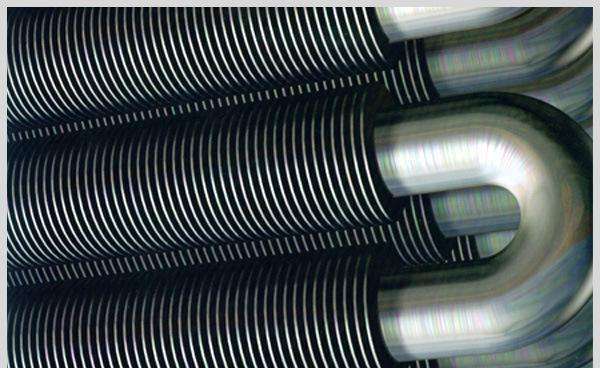

A helical fin tube with solid fins is a type of heat exchanger used for transferring heat between two fluids. The design of the heat exchanger involves a metallic tube, which is wrapped with a continuous, helical fin made of carbon steel strip or stainless steel strip.

The helical fins are wound around the tube in a spiral pattern, creating a series of channels between the fins. This design increases the surface area of the tube, which in turn enhances the heat transfer efficiency. The solid fins provide more surface area for heat transfer than perforated or serrated fins, making them more efficient.

The helical fin tube design is particularly effective in applications where space is limited because it allows for a larger surface area to be packed into a smaller space. Additionally, the helical shape of the fins promotes turbulent flow of the fluid, which enhances the heat transfer coefficient.

Helical fin tubes with solid fins are used in a variety of industries, including air conditioning, refrigeration, power generation, chemical processing, and oil and gas production. They are commonly used in applications where high heat transfer efficiency is required in a compact space.

How to produce helical fin tubes with solid fins?

Welded helical fin tubes with solid fins are a type of heat exchanger where the fins are welded to the tube. The production process for welded helical fin tubes with solid fins involves the following steps:

1. Tube preparation: The first step in the process is to prepare the thin-walled metallic tube that will serve as the core of the heat exchanger. The tube is typically made of a material such as carbon steel, alloy steel or stainless steel tube.

2. Fin preparation: The solid fins are made from a thin strip of metal or plastic. The fins are typically cut to length and then formed into a helical shape using specialized machinery.

3. Fin welding: Once the fins are formed, they are welded onto the tube using a specialized welding process. The welding process involves a continuous seam weld that is made along the length of the fin.

4. Post-welding processing: After the welding is completed, the welded helical fin tube is subjected to post-welding processing to remove any impurities or defects in the weld.

5. Inspection: The finished helical fin tube is inspected for quality and accuracy of the fin placement and welds.

6. Finishing: The final step is to finish the tube by cutting it to the desired length and adding any necessary fittings or connections.

The production of welded helical fin tubes with solid fins requires specialized equipment and skilled operators. The finished product is a highly efficient heat exchanger that is used in a wide range of industrial applications.
