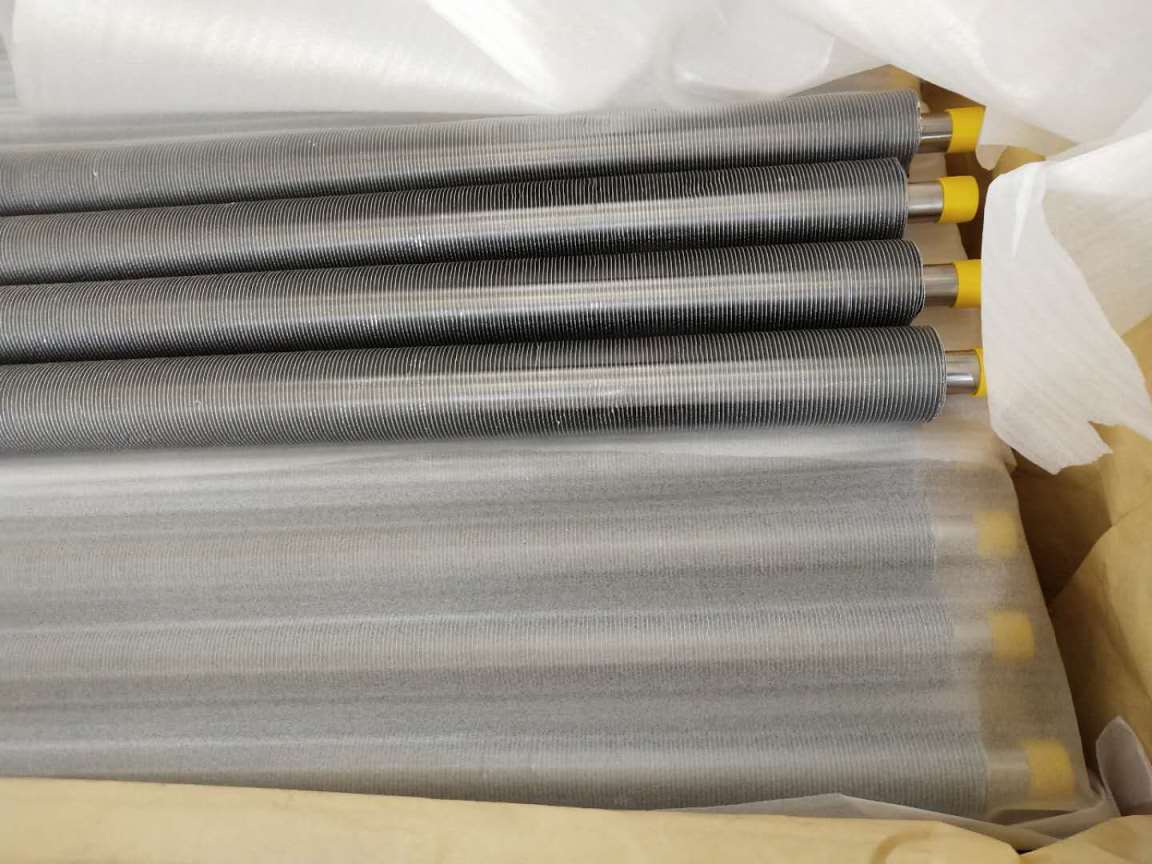

HY type fin tube also called extruded finned tube. A smooth core tube is inserted into an aluminium tube and then fins are extrudes out of the aluminium tube. Core tube extensively protected against corrosion by the aluminium sleeve.
Send Inquiry
Description
Products Description

HY Type Fin Tube|Extruded Finned Tube

HY type fin tube also called extruded finned tube. A smooth core tube is inserted into an aluminium tube and then fins are extrudes out of the aluminium tube. Advantages: Bond ot outer and inner tube removes the risk of loss of contact due to thermal stress, fins are more rigid,Core tube extensively protected against corrosion by the aluminium sleeve.

HY Type Fin Tube Material Combinations

Core Tube: Carbon steels, low-alloy steels, stainless steels, brass,copper, copper-nickel alloys, aluminium bronze, nickel-alloys,as well as exotic grades. Core tubes with extremely thin wall materials can be applied.

HY Fin Tube Exterior Tube & Fins: Generally Aluminium (different grades available)

Extruded Fin Tube DrawingHY Type Fin Tube Fields of Application:

• the petroleum, chemical and petrochemical industries

• natural gas treatment

• the steel industry: blast furnace and converter cooling systems

• power generation: steam turbine exhaust condensing

– contact condensing with cooling of circulating condensate

– fossil and nuclear power plants

• air conditioning (freon, ammonia, propane)

• incineration of household refuse

• compressor coolers, ect.

HY Type Fin Tube Manufacturing Process

A polished and deoiled base tube is set in an aluminium sleeve. The whole goes through the fin-machine wich consists of three spindles set at 120° each on bearing a stack of plates. These plates, stacked in from and diameter first build the fin, then bond the outer and inner tubes together. In certain cases (high air speed) the fins are serrated after fin process so as to increase the heat transfer coefficient.

HY Type Fin Tube Advantages

1) Thermal

The bonding of the outer and inner tubes removes the risk of loss of contact with the aluminium due to thermal stress.

Maximum operating temperature: 250° C. The transfer coeffcient remains steady. Additionally as the outer sleeve is continuous no electrolytic couple is created.

2) Mechanical

The fins are more rigid and stand the handling shocks better,compared to types „G“ an „L“.

Extruded Fin Tube Drawing

In order to forward you a promt offer we would be pleased to receive you detailed enquiry containing:

• Base tube material and quantity

• Base tube size

• Fin material

• Fin type

• Fin diameter or height

• Fin thickness

• Fins per inch, meter or fin pitch

• Lenght of plain, unfinned ends (nessesary to roll or weld the tubes into tubeplate or assembly)

HY Type Fin Tube|Extruded Finned Tube
