Industrial Heat Exchanger Design

Industrial Heat Exchanger Introduction

Industrial heat exchanger design is a multidisciplinary process that combines principles from thermodynamics, fluid mechanics, materials science, and economics. We focuses on the five core aspects that form the foundation of effective heat exchanger design and implementation.

Fundamental Principles

Understanding the basic thermodynamics and heat transfer mechanisms that govern heat exchanger performance.

Heat Exchanger Types

Overview of the most common industrial heat exchanger configurations and their applications.

Thermal & Hydraulic Design

The core engineering calculations that determine heat exchanger size and performance.

Mechanical Design

Ensuring structural integrity and compliance with industry standards and codes.

Software & Modeling Tools

Modern computational tools used for accurate design, simulation, and optimization.

1. Industrial Heat Exchanger Design Definitions

The fundamental objective of any heat exchanger is to efficiently transfer thermal energy between two or more fluids at different temperatures while keeping them physically separated.

Industrial Heat Exchanger Thermodynamic Concepts

Energy conservation forms the basis of heat exchanger design calculations:

Q = mh × Cph × (Th,in - Th,out) = mc × Cpc × (Tc,out - Tc,in)

Where:

  • Q = Heat duty or transfer rate
  • m = Mass flow rate
  • Cp = Specific heat capacity at constant pressure
  • T = Temperature

The Overall Heat Transfer Coefficient (U)

This is perhaps the most critical parameter in heat exchanger design, representing the total resistance to heat flow:

1/U = 1/hi + Rf,i + δw/kw + Rf,o + 1/ho

Where:

  • U = Overall heat transfer coefficient
  • hi, ho = Inside and outside convective heat transfer coefficients
  • Rf,i, Rf,o = Fouling resistances
  • δw/kw = Wall conduction resistance

Design Insight: Higher U-values indicate better heat exchanger performance. This can be achieved by increasing fluid velocity (improving h), using high-conductivity materials, or minimizing fouling. However, these improvements often come with trade-offs in pressure drop, material cost, or maintenance requirements.

2. Types of Heat Exchangers

Selecting the appropriate heat exchanger type is the first critical decision in the design process, as it dictates all subsequent calculations and considerations.

Shell and Tube Heat Exchangers (STHE)

The most common configuration for high-pressure applications across various industries.

Shell and Tube Heat Exchanger Diagram

Key Components:

  • Shell: The outer pressure vessel containing the tube bundle
  • Tubes: The primary heat transfer surface
  • Tubesheet: Secures the tubes in place and separates shell-side and tube-side fluids
  • Baffles: Direct shell-side flow across tubes and support the tube bundle

Common Variants:

  • Fixed Tubesheet: Economical but limited thermal expansion capability
  • U-Tube: Handles thermal expansion well but difficult to clean internally
  • Floating Head: Allows for thermal expansion and easy maintenance

Plate Heat Exchangers (PHE)

Compact, efficient exchangers consisting of corrugated plates stacked together with gaskets.

Plate Heat Exchanger Diagram

Advantages:

  • High heat transfer efficiency due to turbulent flow
  • Compact footprint with large surface area per volume
  • Easy to clean and expand capacity

Limitations:

  • Limited to moderate temperature and pressure conditions
  • Not suitable for fluids with high viscosity or particulates
  • Potential for gasket leakage

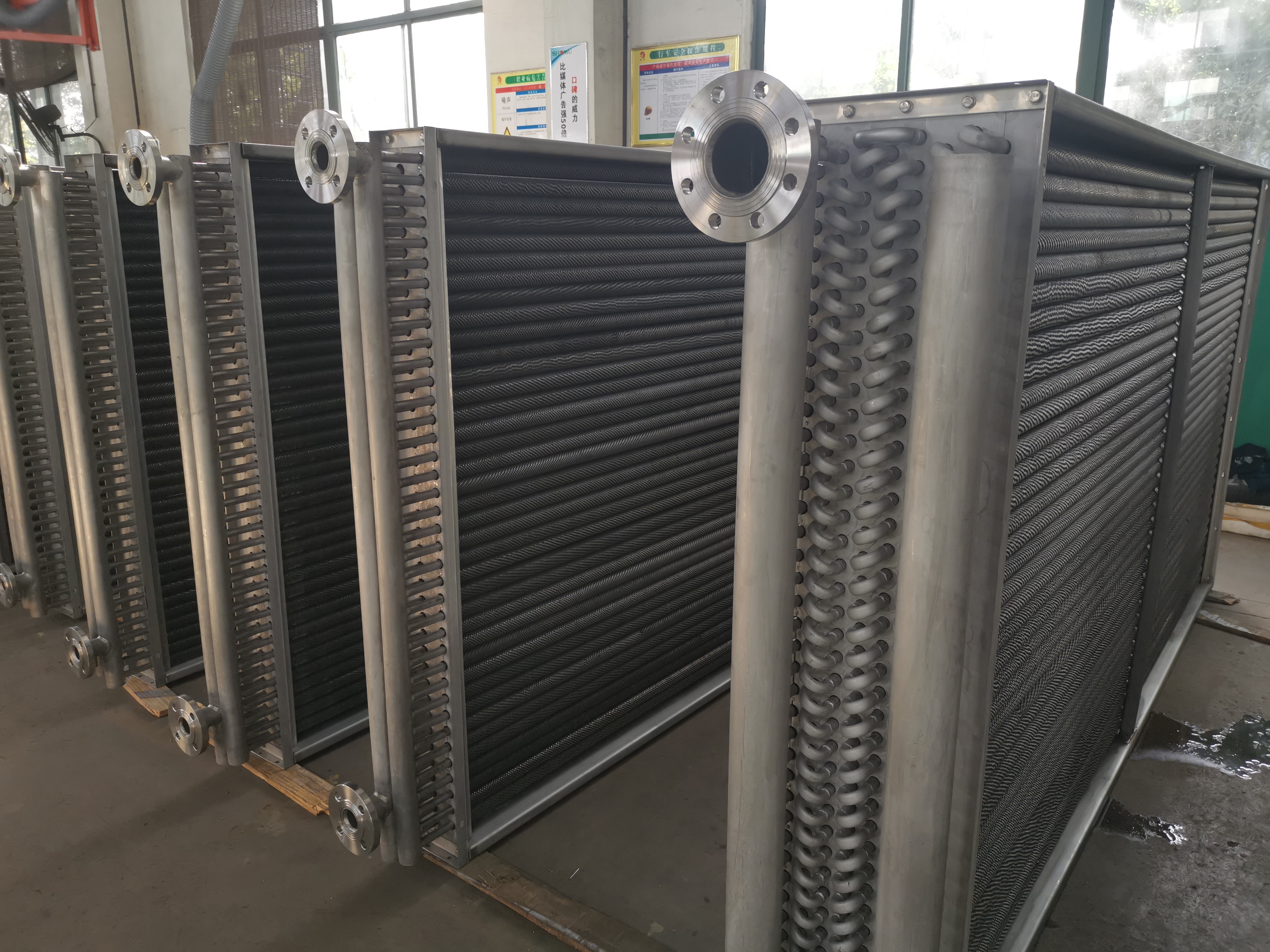

Air-Cooled Heat Exchangers (ACHE)

Use ambient air as the cooling medium, making them ideal for locations with water scarcity.

Air-Cooled Heat Exchanger Diagram

Comparison of Heat Exchanger Types:

Type Pressure Range Temperature Range Fouling Resistance Typical Applications
Shell and Tube Very High Very High Good Refineries, chemical plants, power generation
Plate Moderate Moderate Fair HVAC, food processing, low-pressure applications
Air-Cooled High High Good Power plants, compressor stations, remote locations

3. Industrial Heat Exchanger Thermal and Hydraulic Design

This phase involves the core engineering calculations to determine the heat exchanger size that meets thermal duty requirements while maintaining acceptable pressure drops.

Design Parameters

Essential information required for thermal design:

  • Fluid flow rates (mass or volumetric)
  • Inlet and outlet temperatures
  • Fluid properties (density, viscosity, specific heat, thermal conductivity)
  • Allowable pressure drops

Design Methods

LMTD Method (Log Mean Temperature Difference)

Used directly for sizing when fluid inlet and outlet temperatures are known:

Q = U × A × F × ΔTlm

Where:

  • ΔTlm = Logarithmic mean temperature difference
  • F = Correction factor for complex flow arrangements

Effectiveness-NTU Method

Used for rating existing exchangers or when outlet temperatures are unknown:

ε = f(NTU, Cr, Flow Arrangement)

Where:

  • ε = Effectiveness (actual heat transfer / maximum possible)
  • NTU = Number of Transfer Units (U×A/Cmin)
  • Cr = Heat capacity rate ratio (Cmin/Cmax)

Pressure Drop Analysis

Pressure drop calculations are crucial as they directly impact pumping costs and system feasibility:

Design Trade-off: Higher fluid velocities improve heat transfer coefficients (increasing U) but result in significantly higher pressure drops. The design process involves finding the optimal balance between heat transfer performance and pumping power requirements.

Pressure drop components include:

  • Frictional losses along flow paths
  • Local losses from contractions, expansions, and direction changes
  • Momentum changes (particularly important for gases)

4. Industrial Heat Exchanger Mechanical Design

Mechanical design ensures the heat exchanger can safely withstand operational pressures, temperatures, and environmental conditions throughout its service life.

Design Codes and Standards

Industrial heat exchangers must comply with established codes and standards:

  • ASME Boiler and Pressure Vessel Code, Section VIII: Mandatory safety requirements for pressure vessel design, materials, fabrication, and testing
  • TEMA Standards: Comprehensive mechanical design standards specifically for shell and tube heat exchangers, covering classifications (R, C, B), tolerances, and component design

Mechanical Design Considerations

Design Conditions

Design pressure and temperature are typically set higher than normal operating conditions to accommodate fluctuations and provide safety margins for upset conditions.

Materials Selection

Material choice is dictated by:

  • Fluid corrosivity
  • Operating temperature and pressure
  • Mechanical properties requirements
  • Fabricability and cost considerations

Thermal Stress Analysis

Differential thermal expansion between the shell and tubes creates significant stresses that must be addressed through:

  • Expansion joints
  • U-tube or floating head designs
  • Careful selection of materials with compatible thermal expansion coefficients

Flow-Induced Vibration Analysis

Shell-side flow across tube bundles can cause destructive vibrations through mechanisms such as:

  • Vortex shedding
  • Turbulent buffeting
  • Fluidelastic instability

Prevention strategies include:

  • Adjusting baffle type and spacing
  • Reducing unsupported tube spans
  • Modifying tube layout patterns

9. Industrial Heat Exchanger Design Software and Modeling Tools

Modern heat exchanger design relies heavily on specialized software that integrates thermal, hydraulic, and mechanical calculations with extensive component databases.

HTRI

Industry Standard for rigorous thermal and mechanical design of shell and tube, air-cooled, and plate heat exchangers.

Key Features:

  • Proprietary shell-side flow and heat transfer models
  • Integrated flow-induced vibration analysis
  • Comprehensive mechanical design checks
  • Cost estimation capabilities

Aspen EDR

Powerful suite integrated with Aspen Plus and HYSYS process simulation software.

Features:

  • Seamless data exchange with process simulations
  • Comprehensive design and rating capabilities
  • Support for multiple exchanger types
  • Optimization tools for entire process systems

Computational Fluid Dynamics (CFD)

High-fidelity, three-dimensional simulation of fluid flow and heat transfer.

Applications:

  • Diagnosing performance issues
  • Optimizing component design
  • Research and development of novel designs
  • Analyzing complex flow distributions

Software Selection: While HTRI and Aspen EDR are used for routine design and rating calculations, CFD provides detailed insights into complex flow phenomena but requires significantly more computational resources and expertise.

Industrial Heat Exchanger Design

The design of industrial heat exchangers involves a systematic approach that balances thermal performance, pressure drop, mechanical integrity, and economic considerations. The five core aspects covered in this guide—fundamental principles, exchanger types, thermal-hydraulic design, mechanical design, and software tools—form a comprehensive framework for developing efficient, reliable, and cost-effective heat transfer solutions.

Successful heat exchanger design requires iterative optimization across these domains, with modern software tools playing an indispensable role in managing the complexity of these interrelated calculations. By understanding and applying these principles, engineers can develop heat exchangers that meet specific process requirements while ensuring operational safety and reliability.
