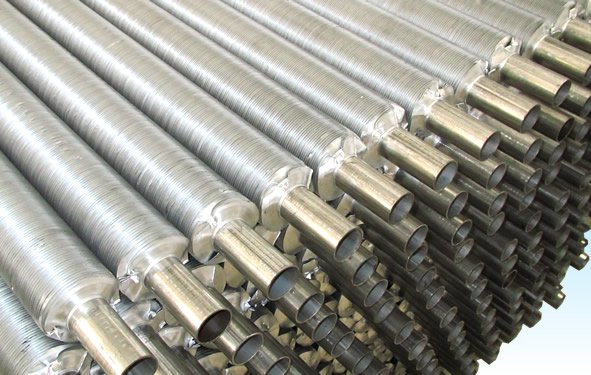

SB-111 C44300 Edge tension fins tube
What is SB-111 C44300 Edge tension fins tube?
SB-111 C44300 refers to a specific type of copper alloy tube that is commonly used in heat exchangers and other industrial applications. It is often used in applications where corrosion resistance and thermal conductivity are important factors. The "edge tension fins" likely refer to a specific design feature of the tube, where fins are attached to the edges to increase surface area for better heat transfer efficiency. These tubes are often used in HVAC systems, refrigeration units, and similar applications where efficient heat exchange is crucial.
Introduction about SB-111 C44300
This tube is made from C44300 brass alloy which is known for its excellent corrosion resistance, thermal conductivity, and high strength, which is commonly used in applications such as heat exchangers, condensers, and evaporators where high thermal conductivity and corrosion resistance are required. It is also used in the construction of various types of equipment such as boilers, chillers, and refrigeration systems.
|
Element |
Composition (%) |
|
Copper (Cu) |
78.0 - 82.0 |
|
Lead (Pb) |
0.05 max |
|
Iron (Fe) |
0.05 max |
|
Zinc (Zn) |
1.0 max |
|
Phosphorus (P) |
0.01 max |
|
Aluminum (Al) |
0.05 max |
|
Tin (Sn) |
0.05 max |
|
Others |
0.5 max |
Introduction about edge tension fins
The "edge tension fins" on the tube refer to the specific design of the fins attached to the base tube. Edge tension fins are characterized by their shape, which creates tension along the edges of the fins when they are installed on the tube. This tension enhances the heat transfer efficiency of the finned tube.
The Edge tension fins on this tube are designed to provide additional surface area for heat transfer, making it an ideal choice for applications that require efficient heat exchange. The fins also help to increase the strength of the tube, making it more durable and resistant to damage.
SB-111 C44300 Edge tension fins tube size
The SB-111 C44300 Edge tension fins tube is available in a range of sizes and lengths to meet the specific needs of different applications. It is manufactured to strict quality standards to ensure that it meets all the required specifications and performs reliably over an extended period of time.
|
SB-111 C44300 Edge tension fins tube |
||||
|
Base Tube Material |
Fin Material |
Tube Length (mm) |
Fin length (mm) |
Fin Tube Quantity (Pc) |
|
SB-111 C44300 |
Aluminum 1060 |
3048 |
3000 |
450 |
|
Base Tube O.D (mm) |
Base Tube Thickness (mm) |
Fin Height (mm) |
Fin Thk (mm) |
Fin Pitch |
|
19.05 |
1.65 |
9.53 |
0.4 |
12FPI |
|
ASTM B111 is a Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock. This specification establishes the requirements for seamless tube and ferrule stock of copper and various copper alloys up to 3 1 ⁄ 8 in. [80 mm] inclusive, in diameter, for use in surface condensers, evaporators, and heat exchangers. |
||||
SB-111 C44300 Edge tension fins tube advantage:
The base tube, made of C44300 alloy, provides the main structural component of the finned tube. Admiralty brass is chosen for its corrosion resistance, high thermal conductivity, and workability, making it suitable for heat transfer applications.
