What is square tube sheet?

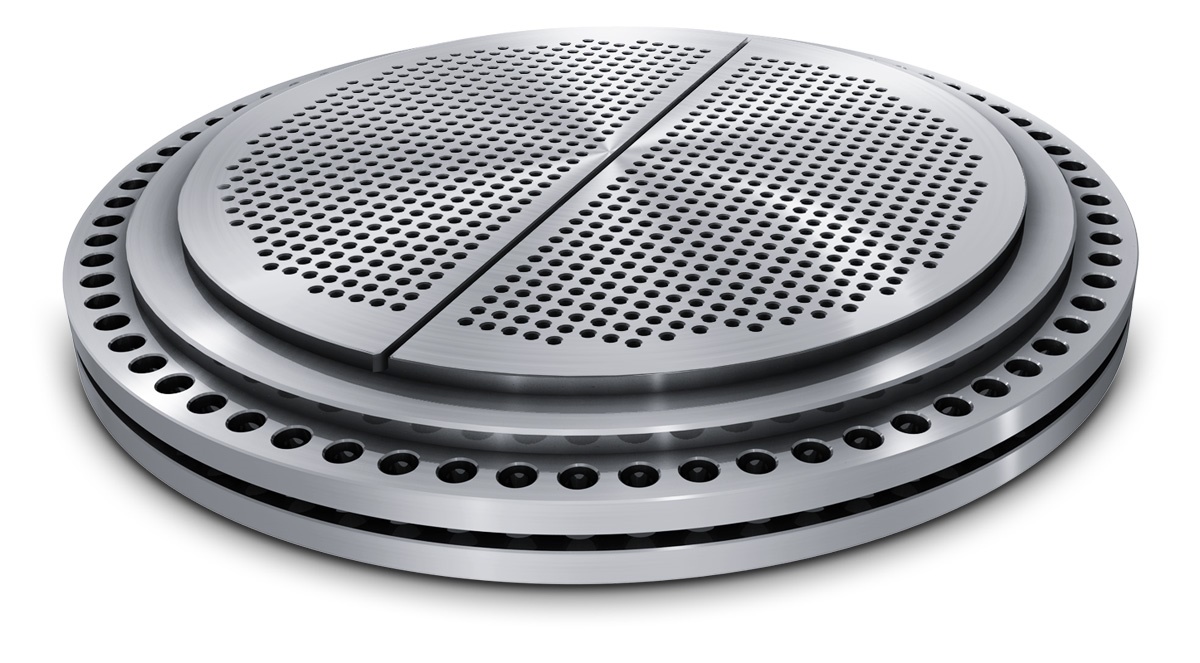

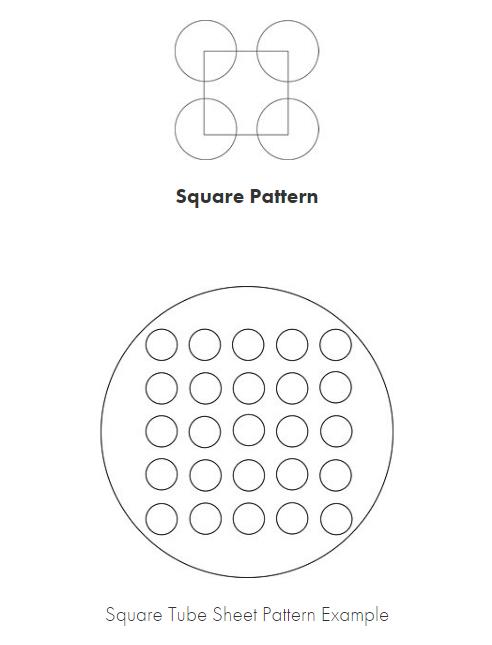

A square tube sheet refers to a component used in heat exchangers and boilers, similar to a triangular tube sheet. However, instead of a triangular pattern, it features a square or rectangular pattern of holes or tubes through which fluid flows. The square tube sheet serves as a support and sealing element for the tubes in the heat exchanger.

Square tube sheet material:

Material: The material selection for square tube sheets is similar to that of triangular tube sheets and depends on the specific application. Common materials include carbon steel, stainless steel (such as grades 304, 316, or duplex stainless steels), and copper alloys (like brass or admiralty brass).

Square tube sheet size:

Size: The size of a square tube sheet varies based on the number and size of the tubes or holes, the design pressure, and the required mechanical strength. The dimensions of the tube sheet are determined through engineering calculations and considerations, similar to triangular tube sheets.

Square tube sheet usage:

Square tube sheets are utilized in shell and tube heat exchangers, which are widely used in various industries for heat transfer between two fluids. These heat exchangers find application in processes such as chemical manufacturing, petroleum refining, power generation, HVAC systems, and more. The square tube sheet design provides structural integrity and ensures a tight seal between the tubes and the tube sheet, allowing for efficient heat transfer.

Square tube sheet advantages:

1. Enhanced heat transfer: The square tube sheet design offers improved heat transfer efficiency compared to other tube sheet designs. The square or rectangular pattern of tubes promotes turbulence and enhances fluid mixing, resulting in better heat transfer rates.

2. Mechanical strength: The square tube sheet design provides excellent mechanical strength and stability to the heat exchanger. The square shape offers robust support to the tubes, reducing the risk of tube sagging or vibration.

3. Compact design: Square tube sheets allow for a more compact heat exchanger design compared to other configurations, such as triangular or staggered tube arrangements. This can be beneficial when space is limited or when a higher surface area per unit volume is required.

4. Ease of manufacturing: Square tube sheets are relatively easier to manufacture compared to other complex tube sheet configurations. The square shape simplifies the tube insertion and welding processes, reducing manufacturing complexities and costs.
