The water wall, superheater, economizer, air preheater

The water wall, superheater, economizer, and air preheater are key components commonly found in steam power plants and industrial boilers. They play vital roles in the heat transfer process and overall efficiency of the system. Heres a brief explanation of each component:

1. What is Water Wall?

The water wall is a structure comprised of tubes that form the walls of the furnace or combustion chamber in a boiler. Its primary function is to absorb heat generated by the combustion of fuel and transfer it to the water circulating within the tubes. As hot flue gases pass over the water wall tubes, heat is transferred through conduction, resulting in the generation of steam. The water wall helps in maintaining proper temperature and pressure levels while protecting the surrounding boiler structure from the high-temperature combustion gases.

2. What is Superheater?

The superheater is a heat exchanger that is installed in the flue gas path of a boiler. Its purpose is to further increase the temperature of the steam generated in the boiler. The superheater consists of a series of tubes where the saturated steam from the water wall is exposed to additional heat. By raising the temperature of the steam above its saturation point, the superheater improves the thermal efficiency of the power plant or boiler. Superheated steam is often used in turbines to extract maximum work and improve the overall performance of the system.

3. What is Economizer?

An economizer is another heat exchanger located in the flue gas path, typically between the boiler outlet and the air preheater. Its primary function is to recover heat from the flue gases and utilize it to preheat the boiler feedwater. By transferring heat from the hot flue gases to the incoming water, the economizer reduces the energy required to raise the feedwater temperature in the boiler. This leads to improved fuel efficiency and reduced operating costs. Economizers are especially valuable in large-scale power plants where significant amounts of waste heat can be recovered.

4. What is Air Preheater?

The air preheater is a heat exchanger that preheats the combustion air before it enters the furnace or combustion chamber. It uses the heat energy from the flue gases leaving the boiler to warm up the incoming combustion air. By preheating the air, the air preheater increases the temperature of the combustion process, resulting in improved fuel efficiency and reduced fuel consumption. It also helps to minimize the formation of harmful pollutants during combustion. Air preheaters can take various forms, such as plate-type, regenerative, or rotary types, depending on the specific design and requirements of the boiler system.

These components work together to optimize the heat transfer process, improve the overall energy efficiency, and reduce the environmental impact of steam power plants and industrial boilers.

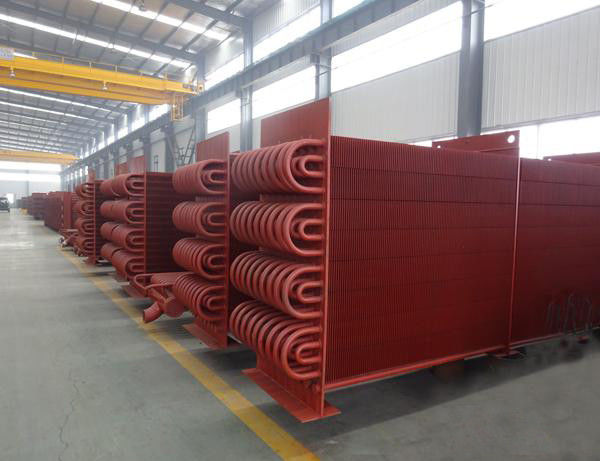

Economizer
