Water cooling jacket|Cooling water jacket
A water cooling jacket is an advanced thermal management system designed to regulate equipment temperature through controlled fluid circulation. These sophisticated heat exchange components consist of precisely engineered sleeves manufactured from high thermal conductivity materials, featuring optimized internal flow channels and specialized inlet/outlet ports for efficient heat transfer fluid circulation.
1. Fundamental Principles of Water Cooling Jacket Operation
The operational principle of water cooling jackets is rooted in fundamental thermodynamics and heat transfer physics. When equipment generates thermal energy during operation, this heat is efficiently transferred to the water cooling jacket through direct surface contact. The circulating coolant within the jackets internal channels absorbs this thermal energy through forced convection, then transports it away from the critical components.
The heated coolant exits the jacket and undergoes heat rejection through external heat exchange systems such as radiators, cooling towers, or heat exchangers. This continuous cycle maintains equipment temperatures within precise operational parameters, ensuring optimal performance and extended service life.
Thermal Performance Metrics
Modern water cooling jackets achieve heat transfer coefficients of 500-2000 W/m²K, with thermal efficiency ratings typically exceeding 85% in properly designed systems.

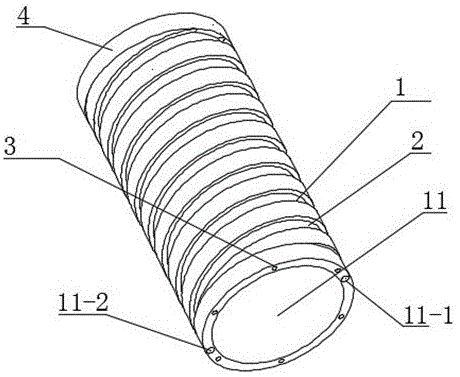

Advanced water cooling jacket design showing optimized fluid flow patterns and heat transfer surfaces
2. Water Cooling Jacket Comprehensive Component
Sleeve Structure
Manufactured from high-conductivity materials including copper alloys (380-400 W/mK), aluminum (200-240 W/mK), or specialized stainless steels (15-25 W/mK). Advanced designs incorporate composite materials and surface treatments to enhance durability and corrosion resistance.
Flow Channel Engineering
Sophisticated channel geometries including helical, serpentine, and micro-channel configurations. Computational Fluid Dynamics (CFD) optimized designs ensure maximum thermal transfer with minimal pressure drop (typically 5-15 kPa).
Connection Systems
Precision-engineered inlet/outlet ports with standardized NPT, BSPP, or quick-connect fittings. Materials selected for compatibility with industrial coolants and operating pressures up to 1000 psi.
Sealing Technology
Advanced sealing systems utilizing fluorocarbon elastomers, EPDM, or specialized polymer compounds rated for temperatures from -40°C to 200°C and chemical compatibility with various thermal fluids.
Material Performance Comparison
| Material | Thermal Conductivity (W/mK) | Corrosion Resistance | Cost Factor | Typical Applications |
|---|---|---|---|---|
| Copper C110 | 391 | Moderate | High | High-performance electronics, laser systems |
| Aluminum 6061 | 167 | Good (with treatment) | Medium | Automotive, industrial machinery |
| Stainless Steel 304 | 16.2 | Excellent | Medium-High | Chemical processing, marine applications |
| Stainless Steel 316 | 16.3 | Superior | High | Pharmaceutical, corrosive environments |
3. Advanced Finned Tube Integration in Water Cooling Jackets
The integration of finned tube technology represents a significant advancement in water cooling jacket efficiency. These specialized heat exchange elements dramatically increase the effective surface area for thermal transfer, with performance improvements of 30-70% compared to smooth-tube designs.
Performance Enhancement Data
Internal Finned Tubes (Water Side): Increase heat transfer coefficient by 40-60% through boundary layer disruption and surface area expansion. Typical fin densities range from 400-1200 fins per meter with height-to-spacing ratios optimized for specific flow regimes.
External Finned Tubes (Equipment Side): Enhance equipment-side heat absorption by 50-70% through extended surface technology. Advanced designs incorporate variable fin spacing and proprietary fin shapes to match specific thermal load profiles.
The strategic implementation of finned tubes addresses thermal resistance bottlenecks at both fluid-boundary and equipment-boundary interfaces. Internal fins optimize convective heat transfer coefficients through turbulent flow induction, while external fins maximize conductive heat capture from equipment surfaces.
Finned Tube Configuration Performance
| Configuration | Surface Area Increase | Heat Transfer Enhancement | Pressure Drop Impact | Application Recommendation |
|---|---|---|---|---|
| Internal Helical Fins | 2.0-3.5x | 40-60% | 15-25% | High viscosity fluids, laminar flow regimes |
| External Longitudinal Fins | 3.0-5.0x | 50-70% | 5-15% | Air-cooled interfaces, low convection areas |
| Integrated Micro-fins | 4.0-7.0x | 60-80% | 20-40% | Compact systems, high heat flux applications |
4. Water Cooling Jacket Industrial Applications
Water cooling jackets serve critical thermal management functions across diverse industrial sectors. Their implementation spans from precision temperature control in semiconductor manufacturing to robust heat rejection in heavy industrial machinery.
Electronics & Semiconductor
Precision temperature control (±0.5°C) for laser diodes, power electronics, and wafer processing equipment. Flow rates: 2-20 L/min, Temperature range: 15-80°C
Automotive & Aerospace
High-reliability cooling for battery systems, power converters, and avionics. Operating pressures to 500 psi, vibration resistance to 15g
Industrial Machinery
Heavy-duty thermal management for injection molding, extrusion, and metal processing. Heat removal capacity: 5-500 kW, compatible with industrial coolants
Medical & Laboratory
Precision temperature control for MRI systems, analytical instruments, and medical laser systems. Bio-compatible materials, ultra-clean manufacturing
Application-Specific Design Requirements
| Industry | Temperature Range | Pressure Requirements | Material Specifications | Regulatory Compliance |
|---|---|---|---|---|
| Semiconductor Manufacturing | 15°C to 90°C | 50-150 psi | Copper, 316L Stainless | SEMI F1-10, Cleanroom Class |
| Automotive Electronics | -40°C to 125°C | 100-300 psi | Aluminum, Coated Steel | ISO/TS 16949, Automotive Standards |
| Food & Pharmaceutical | 5°C to 130°C | 75-200 psi | 316L/304 Stainless | FDA, USP Class VI, 3-A Sanitary |
| Industrial Processing | 10°C to 200°C | 150-1000 psi | Carbon Steel, Special Alloys | ASME BPVC, PED Compliance |
5. Water Cooling Jacket Design
Successful water cooling jacket implementation requires careful consideration of multiple engineering parameters. Thermal performance must be balanced against mechanical constraints, manufacturing feasibility, and lifecycle cost considerations.
Critical Design Parameters
Thermal Analysis: Comprehensive modeling of heat flux distribution, temperature gradients, and thermal expansion compatibility. Advanced simulations incorporate conjugate heat transfer and transient thermal responses.
Fluid Dynamics: Optimization of flow distribution, pressure drop characteristics, and turbulence parameters. CFD analysis ensures uniform cooling and minimizes hot spots.
Structural Integrity: Assessment of mechanical stresses from internal pressure, thermal cycling, and external loads. Finite Element Analysis (FEA) validates design robustness.
Manufacturing & Assembly: Design for manufacturability considerations including welding accessibility, sealing surface requirements, and inspection provisions.
Engineering Support & Custom Solutions
As sophisticated thermal management solutions, water cooling jackets represent a critical technology for modern industrial and electronic applications. The integration of advanced finned tube technology further enhances their performance capabilities across diverse operating conditions.
For specialized applications requiring custom water cooling jacket designs or advanced finned tube integration, our engineering team provides comprehensive technical support and application-specific solutions.
