B171UNS NO.C71500 Circular Discs

B111UNS NO.C71500 seamless heat ex changer tubes

B111UNS NO.C71500 seamless heat ex changer tubes Material: copper and copper alloy seamless condenser tubes and ferrula stock.

B111UNS NO.C71500 seamless heat ex changer tubesMaterials acc. To B111UNS NO.C71500 .

B111UNS NO.C71500 seamless heat ex changer tubes should be seamless.

B111UNS NO.C71500 seamless heat ex changer tubes All materials shall be specified to the latest edition of ASTM / ASME specifications .

B111UNS NO.C71500 seamless heat ex changer tubes Thickness required shall be minimum wall thickness .

B111UNS NO.C71500 seamless heat ex changer tubes shall be single length not intermediate weld permitted in tubes .

B111UNS NO.C71500 seamless heat ex changer tubes All materials shall be legibly marked with the following information:-

B111UNS NO.C71500 seamless heat ex changer tubes Manufacturer ‘s brand.

ASTM / ASME designation (NO.&Gr).

Heat number .

Dimensions.

B111UNS NO.C71500 seamless heat ex changer tubes Ends of tubes to be plugged with plastic caps for protection.

Tubes should be supplied in worthy package to avoid any distortion.

Inspection certificate in accordance with EN 10204-3.1 to be supplied for materials.

Item O.D(mm) Thickness(mm) Length(mm) Quantity

1 25.4 2.1 4500 594

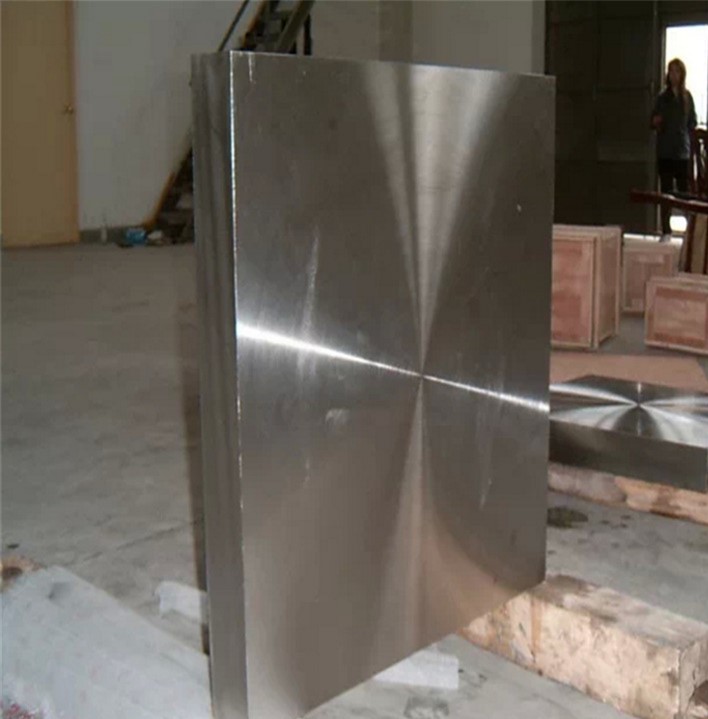

B171UNS NO.C71500 Circular Discs Description

B171UNS NO.C71500Circular Discs :Materials acc. To B171UNS NO.C71500 .

B171UNS NO.C71500Circular Discs Each disc shall be made from one continuous piece (welds are not permitted).

B171UNS NO.C71500Circular Discs Thickness required shall be minimum wall thickness .

B171UNS NO.C71500Circular The Materials shall be free of injuries defects and have smooth clean surfaces.

B171UNS NO.C71500Circular All materials shall be specified to the latest edition of ASTM / ASME specifications .

B171UNS NO.C71500Circular All materials shall be legibly marked with the following information:-

B171UNS NO.C71500Circular Manufacturer ‘s brand.

ASTM / ASME designation (NO.&Gr).

B171UNS NO.C71500 Circular Heat number .

B171UNS NO.C71500 Circular Dimensions.

B171UNS NO.C71500 Circular Discs should be supplied in worthy package to avoid any distortion.

Inspection certificate in accordance with EN 10204-3.1 to be supplied for materials.

Item Tag NO. Dimensions(mm)(O.D.XTHK) Quantity

2 Fixed tube sheet for W1 Disc Ø 1045*60 1

3 Floating tube sheet for W1 Disc Ø 980*60 1

4 Fixed tube sheet for W2 Disc Ø 1047*70 1

5 Floating tube sheet for W2 Disc Ø 981*70 1

6 Fixed tube sheet for W7 Disc Ø 685*80 1

7 Floating tube sheet for W7 Disc Ø 620*80 1

B171 UNS NO.C71500 Plates

B171 UNS NO.C71500 Description

B171 UNS NO.C71500 Materials acc. To B171 UNS NO.C71500 .

B171 UNS NO.C71500 Materials shall be specified to the latest edition of ASTM specifications .

B171 UNS NO.C71500 Plate material to conformed with requirement stated in ASTM A248 Spec.

B171 UNS NO.C71500 Permissible variation in dimensions and/or mass to be conformed with ASTM A248 Spec.

B171 UNS NO.C71500 All materials shall be legibly marked with the following information:-

B171 UNS NO.C71500 Manufacturer ‘s brand.

B171 UNS NO.C71500 ASTM designation (NO.&Gr).

B171 UNS NO.C71500 Heat number .

B171 UNS NO.C71500 Dimensions.

B171 UNS NO.C71500 Inspection certificate in accordance with EN 10204-3.1 to be supplied for materials.

Item Tag NO. Dimensions(mm) Quantity(PIECE)

8 W1 & W2 2000*3000*16 2

9 W1 & W2 1000*1000*20 2

10 W7 2000*3000*5 1
