Fin Tubes With Bend End

How to connect finned tubes?

Fin tubes with bends are specialized heat exchanger components designed to facilitate heat transfer in applications where fluid flow needs to change direction. These tubes combine the advantages of finned tubes, which provide increased surface area for enhanced heat transfer, with the flexibility to accommodate bends and turns in the system. These bends are typically designed to direct the fluid flow and optimize heat exchange efficiency.

1. Elbow connection. Elbow connection is just a connection mode of finned tube radiator, and it is also a common one. The steel elbow fin tube radiator is connected by elbow. The number of elbows is mainly determined by the number of fins. The more fins, the more they are used. The connection mode of the steel elbow fin tube radiator is reliable, the equipment is stable, and the application range is relatively wide.

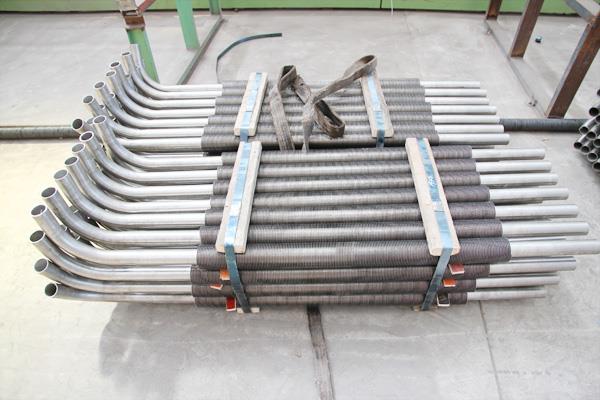

2. Bend the tube end. U bend or degree bend direct on the finned tube bare end. Bend on the finned tube can reduce the welded parts and improve the finned tube

Below is inquiry for fin tubes including tube end bending:

Solid fin tubes with bend end item A:

1.        Solid Straight Fin Tube: A213 T22, OD 50.8 x THK 3.5mm (avg.) x L 12159mm x 72pcs

Solid fin: A387 Gr.22 CL.1, OD 88.8 x ID 50.8 x THK 1.27 x pitch 6.34 (+0,-0.5)mm

2.        Solid Bend End Fin Tube: A213 T22, OD 50.8 x THK 3.5mm (avg.) x L 12208mm x 144pcs

Solid fin: A387 Gr.22 CL.1, OD 88.8 x ID 50.8 x THK 1.27 x pitch 6.34 (+0,-0.5)mm

3.        Spare Solid Straight Fin Tube: A213 T22, OD 50.8 x THK 3.5mm (avg.) x L 12208mm x 3pcs

Solid fin: A387 Gr.22 CL.1, OD 88.8 x ID 50.8 x THK 1.27 x pitch 6.34 (+0,-0.5)mm

4.        Serrated Straight Fin Tube: A213 T22, OD 50.8 x THK 3.5mm (avg.) x L 12159mm x 144pcs

Serrated fin: A387 Gr.22 CL.1, OD 88.8 x ID 50.8 x THK 1.27 x pitch 6.34 (+0,-0.5)mm

5.        Serrated Bend End Fin Tube: A213 T22, OD 50.8 x THK 3.5mm (avg.) x L 12208mm x 288pcs

Serrated fin: A387 Gr.22 CL.1, OD 88.8 x ID 50.8 x THK 1.27 x pitch 6.34 (+0,-0.5)mm

6.        Spare Serrated Straight Fin Tube: A213 T22, OD 50.8 x THK 3.5mm (avg.) x L 12208mm x 3pcs

Serrated fin: A387 Gr.22 CL.1, OD 88.8 x ID 50.8 x THK 1.27 x pitch 6.34 (+0,-0.5)mm

Serrated fin tubes with bend end item B:

1.        Serrated Straight Fin Tube: A178 Gr.A, OD 50.8 x THK 3.2mm (avg.) x L 12194mm x 144pcs

Serrated fin: SPCC, OD 98.8 x ID 50.8 x THK 1.27 (avg.) x pitch 4.23 (+0,-0.5)mm

2.        Serrated Bend End Fin Tube: A178 Gr.A, OD 50.8 x THK 3.2mm (avg.) x L 12243mm x 264pcs

Serrated fin: SPCC, OD 98.8 x ID 50.8 x THK 1.27 (avg.) x pitch 4.23 (+0,-0.5)mm

3.        Spare Serrated Straight Fin Tube: A178 Gr.A, OD 50.8 x THK 3.2mm (avg.) x L 12243mm x 3pcs

Serrated fin: SPCC, OD 98.8 x ID 50.8 x THK 1.27 (avg.) x pitch 4.23 (+0,-0.5)mm

Serrated fin tubes with bend end item C:

1.        Serrated Straight Fin Tube: A178 Gr.A, OD 50.8 x THK 3.2mm (avg.) x L 12194mm x 120pcs

Serrated fin: SPCC, OD 98.8 x ID 50.8 x THK 1.27 (avg.) x pitch 4.23 (+0,-0.5)mm

2.        Serrated Bend End Fin Tube: A178 Gr.A, OD 50.8 x THK 3.2mm (avg.) x L 12243mm x 192pcs

Serrated fin: SPCC, OD 98.8 x ID 50.8 x THK 1.27 (avg.) x pitch 4.23 (+0,-0.5)mm

3.        Spare Serrated Straight Fin Tube: A178 Gr.A, OD 50.8 x THK 3.2mm (avg.) x L 12243mm x 3pcs

Serrated fin: SPCC, OD 98.8 x ID 50.8 x THK 1.27 (avg.) x pitch 4.23 (+0,-0.5)mm
