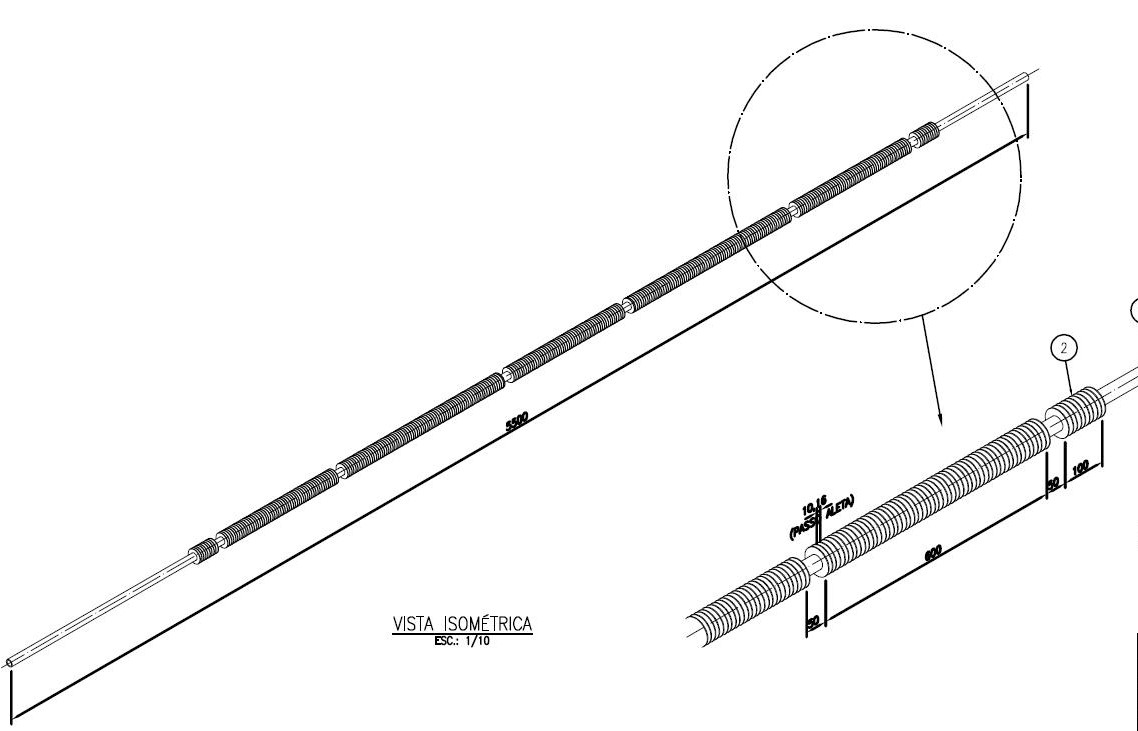

H.F. Welded Segmented Fins Tube specific as follow: Stainless Segmented Fins Tube
Bare Tube ASME SA312 TP316L OD 3.5" x WT 0.3" x L 4000 mm
Fin material SS316, thickness 1.5mm, height 19mm, 5FPI
|TUBE INFORMATION||FIN INFORMATION|
|ITEM||9COM||Description||OD (in)||Thickness (in. / BWG)||Material||Welded or Seamless||Minimum Length (mm)||Fins/in.||Fin Height (in.)||Thickness (in.)||Material||Welded or Seamless||Spare Percentage||Quantity (1 Train)
(Without Spare) (PCS)
|Quantity (3 Trains)
(Including Spare) (PCS)
|1||6000000038||Superheater Pipe W/ 180 Degree Return Bend||3.5||0.3 / 1||SA-312 TP316||Seamless||4000||5||0.75||0.059||316ss||H.F. WELDED SEGMENTED FINS||5%||80||252|
|2||6000000038||Superheater Pipe||3.5||0.3 / 1||SA-312 TP316||Seamless||4000||5||0.75||0.059||316ss||H.F. WELDED SEGMENTED FINS||5%||80||252|
2 The substitution of materials or grades for those included in this specification is not allowed.
4 All materials shall be new, smooth, and supplied to a workmanlike finish.
5 All material test records (MTR’s) shall be supplied in the form of test certificates according to EN 10204:2004.
6 All material test records shall be type 3.1 minimum.
7 All material to be delivered on FOB nearest international port.
8 All materials must be packed for Ocean transport by container.
9 Vendor shall manufacturer all componets at the address approved on the Saudi Aramco 9COM
Information to be provided with vendor quotation:
1 Spreadsheet filled in with vendor price.
2 Delivery Period in "weeks after reciept of free issue tubes".
3 Delivery point / Incoterm / Port of Export
4 Sample MTR
