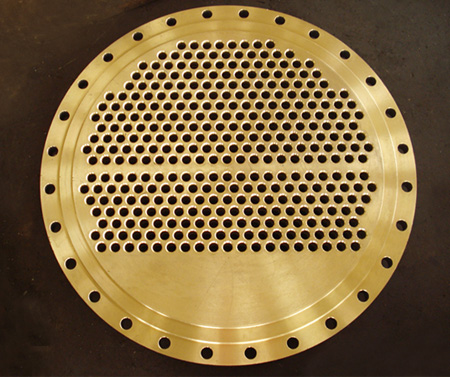

Explosioni Bonded B171 Copper Clad Plate ASME SB432 Production Code
Quick Product Details:
Cladding material thickness: 10mm
Base material thickness: 120mm
Size: (10+120)*OD970mm
Production Code: ASTM B432, ASME SB432
Table for available type of Copper (Naval Brass) clad plates:
|
Product Names:
|
Copper (Naval Brass) Clad Plate/Sheet, Copper (Naval Brass) Clad Tube Sheet/ Tube Plate
|
|||
|
Production Codes:
|
ASTM B432, ASME SB432, DIN , BS, JIS, GB/T, ISO, etc.
|
|||
|
Copper Grades:
|
C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc.
|
|||
|
Form
|
Description
|
Base Layer
|
Base Layer Grade
|
Maximum Size
|
|
Clad Plate
|
Copper (Naval Brass) / Carbon Steel Clad
|
Carbon steel plate and forging
|
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.
|
(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)
|
|
Copper (Naval Brass)/ Stainless Steel (Duplex) Clad
|
Duplex, Stainless Steel & their forgings
|
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.
|
(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)
|
|
|
Titanium / Copper (Naval Brass) Clad
|
Titanium
|
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12
|
(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000)
|
|
|
Copper (Naval Brass)/ Aluminum Clad
|
Aluminum
|
A1050, A1060, A1070, A1100, A5052, etc.
|
(1.5~14)/(6~50) x W(max W 1500) x L (max L 1500)
|
|
|
Copper (Naval Brass)/ Nickel Clad
|
Nickel and its alloy
|
N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc
|
(1.5~14)/(6~50) x W(max W 2000) x L (max L 5000)
|
|
|
Copper (Naval Brass)/ Carbon Steel / Copper Clad
|
Carbon steel plate and forging
|
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.
|
(1.5~14)/(6~200)/(1~10) x W(max W 3000) x L(max L 4000)
|
|
|
Copper / Titanium / Copper Clad
|
Titanium
|
ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12
|
(1.5~14)/(2~100) x W(max W 2100) x L(max L 4000)
|
|
|
Copper (Naval Brass)/ Carbon Steel / Stainless Steel Clad
|
Carbon steel plate and forging
|
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.
|
(1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 4000)
|
|
|
Duplex, Stainless Steel & their forgings
|
304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.
|
|||
|
Aluminum / Copper / Carbon Steel Clad
|
Aluminum
|
A1050, A1060, A1070, A1100, A5052, etc.
|
(1.5~40)/(1-5)/(8~200) x W(max W 1000) x L(max L 1000)
|
|
|
Carbon steel plate and forging
|
SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.
|
|||
|
Aluminum / Copper (Naval Brass)/ Aluminum Clad
|
Aluminum
|
A1050, A1060, A1070, A1100, A5052, etc.
|
(1.5~40)/(1-5)/(1~100) x W(max W 1000) x L(max L 1000)
|
|
B171 Copper Clad Plate Description:
Explosion welding is a solid state joining process in which explosive energy is used to propel the component metal parts together to form a metallurgical bond. At the point of impact of the two components, a thin layer is stripped from both colliding surfaces and is ejected as a molten metal jet. This jet contains the surface contaminants and oxides that would otherwise prevent bonding. The two surfaces are in intimate contact under extreme pressure enabling the bond to be formed.
