Finned Tubing for Boiler Systems
Finned Tubing for Boilers: Heat Transfer Fundamentals
Modern boiler systems must achieve higher thermal efficiency while occupying less floor space. The fundamental obstacle in heat exchanger design is the gas-side thermal resistance — conventional bare tubes simply cannot provide sufficient surface area for effective energy recovery. This is where Finned tubing for boilers becomes an indispensable engineering solution.
By attaching precisely engineered metallic fins to the primary tube surface, the effective heat transfer area multiplies dramatically. The underlying physics is straightforward: fins act as extended surfaces that intercept hot flue gases and conduct thermal energy toward the tube wall, where it transfers to the internal working fluid. However, practical implementation demands careful trade-offs among material properties, fin geometry, and operating conditions.
Surface Area Multiplier Effect
A standard 2-inch bare tube offers roughly 0.5 square feet of external surface per linear foot. With optimized finning, this figure rises to 3–10 square feet per linear foot — a 6‑ to 20‑fold enhancement that directly improves heat recovery and reduces fuel consumption. This multiplier effect is what makes finned tubing so valuable in high-performance boiler designs.
Thermal Pathway and Efficiency
The thermal energy transfer in finned boiler tubes follows a three-stage path. First, convection carries heat from flue gases to the fin surface. Second, conduction moves this energy through the fin material toward the tube wall. Third, conduction through the tube wall transfers heat to the internal fluid (water, steam, or thermal oil). Each stage introduces resistance, and the overall performance depends on optimizing all three.
Fin Efficiency (ηf) is the ratio of actual heat transfer from a fin to the heat that would be transferred if the entire fin were at base tube temperature. This efficiency declines with taller fins, lower material conductivity, and higher convective coefficients. For boiler applications, typical fin efficiencies range from 60 % to 95 %. Understanding this parameter is essential when selecting fin geometries for specific duty conditions.
Which factors influence fin efficiency most significantly? Fin height, thickness, and material thermal conductivity are the primary variables. In high-temperature superheater sections, designers often choose stainless steel or nickel alloys to maintain adequate conductivity at elevated temperatures, even though these materials cost more than carbon steel.
Performance Comparison: Finned vs. Bare Tubes
| Parameter | Bare Tubes | Finned Tubes | Improvement Factor |
|---|---|---|---|
| Surface Area per Linear Foot | 0.3 – 0.6 ft² | 2.5 – 12 ft² | 5× – 20× |
| Gas-side Heat Transfer Coefficient (Effective) | 15 – 50 W/m²·K | 80 – 200 W/m²·K | 3× – 5× |
| Tube Length Required for Same Duty | 100 % (Baseline) | 20 % – 40 % | 60 % – 80 % Reduction |
| Equipment Footprint | 100 % (Baseline) | 30 % – 60 % | 40 % – 70 % Reduction |
How does this translate to real-world savings? A typical industrial boiler retrofitted with finned tubing can recover an additional 4–8 % of flue gas waste heat, directly reducing fuel expenses and carbon emissions. For large-scale power plants, this improvement can represent millions of dollars in annual fuel savings.
Finned Tubing for Boilers: Manufacturing Processes
The performance and longevity of finned tubing depend heavily on the manufacturing method. Each production technique offers distinct advantages in terms of bond integrity, material compatibility, and cost-effectiveness. Understanding these processes helps procurement engineers specify the right product for their boiler section.
Primary Production Techniques
High-Frequency Welding (HFW)
The dominant method for carbon and low-alloy steel finned tubes. A continuous metal strip is fed and welded to the base tube using HF current (200–400 kHz). Achieves weld penetration of 85–95 % with minimal thermal distortion. Production speeds range from 20 to 60 feet per minute, depending on tube diameter and fin density. HFW tubes offer excellent mechanical strength and thermal contact, making them the first choice for economizers and evaporators.
Integral Extrusion
Forms fins directly from the tube wall material through cold or hot working. This creates a monolithic structure with no thermal contact resistance whatsoever — the fin and tube are one continuous piece of metal. Integral extrusion is particularly suited for high-pressure superheaters and reheaters where material integrity under creep conditions is paramount. However, it is limited to certain alloys and tube dimensions.
Tension-Wrapped L-Foot
A mechanical attachment method where an "L"‑shaped fin foot grips the tube under tension. This technique is preferred for materials difficult to weld (such as aluminum-clad tubes) or when field modification might be necessary. The thermal efficiency is slightly lower than welded or extruded designs due to contact resistance, but the flexibility and replaceability make it attractive for certain air preheater applications.
Which manufacturing method should you choose? The decision depends on operating temperature, pressure, fouling tendency, and maintenance strategy. HFW offers the best balance of cost and performance for most boiler sections. Integral extrusion is the premium choice for the most demanding high-temperature zones. Tension-wrapped L‑foot provides unique advantages for corrosive or abrasive environments where tube replacement is frequent.
Material Selection by Boiler Section
Recommended Material-Fin Combinations
| Boiler Section | Temperature Range | Primary Material Choices | Fin Type Preference |
|---|---|---|---|
| Economizer | 150 °C – 350 °C | Carbon Steel (SA178A), Low-Temp CS | HFW, Serrated for cleanability |
| Air Preheater | 80 °C – 300 °C | Corten Steel, Enamel-Coated CS | HFW, L‑Foot for replaceability |
| Evaporator | 200 °C – 400 °C | Carbon Steel, T11/T22 Alloy | HFW, Solid fins |
| Superheater | 400 °C – 600 °C | T91, TP304H, TP347H | Integral, HFW with full penetration |
Why does material selection matter so much? In superheater sections, oxidation and creep become dominant failure modes. Using stainless steel or high-chromium alloys extends tube life by years compared to carbon steel. Conversely, in the economizer, where temperatures are moderate and corrosion is less aggressive, carbon steel offers the best cost-to-performance ratio.
Finned Tubing for Boilers: Application Areas
Finned tubing is not a one-size-fits-all solution. Different boiler sections impose vastly different thermal, mechanical, and chemical demands. The following breakdown explains how finned tubing performs in each critical zone.
Economizer Sections
In economizers, finned tubing recovers residual heat from flue gases to preheat boiler feedwater. Typical configurations use carbon steel tubes with 3–5 fins per inch, achieving pinch point differences as low as 15–25 °C. This alone can boost overall boiler efficiency by 4–8 %, depending on inlet water temperature and final flue gas temperature. The relatively low temperatures and clean gas environment make this an ideal application for high-density HFW finned tubes.
Air Preheaters
The air preheater represents one of the most challenging applications for Finned tubing for boilers. Here, the goal is to transfer heat from flue gas to combustion air — a gas‑to‑gas exchange that demands extensive surface area. Regenerative and recuperative designs both employ finned tubes to achieve temperature crossovers that are impossible with bare tubes. Cold end protection against acid condensation often requires specialized coatings, enamel, or corrosion-resistant alloys.
Design Tip: For coal‑fired applications with high ash content, consider wider fin spacing (2–3 FPI) and integrated sootblower lanes to prevent fouling. For cleaner natural gas firing, higher density fins (5–8 FPI) maximize compactness and heat recovery.
How does fin geometry affect air preheater performance? In fouling environments, wider fin spacing reduces the risk of ash bridging and makes cleaning easier. In clean gas applications, tighter spacing extracts more heat but increases pressure drop. The optimal design balances these competing factors.
Waste Heat Recovery Units (HRSG)
In heat recovery steam generators (HRSGs) following gas turbines, finned tubes enable compact, multi‑pressure level designs within space‑constrained exhaust ducts. The modular nature of finned tube bundles allows different fin geometries and materials across various temperature zones — stainless steels in higher temperature sections, carbon steel in lower zones. This zoning approach optimizes both cost and performance across the entire HRSG.

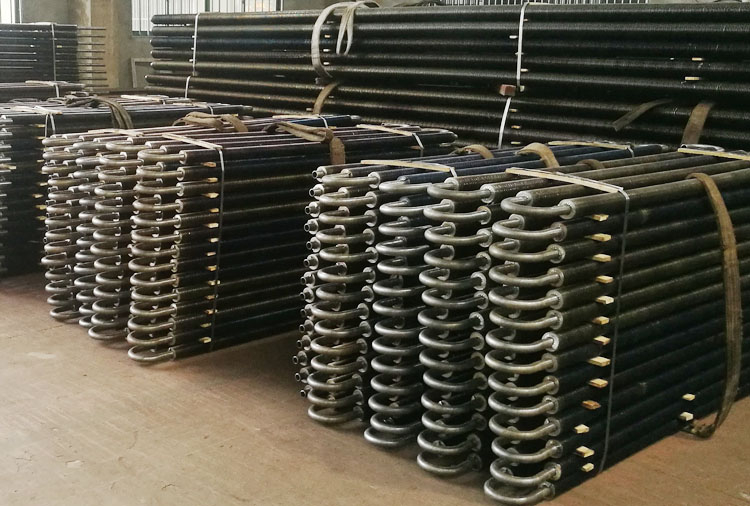

Typical arrangement of finned tube bundles within industrial boiler heat recovery sections
Which boiler sections benefit most from finned tubing? Economizers and air preheaters see the greatest absolute gains because they involve gas‑side heat transfer where surface area is the dominant limitation. Superheaters and evaporators also benefit, though tube-side boiling and high temperatures introduce additional constraints.
Finned Tubing for Boilers: Design Parameters
Effective design of finned tubing requires careful selection of geometric parameters that influence heat transfer, pressure drop, fouling tendency, and mechanical integrity. The following parameters are the most critical for boiler applications.
Geometric Parameters
- Fin Density: Measured in fins per inch (FPI). Lower density (2–3 FPI) is recommended for fouling gases (coal, biomass), while higher density (5–11 FPI) suits clean applications (natural gas, distillate oil). The choice directly impacts both heat transfer and cleaning frequency.
- Fin Height: Typically ranges from 0.5″ to 1.5″. Taller fins increase surface area but reduce fin efficiency. The optimal fin‑height‑to‑tube‑OD ratio generally falls between 0.4 and 0.8. Exceeding this range yields diminishing returns in heat transfer while increasing material cost and weight.
- Fin Thickness: Varies from 0.035″ to 0.125″. Thicker fins improve durability and heat conduction but add weight and cost. In erosive environments (coal‑fired boilers), thicker fins are often justified to extend service life.
- Tube Layout: Staggered tube arrangements typically provide 20–30 % better heat transfer than in‑line layouts, though at the expense of higher gas‑side pressure drop. The choice depends on the available fan power and allowable pressure loss.
What is the relationship between fin density and pressure drop? Higher FPI increases surface area but also constricts gas flow, raising pressure drop by roughly 2–4 times compared to bare tubes. Typical design targets for gas‑side pressure drop range from 2 to 8 inches of water column, depending on the application. Exceeding this range may require upgrading fans or accepting reduced throughput.
Solid Fins vs. Serrated Fins
Solid fins offer maximum surface area and are ideal for clean gas streams. Serrated (segmented) fins break the boundary layer more effectively, enhancing heat transfer in turbulent flow regimes. Which one performs better for biomass boilers? Serrated fins often show 10–15 % higher heat transfer coefficients in fouling services, though they are more prone to mechanical damage during cleaning. The trade-off typically favors serrated fins when gas-side fouling is moderate.
Fouling Management Strategies
| Fouling Type | Common Sources | Preventive Design Features | Cleaning Methods |
|---|---|---|---|
| Particulate | Ash, Soot, Dust | Wider fin spacing, Straight gas lanes, Abrasion‑resistant materials | Sootblowers, Mechanical rapping, Water washing |
| Chemical Deposit | Alkali Sulfates, Vanadium | Surface treatments, Appropriate material selection, Temperature control | Chemical cleaning, Thermal shocking |
| Corrosion Product | Oxide scales, Rust | Corrosion‑resistant alloys, Protective coatings, Dew point avoidance | Acid cleaning, Mechanical removal |
Pressure Drop Considerations
While finned tubes dramatically improve heat transfer, they also increase gas‑side pressure drop by 2–4 times compared to bare tube arrangements. Optimal design balances enhanced heat recovery against increased fan power consumption. Typical target pressure drops range from 2 to 8 inches of water column depending on application. For high‑fouling services, designers often accept a higher pressure drop in exchange for better cleanability and longer run lengths between cleaning cycles.
For comprehensive design calculations and performance optimization, Finned tubing for boilers requires careful attention to the interaction between fin geometry, gas velocity, and fouling characteristics. Advanced simulation tools now enable engineers to predict performance with high accuracy, reducing the need for costly prototype testing.
Finned Tubing for Boilers: Procurement Standards
Specifying finned tubing for boiler systems demands clear documentation of materials, dimensions, and performance expectations. The following guidelines help procurement engineers create comprehensive specifications that ensure product quality and reliability.
Key Parameters for Specification Sheets
- Base Tube: Material grade, outside diameter, wall thickness, length, and dimensional tolerances. Reference applicable ASTM/ASME specifications.
- Fin Specifications: Material, height, thickness, fins per inch (FPI), attachment method (HFW, extrusion, or L‑foot), and any special coatings.
- Performance Guarantees: Heat transfer duty (kW or Btu/hr), gas‑side pressure drop, fin efficiency, and overall heat transfer coefficient.
- Testing Requirements: Hydrostatic test pressure, non‑destructive examination (NDE) methods, and weld integrity criteria.
- Surface Treatment: Cleaning, painting, coating specifications, and any corrosion protection measures.
Quality Verification Checklist
Dimensional Checks
Verify fin height (±0.010″), thickness, spacing consistency, and bond integrity. Sample destructive testing to confirm weld penetration exceeds 85 % for HFW tubes. Ensure that fin density and height match the specified values across the entire bundle.
Material Certification
Review mill test certificates for both tube and fin materials. Confirm compliance with ASTM/ASME specifications and heat code traceability. For critical applications, request independent third‑party testing of material composition and mechanical properties.
Performance Validation
Request thermal performance calculations based on actual geometry. For critical installations, consider prototype testing or review historical performance data from similar applications. Validate that the manufacturers design tools and assumptions align with your operating conditions.
Industry Standards Reference: Key standards governing Finned tubing for boilers include ASME PTC 4.3 (Air Heaters), HEI Standards for Closed Feedwater Heaters, and ASTM A498 for integrally finned tubes. Always verify that the manufacturers quality system complies with ISO 9001 or equivalent standards.
How can buyers verify the quality of finned tubing before delivery? In addition to dimensional and material checks, request witness testing of weld integrity and hydrostatic pressure. For high‑temperature applications, ask for creep and oxidation test data that demonstrates long‑term performance at design conditions.
Which documentation should accompany each shipment? A complete quality dossier should include material certificates, dimensional inspection reports, weld test records, hydrostatic test results, and a certificate of conformance. This documentation provides traceability and confidence that the product meets all specified requirements.
