Copper Embedded Finned Tube

What is copper embedded finned tube? An embedded copper finned tube is a type of heat exchanger commonly used in various industrial and commercial applications.

Description

What is copper embedded finned tube?

An copper embedded finned tube is a type of heat exchanger commonly used in various industrial and commercial applications. It consists of a copper tube with fins attached to the outer surface, which increases the heat transfer surface area and improves the efficiency of the heat transfer process.

The copper embedded finned tube design refers to the way the fins are attached to the tube. In this design, the fins are pressed or rolled into grooves on the outer surface of the tube, creating a secure and strong bond between the tube and the fins. This design also allows for easy cleaning and maintenance of the heat exchanger.

Copper is a popular material for embedded finned tubes because it has excellent thermal conductivity, which means it can transfer heat quickly and efficiently. It is also resistant to corrosion and has good mechanical properties, making it ideal for use in harsh environments.

The embedded copper strip to the tube design refers to the way the strip is attached to the tube. In this design, the copper strip is tightly wrapped around the tube and soldered or brazed to create a strong and durable bond. The copper strip is typically corrugated to increase the surface area even further, which enhances the heat transfer efficiency.

Copper embedded finned tubes are commonly used in applications such as air conditioning and refrigeration systems, heat pumps, and industrial process heating and cooling. They offer high heat transfer efficiency, compact size, and durability, making them a preferred choice over other types of heat exchangers.

Copper embedded finned tube typical size

Copper Embedded Finned Tube

Base Tube Material

Fin Material

Tube Length (mm)

Fin length  (mm)

Fin Tube Quantity (Pc)

ASTM A179

Copper

9144

9040

740

Base Tube O.D (mm)

Base Tube Thickness  (mm)

Fin Height (mm)

Fin Thickness  (mm)

Fin Pitch  (mm)

25.4

3.04

15.88

0.4

2.54

ASTM A179 is standard Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes

Why embedded copper strip to the tube

Embedded copper strips are sometimes used in tubes to improve heat transfer efficiency. Copper is a good conductor of heat, and embedding a copper strip in the wall of a tube can provide a more direct thermal path for heat transfer to occur between the fluid inside the tube and the outside environment.\

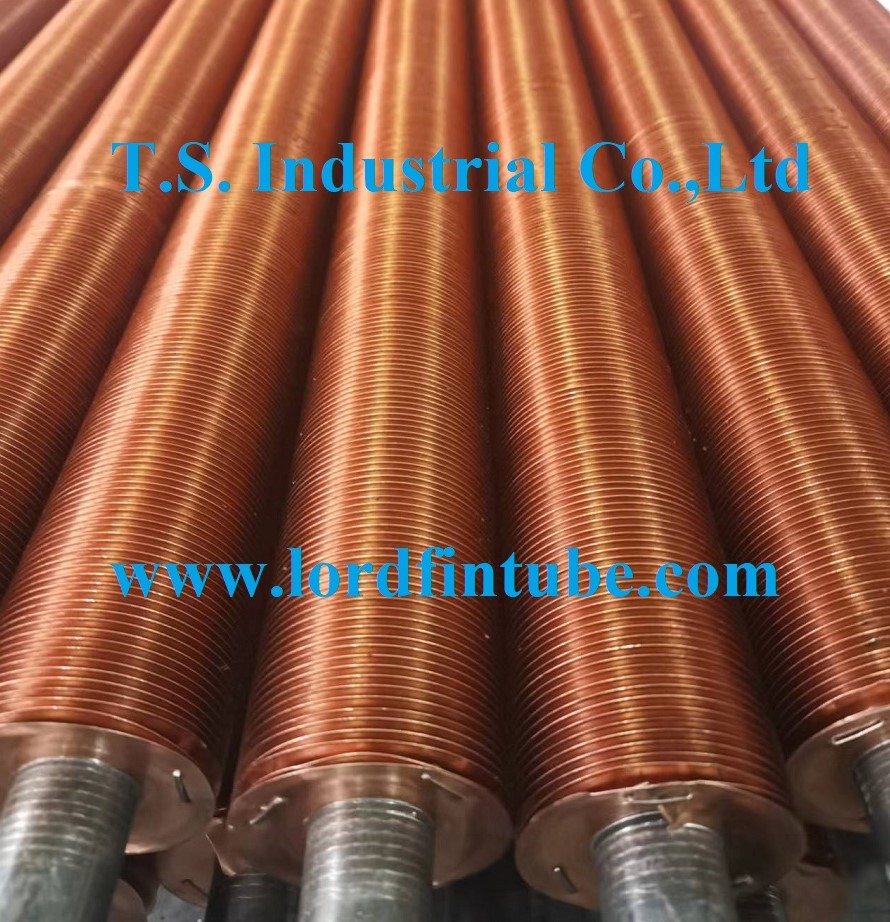

Embedded Copper Finned Tube

Copper embedded finned tube|Finned copper tube

How to produce copper embedded finned tube?
