What Are Copper Tube U-Bends?
A copper tube U-bend is a precision-engineered component shaped into a 180-degree curve, designed to optimize fluid flow and heat transfer in systems like HVAC, refrigeration, and industrial heat exchangers. Made from high-grade copper, these U-bends are manufactured using advanced CNC bending technology to ensure structural integrity and leak-proof performance.
High-precision copper U-bends for industrial applications
Why Copper is the Optimal Choice for U-Bend Applications
Coppers exceptional material properties make it the preferred choice for U-bend manufacturing across multiple industries:
Key Material Advantages
Thermal Conductivity
401 W/m·K
20x faster heat transfer than stainless steel
Corrosion Resistance
Excellent
Ideal for harsh marine and chemical environments
Recyclability
100%
Fully recyclable, supporting LEED certification
Melting Point
1,085°C
High-temperature stability for demanding applications
Material Comparison: Copper vs. Alternative Materials
| Property | Copper | Stainless Steel | Aluminum | Carbon Steel |
|---|---|---|---|---|
| Thermal Conductivity (W/m·K) | 401 | 16 | 205 | 54 |
| Corrosion Resistance | Excellent | Good | Good | Poor |
| Cost Efficiency (per meter) | High | Medium | Low | Low |
| Lifespan (years) | 50+ | 30-40 | 20-30 | 15-25 |
| Maintenance Requirements | Low | Medium | Medium | High |
Industrial Applications of Copper Tube U-Bends
Market Data & Industry Usage
The global copper tube market is projected to reach $35.2 billion by 2027, with U-bend applications accounting for approximately 28% of this market. The HVAC sector alone consumes over 45% of all copper U-bends produced globally.
-
HVAC Systems
Used in condensers and evaporators for efficient temperature control. Copper U-bends improve system efficiency by 15-20% compared to alternative materials.
- Commercial air conditioning units
- Heat pump systems
- Chiller units
-
Refrigeration Systems
Critical for supermarket chillers and cold storage units. Coppers thermal properties reduce energy consumption by up to 25% in commercial refrigeration.
- Commercial refrigeration racks
- Walk-in coolers and freezers
- Industrial cold storage facilities
-
Automotive Cooling Systems
Enhances radiator efficiency in electric and combustion engines. Copper U-bends withstand operating pressures up to 800 psi in automotive applications.
- Radiator assemblies
- Transmission coolers
- EV battery thermal management
-
Industrial Heat Exchangers
Deployed in power plants and oil refineries for high-temperature operations. Copper U-bends maintain integrity at temperatures up to 300°C.
- Shell and tube heat exchangers
- Power plant condensers
- Chemical processing equipment
Copper Tube U-Bends Manufacturing Standards
Standard Copper U-Bend Specifications
Standard Diameters
3/8" to 2"
Custom sizes available up to 4"
Wall Thickness
0.025" to 0.083"
Varies by application requirements
Bending Radius
1.5D to 5D
D = tube outer diameter
Surface Finish
Bare/Annealed
Optional protective coatings available
Trends for Copper U-Bend
Industry Innovation Highlights
The copper U-bend manufacturing sector is experiencing rapid technological advancement, with AI-driven quality control systems reducing defect rates by 47% and laser measurement technologies ensuring bending accuracy within ±0.05mm.
-
Smart Manufacturing & Industry 4.0
AI-driven CNC machines ensure precision bending with ±0.1mm accuracy and real-time quality monitoring.
- Automated optical inspection systems
- Predictive maintenance algorithms
- Digital twin technology for process optimization
-
Advanced Alloy Development
Copper-nickel blends (90/10, 70/30) for extreme corrosion resistance in offshore applications, extending service life by 40-60% in marine environments.
- Enhanced copper-silver alloys for higher strength
- Nanocomposite copper materials
- Anti-microbial copper formulations
-
Sustainability & Circular Economy
Rising demand for recycled copper U-bends in net-zero construction projects. Modern recycling processes recover over 95% of copper content with minimal quality degradation.
- Closed-loop recycling systems
- Carbon footprint tracking
- LEED-certified manufacturing facilities
Copper Tube U-Bends Quality Standards
International Quality Standards for Copper U-Bends
| Standard | Region | Key Requirements | Application Scope |
|---|---|---|---|
| ASTM B280 | United States | Air Conditioning and Refrigeration Field | HVAC & Refrigeration |
| ASME SB395 | International | U-Bend Seamless Copper Tubes | Heat Exchangers |
| EN 12735 | European Union | Copper and Copper Alloys | General Applications |
| JIS H3300 | Japan | Copper and Copper Alloy Tubes | Industrial Equipment |
Supplier Evaluation Checklist
- Certifications: Look for ASTM B280 or ASME SB395 compliance, ISO 9001 quality management
- Customization Capabilities: Opt for suppliers offering bespoke radii, wall thicknesses, and special coatings
- Testing Protocols: Ensure hydrostatic testing (to 1.5x working pressure), eddy current testing, and dimensional verification
- Production Capacity: Verify ability to handle both small custom orders and large-volume production runs
- Technical Support: Access to engineering expertise for application-specific recommendations
Copper Tube U-Bends Performance in Thermal Management Systems
Efficiency Improvement Data
Independent testing has demonstrated that copper U-bend heat exchangers achieve 18-25% higher thermal efficiency compared to aluminum alternatives and reduce system pressure drop by 12-15% through optimized flow dynamics.
Copper tube U-bends are indispensable in modern thermal management due to their efficiency, durability, and adaptability. As industries prioritize energy savings and sustainability, coppers role will expand, driven by innovations in alloy technology and smart manufacturing.

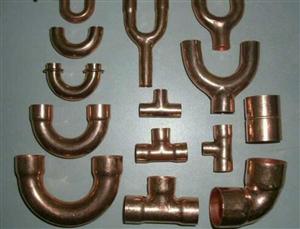

Various Brass and Copper Fittings
