How a double-tube sheet heat exchanger work?

A double-tube sheet heat exchanger is a type of heat exchanger used in various industrial applications to transfer heat between two different fluids without them coming into direct contact with each other. The "double-tube sheet" design is a safety feature that helps prevent cross-contamination between the two fluids, especially when one of them is potentially hazardous or toxic.

How a double-tube sheet heat exchanger typically works:

1. Structure: The heat exchanger consists of two separate tubesheets, which are essentially tube-end plates. One tubesheet is at the hot side (where one fluid gains heat), and the other is at the cold side (where another fluid loses heat). These tubesheets are securely attached to the outer casing of the heat exchanger.

2. Tubes: Inside the heat exchanger casing, there are two sets of tubes. One set carries the hot fluid, and the other set carries the cold fluid. These tubes run through both tubesheets, providing a passage for the fluids to flow.

3. Fluid Flow: The hot fluid flows through one set of tubes, while the cold fluid flows through the other set of tubes. Heat is transferred from the hot fluid to the cold fluid through the tube walls, without the two fluids mixing.

4. Double-Tube Sheets: As mentioned earlier, there are two tube sheets in this design. One tube sheet is at the entrance point for the hot fluid, and the other is at the entrance point for the cold fluid. This arrangement creates a barrier between the two fluids and reduces the risk of cross-contamination.

Benefits of a double-tube sheet heat exchanger:

1. Safety: The double-tube sheet design provides an extra layer of protection against leaks or failures in the tubing. In case of a tube rupture on the hot side, the fluid would first escape into the space between the two tube sheets, preventing contact with the cold fluid.

2. Efficiency: These heat exchangers are efficient at transferring heat between fluids due to the large surface area provided by the tubes.

3. Versatility: Double-tube sheet heat exchangers can be used in a wide range of industries, including chemical processing, petrochemical, pharmaceuticals, and food processing.

4. Durability: They are often built with materials that can withstand high temperatures and corrosive environments, ensuring a long lifespan.

However, its important to note that double-tube sheet heat exchangers can be more complex and costly to manufacture and maintain compared to single-tube sheet designs. The added safety and prevention of cross-contamination make them valuable in applications where safety and product purity are paramount.

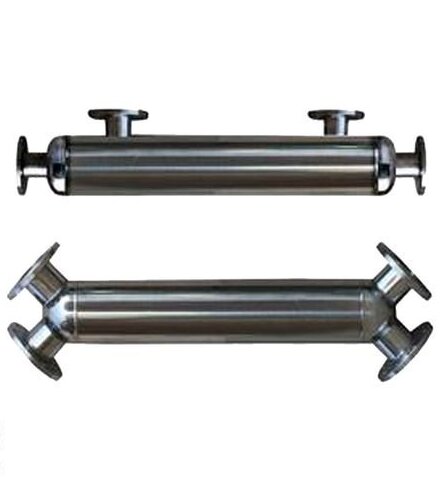

Double-tube sheet heat exchanger
