"Enhanced Surface Tubes" typically refers to heat exchanger tubes that have been modified to improve their heat transfer efficiency. These modifications are often done to increase the surface area available for heat transfer or to enhance fluid dynamics within the tubes. Enhanced surface tubes find applications in various industries where efficient heat exchange is crucial, such as in power plants, chemical processing, refrigeration, and HVAC systems.

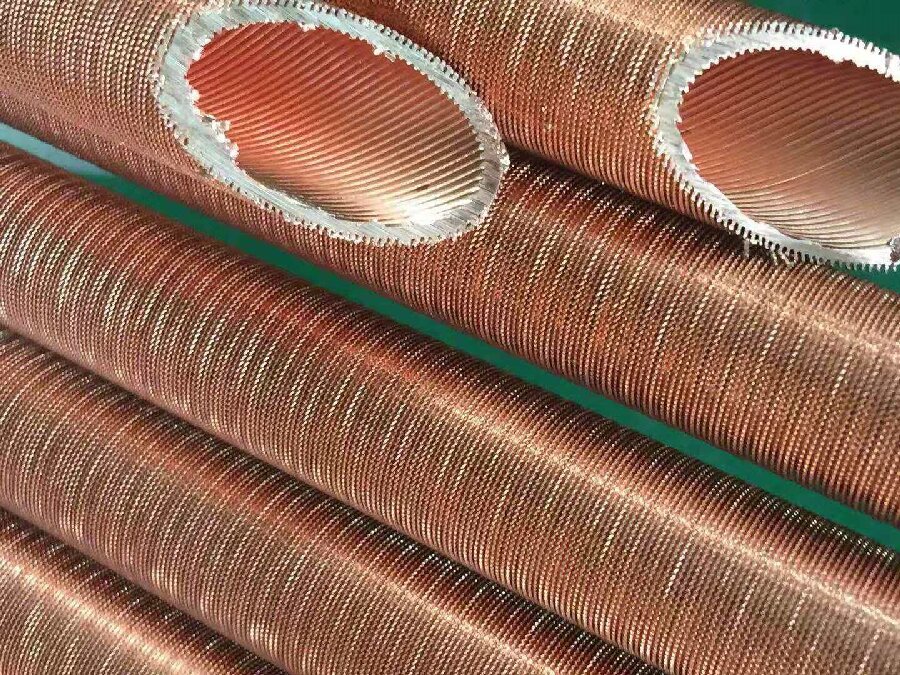

1. Ribbed or Finned Tubes: These tubes have longitudinal or transverse ribs or fins attached to their outer or inner surfaces, increasing the surface area for heat transfer and disrupting boundary layers to improve heat transfer efficiency.



2. Twisted Tape Inserts: Inserting twisted tapes into the tubes can induce swirling flow patterns, enhancing heat transfer by promoting turbulence and disrupting boundary layers.



3. Internal Surface Modifications: Internal surface modifications such as dimples, grooves, or protrusions can alter fluid flow patterns and enhance heat transfer rates by promoting turbulence and mixing.



4. Surface Coatings: Applying coatings with high thermal conductivity or special surface textures can increase the effective heat transfer coefficient of the tubes.



5. Microchannel Tubes: These tubes have small channels or passages that enhance convective heat transfer by reducing the thermal resistance between the fluid and tube wall.



6. Vortex Generators: Placing vortex generators inside the tubes can induce swirl flow, enhancing heat transfer by promoting mixing and disrupting boundary layers.



7. Nanofluids: Using nanofluids (fluids containing nanoparticles) as the heat transfer medium can significantly enhance the overall heat transfer coefficient due to the higher thermal conductivity of nanoparticles.



Enhanced surface tubes offer advantages such as improved thermal performance, reduced size and weight of heat exchangers, increased energy efficiency, and lower operating costs. However, they may also involve higher initial costs compared to conventional tubes. The choice of enhancement method depends on factors such as the specific application, operating conditions, required heat transfer rates, and economic considerations.
