The Complete FAQ Guide for Low Fin Tube

Introducing Low Fin Tube

Low Fin Tubes are specialized heat exchanger tubes with small fins on their outer surface, designed to enhance heat transfer by increasing the surface area. Manufactured typically from materials such as copper, stainless steel, and titanium, they are widely used in HVAC systems, industrial heat exchangers, marine applications, and the oil and gas industry. Their compact design and improved heat transfer efficiency make them cost-effective and versatile. Selection considerations include thermal requirements, fluid properties, operating conditions, and material compatibility. Regular maintenance, including cleaning and inspection, is essential to sustain their performance and longevity.

The Complete FAQ Guide for Low Fin Tube:

What is a Low Fin Tube?

A low fin tube is a type of heat exchanger tube that features smaller fins integrated into its surface. These fins significantly increase the surface area of the tube without altering its outer diameter. Typically, the fins range from one to one and a half inches in size. This design allows for more efficient heat transfer between fluids in various applications such as chillers, coolers, and condensers.

What are the Limitations of using a Low Fin Tube?

One of the main limitations of using low fin tubes is their cost. These tubes can be more expensive compared to standard smooth tubes due to the additional manufacturing processes involved in creating the fins. However, its important to note that while there might be a higher initial cost, the durability and performance advantages of low fin tubes often outweigh this factor in the long run.

How does Low Fin Tube compare to High Fin Tube?

Low fin tubes and high fin tubes differ primarily in the number and size of fins present on the tubes surface. Low fin tubes typically feature fewer and larger fins compared to high fin tubes. This difference in fin configuration directly impacts the heat transfer rates of the tubes, with high fin tubes generally offering higher heat transfer rates due to their greater surface area.

How are Low Fin Tubes Manufactured?

Low fin tubes are manufactured using various methods, including plastic working and hot rolling. In the plastic working method, monometallic and bimetallic tubes are formed using depressing or grading types of plastic working. Depressing involves using tool disks to deform the tube and create fins, making it an efficient method for low fin tube formation. On the other hand, the hot rolling method involves clamping and tape winding to form low fin tubes accurately.

What Types of Low Fin Tubes are Available?

There are primarily two types of low fin tubes available: welded and seamless. Welded low fin tubes are created by welding fins onto a smooth tube, while seamless low fin tubes are formed with fins as an integral part of the tube during the manufacturing process. The choice between welded and seamless tubes depends on specific application requirements and preferences.

What is the Function of Fins in Low Fin Tubes?

The primary function of fins in low fin tubes is to increase the surface area available for heat transfer. As fluid flows through the tube, the fins provide additional contact points for heat exchange between the fluid inside the tube and the surrounding environment. The design and arrangement of fins can significantly impact the heat transfer rate of the tube.

What are the Features of a Low Fin Tube?

Low fin tubes offer several features that make them desirable for heat transfer applications. These features include high heat transfer efficiency, compatibility with a wide range of materials, weight reduction benefits, and diverse fin configurations. Additionally, low fin tubes are available in various dimensions and can be customized to suit specific application requirements.

Where can you use Low Fin Tubes?

Low fin tubes find applications across a wide range of industries, including steel, chemical, food, petroleum, glycol dehydration, printing, plastic molding, greenhouse heating, and tanneries. They are commonly used in heat exchangers, condensers, evaporators, and other thermal transfer systems where efficient heat exchange is essential.

Why use Low Fin Tubes?

Low fin tubes offer several advantages that make them preferable for heat transfer applications. These include high heat transfer rates, reduced quantities of tubes required for a given application compared to smooth tubes, and long-term durability with minimal maintenance requirements. Additionally, low fin tubes can help optimize system performance and efficiency while reducing overall costs.

How do you Install Low Fin Tubes?

The installation of low fin tubes involves considerations such as the compatibility of the tubes end design with the application, as well as pressure and temperature requirements. Depending on the end design of the tube (threaded, plain, or beveled), appropriate installation methods such as screwing, welding, or brazing are used to ensure a secure fit. Proper testing for leaks should be conducted before the tubes are put into operation.

How does Inner Low Fin Tubes compare to Outer Low Fin Tubes?

Inner low fin tubes and outer low fin tubes differ in the location of the fins on the tubes surface. Outer low fin tubes have fins on the outer surface of the tube, while inner low fin tubes have fins on the inner surface. While outer low fin tubes generally offer higher performance, inner low fin tubes can increase fluid pressure for enhanced heat transfer. The choice between inner and outer low fin tubes depends on specific application requirements.

How does Low Fin Tubes compare to Plain Tubes?

The primary difference between low fin tubes and plain tubes is the presence of fins on the surface of the tube. These fins significantly increase the surface area available for heat transfer in low fin tubes, resulting in higher heat transfer rates compared to plain tubes. This increased efficiency makes low fin tubes preferable for applications where efficient heat exchange is critical.

Which Materials are used to Manufacture Low Fin Tubes?

Low fin tubes can be manufactured using a variety of materials to suit different application requirements. Common materials used include copper nickel alloy, aluminum alloy, stainless steel, titanium, and low carbon steel. The choice of material depends on factors such as corrosion resistance, thermal conductivity, and compatibility with the fluids being processed.

Which type of Bending Processes can you use on Low Fin Tube?

Several bending processes can be used on low fin tubes to achieve the desired shape and configuration. These include methods such as bow tube bending, three-roll bending, and draw bending. Each bending process offers advantages in terms of precision, flexibility, and suitability for specific tube geometries. The choice of bending process depends on factors such as the required bend radius, tube material, and production volume.

How do I Check for Leakages in a Low Fin Tube?

Various methods can be used to check for leakages in low fin tubes, including vacuum and pressure leak tests. These methods involve creating either a vacuum or pressure within the tube and then monitoring for any changes that indicate the presence of leaks. Leak testing should be conducted before the tubes are put into operation to ensure system integrity and prevent potential issues.

How does Low Fin Tube Work?

Low fin tubes work by increasing the surface area available for heat transfer between fluids. As fluid flows through the tube, heat is transferred from the inner fluid to the outer fluid or vice versa, depending on the application. The fins on the tubes surface create additional contact points for heat exchange, resulting in enhanced thermal performance compared to smooth tubes.

What is the Difference between Low Fin Tubes and Baffles?

Low fin tubes and baffles serve different functions in heat exchanger systems. Low fin tubes are designed to increase the surface area available for heat transfer between fluids, while baffles are plates within a heat exchanger system that create turbulence to enhance heat transfer rates. Baffles also help direct the flow of fluid within the heat exchanger, whereas low fin tubes primarily focus on increasing surface area for heat exchange.

How do I Select a Low Fin Tube?

Selecting the right low fin tube involves considerations such as dimensions, heat transfer rates, end design, working pressure, temperature, and quality standards. The choice of low fin tube should be based on specific application requirements and performance criteria. Working with a reputable manufacturer or supplier can help ensure that the selected tube meets all necessary specifications and standards.

What Affects the Heat Transfer in a Low Fin Tube?

Several factors can affect the heat transfer performance of a low fin tube, including fluid properties, fin arrangement, number of fins, dimensions of the fins, and surface finish. These factors influence the overall efficiency and effectiveness of heat transfer in the tube, and careful consideration of each is essential when designing or selecting low fin tubes for a particular application.

What can Cause Leakages in Low Fin Tubes?

Leakages in low fin tubes can be caused by various factors, including scale buildup, thermal shock, improper installation, and tube corrosion. Scale buildup can narrow the inner diameter of the tube, leading to pressure build-up and eventual leakage. Thermal shock from rapid temperature changes can cause the tube to crack or rupture. Proper installation techniques and regular maintenance can help prevent these issues and ensure the integrity of the tube system.

What is the Cost of a Low Fin Tube?

The cost of a low fin tube depends on several factors, including the type of tube (welded or seamless), length, thickness, and material. Additionally, the manufacturer or supplier chosen can impact the overall cost. Its essential to consider factors such as performance requirements, durability, and long-term maintenance costs when evaluating the cost-effectiveness of low fin tubes for a specific application.

What is a Low Fin Tube Efficiency?

Low fin tube efficiency refers to the ratio between the actual heat transfer rate achieved by the tube and the theoretical maximum heat transfer rate achievable through the tubes fins. This efficiency value provides insight into how effectively the tube is transferring heat between fluids and can be used to evaluate and compare different tube designs or configurations for a given application.

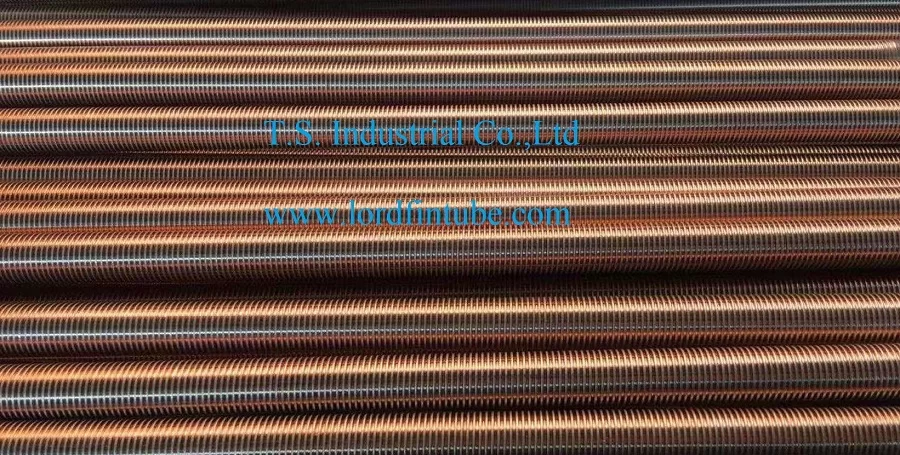

C12200 Low Fin Tube
