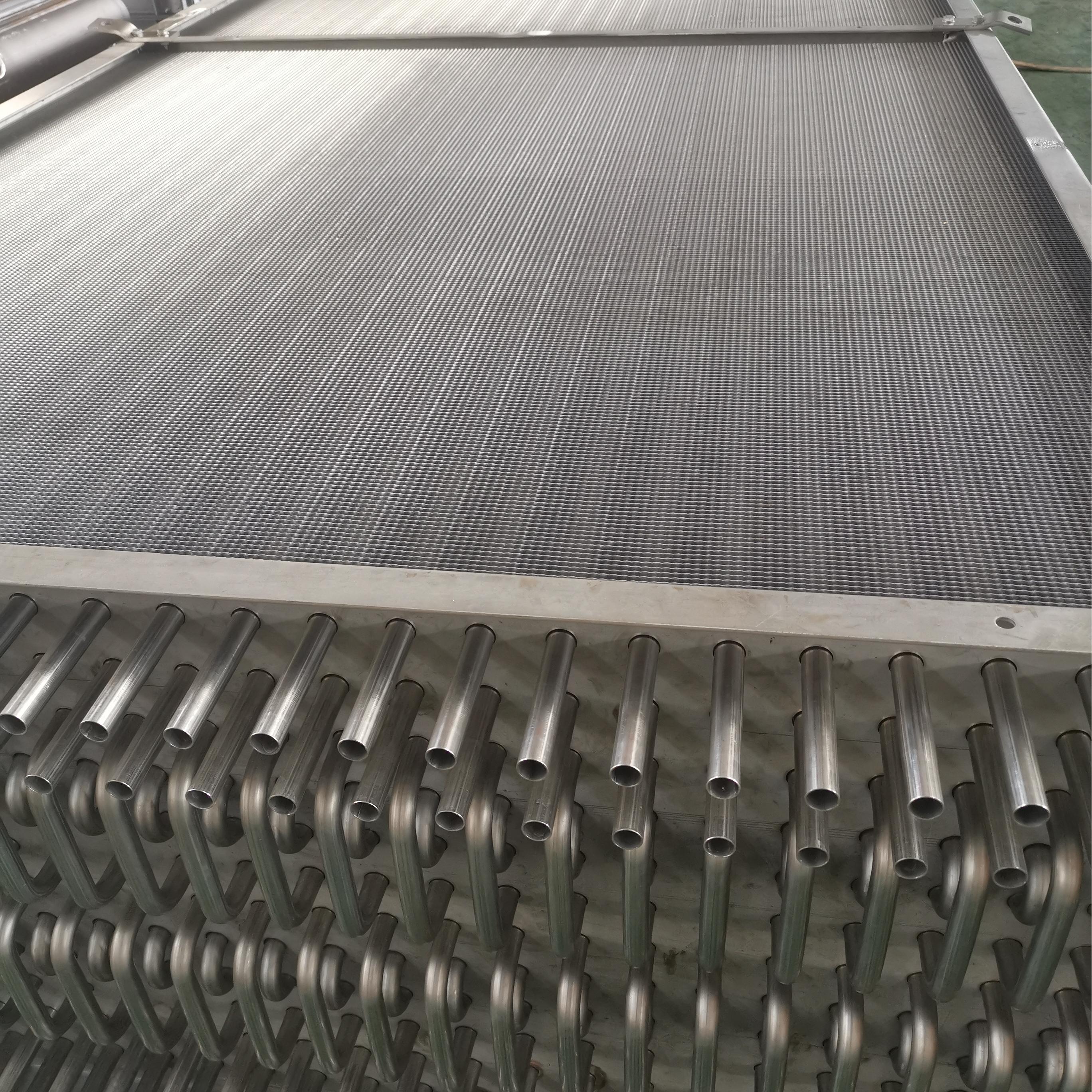

Finned Tube Air Heat Exchangers
Industry-Leading Thermal Performance
Finned tube air heat exchangers deliver 30-50% higher heat transfer efficiency compared to conventional flat-tube designs, while reducing operational costs and equipment footprint across diverse industrial applications.
Fundamental Principles of Finned Tube Technology
Enhanced Surface Area Engineering
Finned tube heat exchangers achieve superior performance through strategically engineered surface area expansion. The fin design multiplies the effective heat transfer surface by 5-10 times compared to bare tubes, creating unparalleled thermal exchange capabilities.
Aluminum Fins
120-150 fins per foot, optimized for low-viscosity air applications with minimal pressure drop
Stainless Steel Fins
8-12 fins per inch, engineered for corrosive environments and high-temperature operations
Copper Fins
Exceptional thermal conductivity for precision temperature control applications
Turbulence Optimization
Advanced fin geometries create controlled turbulence that disrupts laminar boundary layers, increasing convective heat transfer coefficients by 18-25%. This innovative approach also minimizes particulate accumulation in challenging industrial environments.
Design Optimization for Maximum Efficiency
Fin Density and Pressure Drop Considerations
| Application | Recommended FPI | Air Velocity (fpm) | Optimal Material |
|---|---|---|---|
| Commercial HVAC Systems | 8-10 FPI | 400-600 fpm | Aluminum fins with copper tubes |
| Gas Turbine Inlet Air Cooling | 3-5 FPI | 800-1,200 fpm | Stainless steel construction |
| Plastic Extrusion Processes | 12-14 FPI | 200-350 fpm | Carbon steel with protective coating |
| Chemical Processing | 6-8 FPI | 500-700 fpm | Special alloy composites |
Advanced Tube Layout Configurations
Staggered tube arrangements provide 15% better heat transfer efficiency compared to in-line configurations, while triangular pitch designs reduce airside pressure drop by 8-12%, optimizing overall system performance.
Industrial Applications and Case Studies
Steel Manufacturing: Exhaust Heat Recovery
A major German steel producer implemented custom finned tube heat exchangers to capture waste heat from 900°F exhaust streams. The system achieved:
- 27% reduction in natural gas consumption
- ROI period: 11 months
- Annual CO₂ reduction: 4,200 tons
Data Center Cooling Innovation
Googles Belgium facility utilizes seawater-cooled finned tube systems for sustainable temperature management:
- 9,300 annual hours of compressor-free operation
- Annual energy savings: €2.3 million
- PUE (Power Usage Effectiveness) reduction to 1.12
Aerospace Thermal Management
Boeing 787 Dreamliner incorporates advanced finned tube heat exchangers for hydraulic system cooling, maintaining precise temperature control (-65°F to 130°F ambient) with ±5°F accuracy.
Comprehensive Maintenance Protocol
Proactive Maintenance Schedule
- Monthly: Visual inspection for fin damage and debris accumulation
- Quarterly: Infrared thermography analysis to identify dry spots and blockages
- Annual: Comprehensive fin comb straightening (0.02" maximum bend tolerance)
- Biennial: Eddy current testing for tube wall thickness assessment
Common Failure Modes and Solutions
- Fin Root Corrosion: Implement cathodic protection with zinc anodes in chloride-rich environments
- Airflow Bypass: Replace degraded gaskets with high-temperature silicone foam seals
- Ice Bridging: Apply hydrophilic coatings to prevent ice formation in sub-freezing conditions
- Particulate Fouling: Install automated cleaning systems with controlled air pulse technology
Future Innovations in Finned Tube Technology
Smart Heat Exchange Systems
Siemens 2024 pilot project integrates IoT sensors and AI-driven analytics into finned tube systems, enabling:
- Real-time fouling factor calculations and predictive maintenance alerts
- Dynamic airflow optimization based on operational conditions
- Automated performance reporting and energy efficiency tracking
- Machine learning algorithms for proactive failure prevention
Advanced Material Science
Emerging technologies include graphene-enhanced composites for 300% improved thermal conductivity and self-healing polymer coatings that automatically repair minor fin damage.
