What is finned tube evaporator?

A finned tube evaporator is a type of heat exchanger used in refrigeration and air conditioning systems. It is designed to facilitate the transfer of heat between a refrigerant and the surrounding air. The finned tube evaporator is a crucial component of refrigeration devices, serving as a low-temperature heat exchanger. In the cooling mode, it absorbs heat from the cold space and releases it to the high-temperature environment through the condenser. Conversely, in the heating mode, it absorbs heat from the low-temperature environment and discharges it to the hot space via the condenser. The refrigerant in the condenser maintains constant pressure and releases heat, while in the evaporator, it absorbs heat at a constant pressure.

The finned tube evaporator consists of a series of metal tubes with fins attached to their exterior surfaces. These fins increase the surface area of the tubes, allowing for more efficient heat transfer. The tubes are typically made of copper or aluminum due to their good thermal conductivity properties.

The evaporator operates by utilizing the refrigerants low-pressure and low-temperature characteristics. When the refrigerant enters the evaporator, it undergoes a phase change from a liquid to a vapor as it absorbs heat from the surrounding air. The fins on the tubes help to enhance the heat transfer process by increasing the contact area between the refrigerant and the air.

As the warm air from the surroundings passes over the finned tubes, heat is transferred from the air to the refrigerant vapor inside the tubes. This process causes the air temperature to decrease while the refrigerant vapor inside the tubes increases in temperature. The refrigerant vapor is then carried away from the evaporator to continue the refrigeration cycle.

Finned tube evaporator applications

The finned tube evaporator is commonly used in air conditioning systems, refrigerators, freezers, and other cooling applications. It offers several advantages, including high heat transfer efficiency, compact size, and lightweight construction. The fins help improve the performance of the evaporator by maximizing the heat transfer area and increasing the airflow over the tubes. It plays a significant role in processes such as chemical production, pharmaceutical applications, energy systems, papermaking, food processing, and HVAC (Heating, Ventilation, and Air Conditioning).

Finned tube evaporator working principle

The working principle of the finned tube evaporator relies on the use of finned tubes as heat exchange elements. These tubes utilize ambient air as a cooling medium to cool or condense the high-humidity fluid flowing within them. The finned tube design offers advantages such as a long service life, low operating costs, and more. Given the growing concern over water and energy resources, as well as the increasing emphasis on environmental protection, the demand for water-saving, energy-saving, and pollution-free air coolers is expected to expand further.

Overall, the finned tube evaporator is an essential component in cooling systems, allowing for efficient heat exchange between the refrigerant and the surrounding air, ultimately facilitating the cooling process.

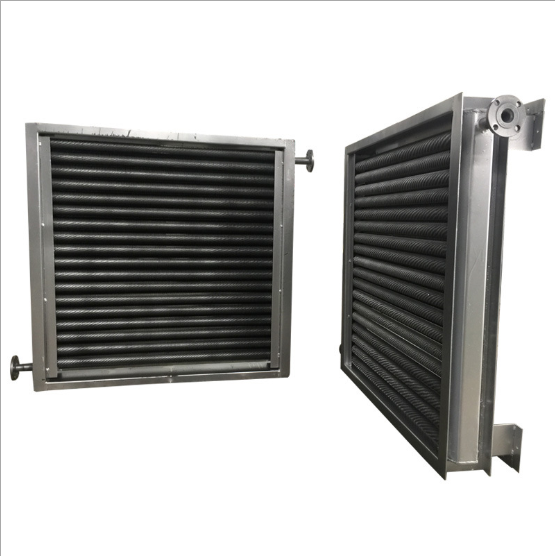

Finned tube evaporator
