What is finned tube oil cooler?

A finned tube oil cooler is a type of heat exchanger that is used to cool oil or other fluids. The cooler consists of a bundle of tubes with fins attached to them, which increases the surface area available for heat transfer. The tubes are typically made of copper, aluminum, or stainless steel, and the fins can be made of the same materials or other materials such as carbon steel.

The fluid to be cooled, such as oil, flows through the tubes while a cooling fluid, such as air or water, flows over the fins. Heat is transferred from the oil to the fins and then to the cooling fluid, which carries the heat away from the system.

Finned tube oil coolers are commonly used in applications where the oil or other fluid needs to be cooled to prevent overheating and damage to the system. They are often used in hydraulic systems, engines, compressors, and other industrial equipment.

The effectiveness of a finned tube oil cooler depends on factors such as the design of the fins, the flow rates of the fluids, and the temperature differential between the fluids. Proper maintenance is also important to ensure that the cooler continues to function effectively and efficiently.

Some additional information on finned tube oil coolers:

1. Finned tube oil coolers are available in various designs, including straight fin, helical fin, and louvered fin, among others. Each design has its advantages and disadvantages, depending on the specific application.

2. The fins attached to the tubes increase the surface area available for heat transfer, which allows for more efficient cooling. The shape, thickness, and spacing of the fins can all affect the heat transfer rate.

3. Finned tube oil coolers can be designed for different cooling fluid types, such as air or water. Air-cooled coolers are typically more compact and easier to maintain, while water-cooled coolers may be more effective at cooling the oil.

In some applications, finned tube oil coolers may be used in conjunction with other types of coolers, such as shell-and-tube heat exchangers or plate heat exchangers, to achieve the desired cooling effect.

The performance of a finned tube oil cooler can be affected by factors such as fouling, corrosion, and erosion, which can reduce the efficiency of the heat transfer process. Proper maintenance, including regular cleaning and inspection, can help prevent these issues.

Finned tube oil coolers can be customized to meet specific application requirements, such as size, material, and performance specifications. Consulting with a qualified heat transfer specialist can help ensure that the cooler is designed to meet the specific needs of the system.

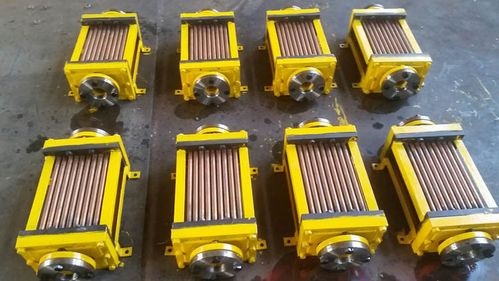

Finned tube oil coolers
