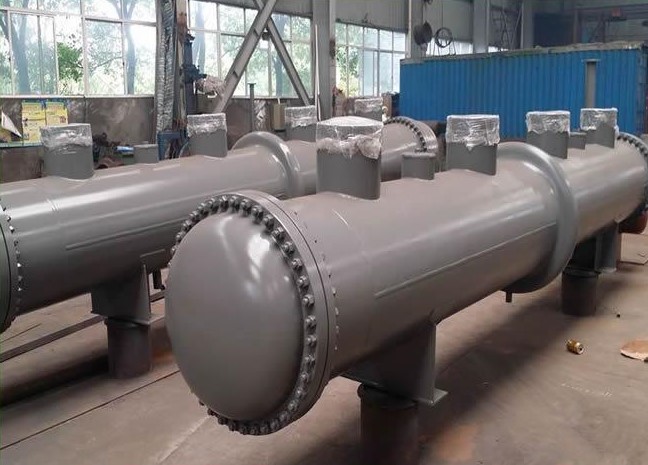

A fixed tube heat exchanger is a type of heat exchanger that consists of a set of tubes through which one fluid flows, and another fluid flows over the outside of the tubes. The tubes are fixed in place, meaning they do not move, and the heat transfer occurs between the two fluids through the tube walls. This type of heat exchanger is commonly used in various industrial applications and HVAC systems.





1. Tube Configuration:



The tubes are typically arranged in a bundle, and one fluid (often called the process fluid) flows through the tubes, while another fluid (usually called the cooling or heating fluid) flows over the outside of the tubes.



2. Fixed Tube Heat Exchanger Heat Transfer:



Heat is transferred from the hot fluid inside the tubes to the colder fluid outside the tubes. This can occur through conduction through the tube walls.



3. Fixed Tube Heat Exchanger Applications:



Fixed tube heat exchangers are used in a wide range of industries, such as power plants, chemical processing, petrochemical plants, HVAC systems, and more. They are efficient and can handle high temperatures and pressures.



4. Fixed Tube Heat Exchanger Materials:



The materials used for the tubes depend on the specific application and the properties of the fluids involved. Common materials include stainless steel, copper, and various alloys.



5. Shell-and-Tube Design:



The fixed tube heat exchanger is often referred to as a shell-and-tube heat exchanger. The outer shell contains the tube bundle, and the two fluids flow in a counterflow or parallel flow configuration, depending on the design.



6. Fixed Tube Heat Exchanger Maintenance:



One advantage of fixed tube heat exchangers is that they are generally easier to maintain compared to some other types of heat exchangers. However, they may still require periodic inspection and cleaning to ensure optimal performance.
