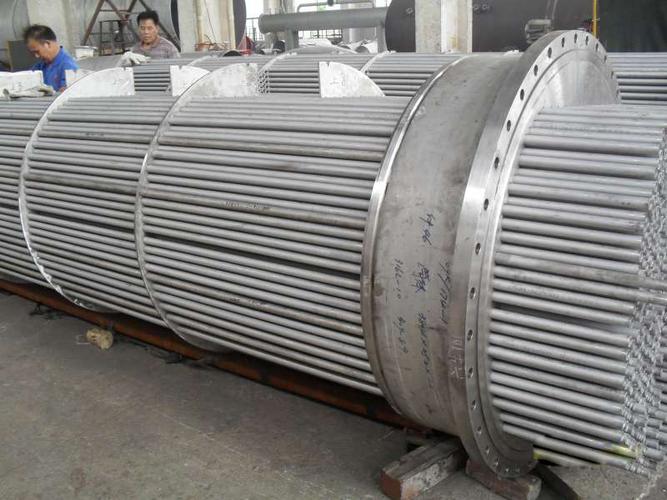

A double tube sheet is a design feature commonly used in shell-and-tube heat exchangers and other similar equipment. In a shell-and-tube heat exchanger, there are two main components: the shell, which is a large outer vessel, and the tubes, which are smaller tubes that run through the shell. The double tube sheet design involves having two separate tube sheets within the shell.





1. Inner Tube Sheet: The first tube sheet is located inside the shell and is usually closer to one end. The tubes are attached to this inner tube sheet, and they pass through it to the other end of the shell.



2. Baffle Space: Between the inner tube sheet and the other end of the shell, there is a space that contains baffles. Baffles are plates or other structures designed to direct the flow of the fluid inside the shell and promote efficient heat transfer.



3. Outer Tube Sheet: The second tube sheet is located at the other end of the shell. The tubes are also attached to this outer tube sheet.





- Prevents Cross-Contamination: Because there are two tube sheets, there is a space (the baffle space) between them. This helps to prevent cross-contamination between the two fluids flowing through the tubes, especially when they have different properties.



- Enhanced Safety: In applications where one fluid is hazardous or toxic, the double tube sheet design provides an extra layer of safety by reducing the risk of leaks.



- Reduced Risk of Thermal Expansion Issues: The double tube sheet design helps accommodate thermal expansion differences between the tubes and the shell. This is important to avoid problems that may arise from temperature-induced expansion and contraction.



- Easier Inspection: The space between the tube sheets allows for easier inspection of the tubes and facilitates maintenance activities.



In summary, a double tube sheet design is a configuration used to enhance the safety, efficiency, and ease of maintenance in certain types of heat exchangers, particularly those dealing with potentially hazardous fluids.
