Forged Head for Heat Exchanger Applications
2025-04-08Leave a message
Forged Head for Heat Exchanger Applications
In heat exchangers (especially shell and tube heat exchangers), Forged Heads are critical pressure-bearing components used to seal the shell or channel ends. Manufactured through precision forging processes, these components deliver exceptional strength, temperature resistance, and pressure containment capabilities essential for demanding industrial applications.
Industry Insight: Modern forged heads can withstand pressures exceeding 100 MPa in critical applications such as nuclear power plants and high-pressure chemical reactors, making them indispensable for safety-critical operations.
1. Definition and Function of Forged Heads
Definition
Forged Heads are precision-engineered metallic closures manufactured through controlled forging processes, specifically designed to seal heat exchanger shells or tube sheets, thereby creating secure fluid containment systems.
Core Functions
- Pressure Containment: Serve as primary pressure boundary components, withstanding internal or external pressure differentials from shell-side or tube-side fluids.
- Fluid Sealing: Prevent media leakage through advanced sealing technologies, ensuring operational safety and environmental protection.
- Structural Integration: Provide secure attachment points through welding or bolted flange connections to shell, tube sheet, or flange interfaces.
- Flow Management: In certain designs, contribute to optimal fluid distribution across tube bundles for enhanced thermal efficiency.
Pressure Capacity
Forged heads typically withstand 2-3 times higher pressure ratings compared to equivalent cast components, with some specialized designs rated for 150+ MPa service.
Temperature Range
Operating temperatures from cryogenic applications (-196°C) to extreme heat services (up to 815°C) depending on material selection and design specifications.
Industry Usage
Over 85% of high-pressure heat exchangers in petrochemical and power generation industries utilize forged heads for critical pressure boundary applications.
2. Forged Heads Common Types and Structural Configurations
Forged Heads in Shell and Tube Heat Exchangers
- Front Head: Positioned at the inlet channel, integrated with tube sheet to distribute tube-side fluid efficiently across heat exchange tube bundles.
- Rear Head: Configuration varies by design - fixed heads for stable applications or removable designs (floating heads) for maintenance accessibility.
Forged Heads Geometric Profiles and Applications
| Head Shape | Pressure Capacity | Manufacturing Complexity | Typical Applications | Cost Factor |
|---|---|---|---|---|
| Hemispherical Head | Very High (Optimal stress distribution) | High (Complex forming required) | Nuclear, Aerospace, Ultra-high Pressure | 1.8-2.5x |
| Ellipsoidal Head (2:1) | High (Industry standard) | Medium (Balanced performance) | Petrochemical, Power Generation | 1.0x (Baseline) |
| Torispherical Head | Medium (Transition geometry) | Low-Medium (Economical fabrication) | General Process Industry | 0.7-0.9x |
| Flat Head | Low (Requires reinforcement) | Low (Simple manufacturing) | Low Pressure, Small Diameter | 0.5-0.7x |
Forged Heads Specialized Application
Forged heads demonstrate superior performance in extreme service conditions including high-pressure heat exchangers (hydrogenation reactor feed exchangers), cryogenic processing units, and corrosive media handling systems where reliability is paramount.
3. Forged Heads Material Selection and Performance Characteristics
| Material Grade | Tensile Strength (MPa) | Max Service Temperature (°C) | Corrosion Resistance | Cost Index | Primary Applications |
|---|---|---|---|---|---|
| SA-105 (Carbon Steel) | 485-655 | 425 | Low (Requires coating) | 1.0 | General service, non-corrosive |
| SA-182 F304 (Stainless) | 515-860 | 815 | High (Oxidation resistant) | 2.5-3.0 | Chemical, Food Processing |
| SA-182 F316 (Stainless) | 515-860 | 815 | Very High (Chloride resistance) | 3.0-3.5 | Marine, Chloride environments |
| SA-182 F91 (Chrome-Moly) | 585-860 | 650 | Medium-High (Creep resistant) | 4.0-5.0 | High Temperature Power |
| Inconel 625 | 930-1310 | 980 | Exceptional (Acid resistant) | 15-20 | Severe corrosion service |
4. Advantages of Forging Manufacturing Process
- Superior Mechanical Properties: Forging eliminates internal metallurgical defects (porosity, inclusions), refines grain structure, and enhances directional strength - typically 25-30% higher tensile and fatigue resistance compared to cast alternatives.
- Enhanced Temperature Performance: Optimal for extreme service conditions (petrochemical, nuclear, aerospace) with consistent performance across thermal cycles.
- Corrosion Resistance: Dense, non-porous microstructure significantly reduces susceptibility to media penetration and localized corrosion mechanisms.
- Extended Service Life: Superior fatigue resistance under cyclic loading conditions reduces maintenance frequency and total cost of ownership.
- Quality Consistency: Modern forging with computer-controlled processes ensures dimensional accuracy and material property uniformity.
Technical Note: Directional grain flow in forged heads follows the component contour, creating natural stress paths that significantly enhance fatigue life - particularly valuable in applications with pressure cycling or thermal transients.
5. Forged Heads Design and Selection Parameters
| Design Parameter | Considerations | Industry Standards | Impact on Performance |
|---|---|---|---|
| Material Selection | Carbon steel (SA-105), stainless steel (SA-182 F304/F316), nickel-based alloys (Inconel), duplex stainless | ASTM, ASME, EN | Determines corrosion resistance, temperature capability, mechanical strength |
| Design Standards | Compliance with ASME BPVC Section VIII, TEMA standards, PED 2014/68/EU | ASME, TEMA, ISO | Ensures regulatory compliance and safety margins |
| Connection Method | Welded (butt-weld for permanent) or bolted flange (for maintenance access) | ASME B16.5, B16.47 | Affects maintenance accessibility and joint integrity |
| Pressure Rating | Selection based on design pressure (Class 150, 300, 600, 900, 1500, 2500) | ASME B16.34 | Directly impacts thickness, weight, and cost |
| Temperature Rating | Material derating at elevated temperatures, impact testing for low temperature | ASME II-D | Critical for high-temperature and cryogenic applications |
| Corrosion Allowance | Additional thickness to compensate for uniform corrosion over design life | NACE MR0175 | Extends service life in corrosive environments |
6. Forged Heads Industry Applications and Service Environments
- High-Pressure Heat Exchangers: Hydrogenation units, synthetic ammonia reactors, methanol converters with operating pressures up to 350 bar.
- High-Temperature Steam Systems: Power plant boiler feedwater preheaters, HRSG applications with temperatures exceeding 600°C.
- Corrosive Media Handling: Acid and alkali fluid heat exchangers in chemical production with pH ranges from 0-14.
- Nuclear Power Generation: Primary coolant heat exchange equipment with stringent quality and reliability requirements.
- Cryogenic Processing: LNG heat exchangers operating at temperatures as low as -196°C.
- Offshore and Marine: Sea water coolers with superior corrosion resistance requirements.
7. Technical Comparison with Alternative Head Manufacturing Methods
| Performance Characteristic | Forged Head | Cast Head | Formed Head (Plate) | Fabricated Head (Welded) |
|---|---|---|---|---|
| Mechanical Strength | Highest (Directional grain flow) | Lowest (Potential defects) | Medium (Isotropic properties) | Variable (HAZ concerns) |
| Internal Soundness | Excellent (Dense structure) | Variable (Porosity risk) | Good (Plate quality) | Good (Dependent on welding) |
| Pressure Capability | Very High (≥15 MPa typical) | Low (≤5 MPa typical) | Medium (5-15 MPa) | Medium-High (5-20 MPa) |
| Temperature Resistance | Superior (Consistent at extremes) | Good (Material dependent) | Good (Material dependent) | Variable (HAZ limitations) |
| Corrosion Performance | Excellent (Non-porous) | Fair (Potential microporosity) | Good (Homogeneous) | Good (Weld selection critical) |
| Manufacturing Cost | High (Tooling, process) | Low-Medium (Pattern cost) | Medium (Forming equipment) | Medium-High (Labor intensive) |
| Lead Time | Long (Process intensive) | Medium (Pattern dependent) | Short (Standard forms) | Medium (Fabrication time) |
| Industry Applications | Nuclear, Petrochemical, Aerospace | General Industrial, HVAC | Chemical, Power, Oil & Gas | Custom designs, Large diameters |

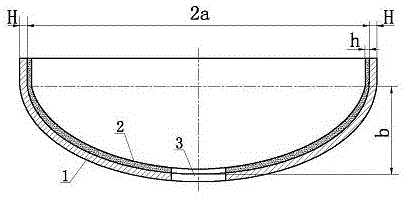

Forged Head Design and Engineering Specifications
8. Forged Heads Quality and Testing Protocols
Modern forged heads undergo comprehensive quality verification to ensure reliability in critical applications:
- Material Certification: Full traceability from melt to final component with chemical analysis and mechanical property verification.
- Non-Destructive Examination: 100% ultrasonic testing (UT) for internal integrity, liquid penetrant testing (PT) or magnetic particle testing (MT) for surface defects.
- Dimensional Verification: Laser scanning and traditional measurement to ensure compliance with design specifications.
- Pressure Testing: Hydrostatic or pneumatic testing at 1.5 times design pressure to verify structural integrity.
- Heat Treatment Verification: Review of thermal processing records and potentially mechanical testing of witness coupons.
Industry Standard: ASME Section VIII Division 1 mandates specific NDE requirements based on service conditions, with more stringent requirements for lethal service, cyclic operation, or low-temperature applications.
9. Forged Heads Installation and Maintenance Considerations
- Handling Procedures: Special attention to prevent impact damage to sealing surfaces during installation.
- Alignment Requirements: Precise positioning to avoid imposed stresses on connecting nozzles and piping.
- Bolting Procedures: Controlled bolt tightening sequences for flanged connections to ensure even gasket compression.
- Inspection Intervals: Regular internal and external inspections per API 510 or similar standards based on service severity.
- Replacement Criteria: Evaluation based on measured thickness, condition of sealing surfaces, and results of NDE examinations.
Forged Heads
- Forged Heads represent the optimal solution for pressure boundary components in demanding heat exchanger applications where reliability, safety, and performance are critical.
- The forging manufacturing process delivers superior mechanical properties, particularly for high-pressure, high-temperature, corrosive, or safety-critical applications.
- Proper design requires careful consideration of materials, pressure ratings, connection methods, and compliance with international standards (ASME, TEMA, PED).
- Regular non-destructive testing (NDT) and pressure testing during maintenance cycles are essential to ensure continued integrity throughout the service life.
- Advancements in forging technology continue to expand the application boundaries for forged heads in extreme service environments across multiple industries.
