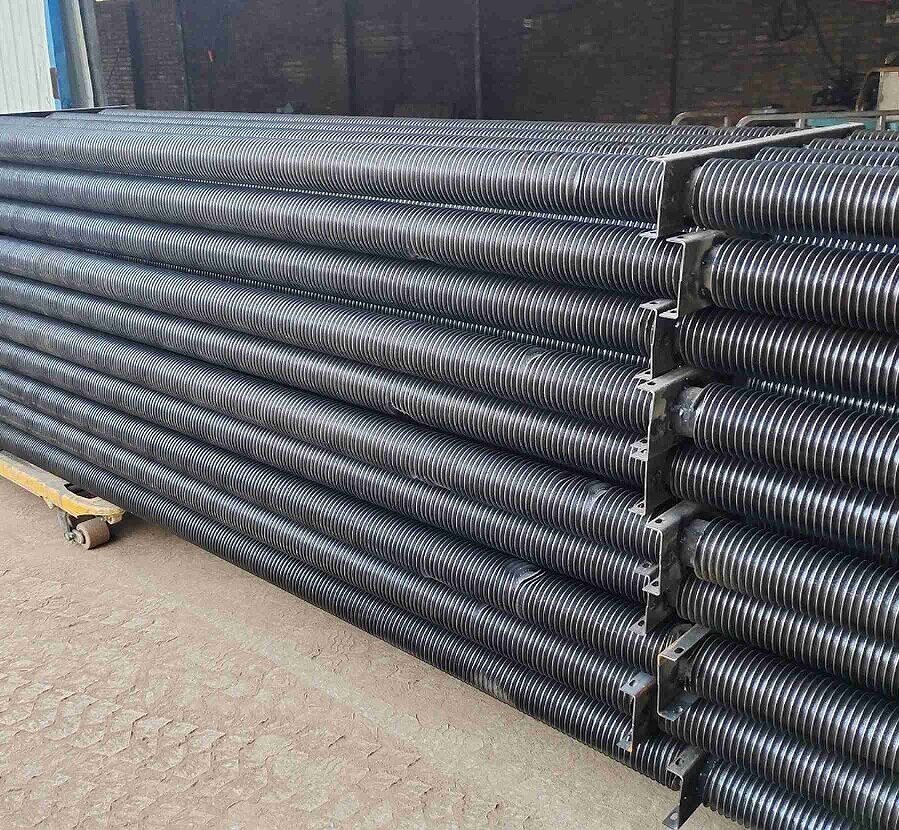

High frequency welded finned tubes used in the drying equipment
High Frequency Welded (HFW) finned tubes represent a significant advancement in heat exchange technology for industrial drying applications. This comprehensive guide explores their specifications, materials, manufacturing processes, and performance characteristics to help engineers and procurement specialists make informed decisions.
1. HFW Finned Tubes in Drying Equipment
High-frequency welded finned tubes are specialized heat exchanger components extensively used in industrial drying systems. These tubes feature fins that are permanently bonded to the base tube through high-frequency electrical resistance welding, creating an efficient thermal transfer surface that significantly enhances drying performance.
The integration of HFW finned tubes in drying equipment has revolutionized industrial drying processes across multiple sectors. By increasing the effective heat transfer surface area by 8-20 times compared to bare tubes, these components enable faster, more uniform, and energy-efficient drying operations.
2. HFW Finned Tubes Technical Specifications and Design Parameters
The performance of HFW finned tubes in drying applications depends on precise specification parameters. Optimal design requires balancing heat transfer efficiency, pressure drop, material compatibility, and mechanical durability.
Tube Dimensions
Base tube diameters typically range from 1/2" to 4" (12.7mm to 101.6mm), with wall thicknesses between 1.2mm to 4mm depending on pressure requirements and material selection.
Fin Configuration
Fin heights vary from 5mm to 25mm, with thicknesses between 0.8mm to 3mm. Fin density typically ranges from 2 to 8 fins per inch (80 to 315 fins per meter).
Thermal Performance
Heat transfer coefficients range from 30-80 W/m²K for gas-to-liquid applications, with surface area expansion ratios of 8:1 to 20:1 compared to bare tubes.
Standard Specification Table
| Parameter | Standard Range | Optimal for Drying | Impact on Performance |
|---|---|---|---|
| Base Tube OD | 12.7 - 101.6 mm | 25.4 - 50.8 mm | Larger diameter improves flow but reduces velocity |
| Fin Height | 5 - 25 mm | 12 - 18 mm | Higher fins increase surface area but may trap debris |
| Fin Thickness | 0.8 - 3.0 mm | 1.2 - 2.0 mm | Thicker fins improve durability but reduce fin efficiency |
| Fins Per Inch | 2 - 8 FPI | 4 - 6 FPI | Higher density increases area but raises pressure drop |
| Fin-Tube Bond Strength | 25 - 45 MPa | ≥35 MPa | Stronger bond ensures long-term thermal efficiency |
3. HFW Finned Tubes Material
Material selection for HFW finned tubes in drying equipment is critical for performance, longevity, and cost-effectiveness. The choice depends on operating temperatures, environmental conditions, and the nature of materials being dried.
| Material Combination | Max Temperature | Corrosion Resistance | Thermal Conductivity | Cost Factor | Recommended Applications |
|---|---|---|---|---|---|
| Carbon Steel Tube + CS Fins | 400°C | Low | 45-55 W/mK | 1.0x | Non-corrosive environments, industrial air heating |
| Stainless Steel 304 Tube + SS Fins | 650°C | Medium | 15-20 W/mK | 3.5x | Food processing, moderate chemical exposure |
| Stainless Steel 316 Tube + SS Fins | 750°C | High | 15-20 W/mK | 4.5x | Chemical, pharmaceutical, marine environments |
| CS Tube + Aluminum Fins | 250°C | Medium | 180-200 W/mK | 1.8x | Low-temperature drying, HVAC applications |
| All Copper Construction | 200°C | Medium | 380-400 W/mK | 6.0x | Specialized applications requiring maximum heat transfer |
4. HFW Finned Tubes Manufacturing Process and Quality Control
High-frequency welding represents the most advanced method for attaching fins to base tubes. This process involves using high-frequency electrical current to create localized heat at the fin-tube interface, resulting in a metallurgical bond without filler materials.
Key Manufacturing Steps:
- Material Preparation: Base tubes are cleaned and straightened, while fin stock is precision slit to required dimensions.
- Fin Formation: Continuous strip material is formed into fins with the appropriate profile and geometry.
- HFW Process: Fins are fed onto the base tube while high-frequency current (200-400 kHz) creates instantaneous welding at the contact points.
- Quality Verification: Each tube undergoes non-destructive testing, including visual inspection, bond strength tests, and dimensional verification.
- Surface Treatment: Application of protective coatings or finishes as required by the application.
Technical Insight: The HFW process creates a bond strength typically exceeding 35 MPa, significantly higher than the 15-20 MPa achieved with mechanical expansion methods. This results in superior thermal performance over the tubes operational lifetime.
5. HFW Finned Tubes Performance Characteristics and Advantages
Enhanced Heat Transfer
Surface area increases of 8-20x compared to bare tubes, with heat transfer coefficients improved by 150-400% depending on application parameters.
Superior Bond Integrity
Metallurgical bonding ensures continuous thermal contact between fin and tube, eliminating performance degradation over time.
Corrosion Resistance
Appropriate material selection provides excellent performance in challenging environments, including those with moisture and chemical exposure.
Energy Efficiency
Optimized thermal performance reduces energy consumption in drying operations by 15-30% compared to conventional heating elements.
Mechanical Durability
Robust construction withstands thermal cycling, vibration, and mechanical stress common in industrial drying applications.
Customizable Design
Flexible specifications allow optimization for specific drying requirements, temperatures, and space constraints.
Performance Comparison Table
| Parameter | HFW Finned Tubes | L-Finned Tubes | Extruded Fins | Bare Tubes |
|---|---|---|---|---|
| Heat Transfer Efficiency | Excellent | Good | Very Good | Poor |
| Bond Strength (MPa) | 35-45 | 15-25 | 40-50 | N/A |
| Max Operating Temperature | 750°C | 350°C | 300°C | Dependent on material |
| Corrosion Resistance | Excellent | Good | Very Good | Dependent on material |
| Fouling Resistance | Good | Fair | Very Good | Poor |
| Relative Cost | Medium-High | Low | High | Lowest |
6. Application Areas and Industry
High-frequency welded finned tubes find diverse applications across multiple industries where efficient heat transfer in drying processes is critical:
Industrial Drying Systems
In industrial drying applications, HFW finned tubes provide uniform heat distribution for materials including food products, paper, textiles, and wood. Their high efficiency reduces drying times by 20-40% compared to conventional systems.
Agricultural Processing
For grain, vegetable, and fruit drying operations, these tubes offer gentle yet efficient heat transfer that preserves product quality while achieving moisture content targets. Stainless steel constructions are preferred for food safety compliance.
Chemical and Pharmaceutical
In chemical processing and pharmaceutical manufacturing, HFW finned tubes with corrosion-resistant materials (typically SS316L or higher grades) ensure product purity and withstand aggressive chemical environments.
Environmental Applications
Wastewater treatment facilities and air pollution control systems utilize these tubes for sludge drying and flue gas conditioning, where their durability in corrosive environments is particularly valuable.
Specialized Drying Operations
Additional applications include mineral processing, plastic pellet drying, and specialized manufacturing processes requiring precise temperature control and efficient moisture removal.
HFW Finned Tubes Technical
High frequency welded finned tubes represent the optimal solution for industrial drying applications requiring high thermal efficiency, durability, and reliability. Their superior bond strength, customizable configurations, and material flexibility make them suitable for diverse operating conditions across multiple industries.
When specifying HFW finned tubes for drying equipment, engineers should consider operating temperatures, environmental conditions, material compatibility, and thermal performance requirements to select the optimal configuration for their specific application.
For detailed technical specifications or custom engineering solutions for your drying application requirements, consult with our technical team or visit our resource center for additional technical documentation.
