ASTM A333 for Seamless and Welded Steel Pipe for Low-Temperature Service
ASTM A334 for Seamless and Welded Carbon and Alloy Steel Tubes for Low-Temperature Service
Fundamentally, both ASTM A333 and A334 are designed for low-temperature applications. However, they differ significantly in their intended uses.
A333 is primarily designed for low-temperature pressure vessel piping systems and fluid transportation pipelines, while A334 is tailored for low-temperature heat exchanger tubes, clearly distinguishing the functional requirements between transport pipes and heat exchanger tubes. In practical engineering, this distinction reduces the risk of selection errors—A333 pipes ensure transport safety, while A334 tubes optimize heat exchange efficiency.
Steel Pipe Insight
As a steel pipe specialist with over 20 years of experience, Ive observed that the critical distinction between A333 and A334 lies in their application-specific design. While both standards address low-temperature challenges, A333 prioritizes pressure containment and fluid transport integrity, whereas A334 focuses on thermal efficiency and heat transfer performance. This fundamental difference impacts material selection, manufacturing processes, and quality control measures throughout the production lifecycle.
ASTM A333 VS ASTM A334 Application
| Feature | ASTM A333 | ASTM A334 |
|---|---|---|
| Primary Use | Low-temperature fluid transport pipelines | Low-temperature heat exchanger tubes |
| Applicable Systems | Pressure vessel piping, transport pipelines | Heat exchangers Condensers Evaporators |
| Typical Media | LNG Liquid nitrogen Liquid oxygen |
Refrigerants Process gases Liquid ethylene |
| Service Environment | Arctic pipelines Cryogenic equipment connections |
Refrigeration units, chemical heat exchange equipment |
| Design Focus | Impact toughness, pressure resistance | Thermal conductivity, thermal fatigue resistance |
However, both standards cover seamless and welded processes.
ASTM A333 VS ASTM A334 Dimensions
A333 primarily targets nominal pipe sizes, while A334 focuses on metric-sized pipes. Their outer diameter dimensions correspond as follows:
| NPS | ASTM A333 (mm) | ASTM A334 (mm) |
|---|---|---|
| 1/8 | 10.3 | 3.18 |
| 1/4 | 13.7 | 6.35 |
| 3/8 | 17.1 | 9.53 |
| 1/2 | 21.3 | 12.7 |
| 3/4 | 26.7 | 19.05 |
| 1 | 33.4 | 25.4 |
| 1-1/4 | 42.2 | 31.75 |
| 1-1/2 | 48.3 | 38.1 |
| 2 | 60.3 | 50.8 |
| 2-1/2 | 73 | 63.5 |
| 3 | 88.9 | 76.2 |
| 3-1/2 | 101.6 | 88.9 |
| 4 | 114.3 | 101.6 |
| 5 | 141.3 | 127 |
| 6 | 168.3 | 152.4 |
| 8 | 219.1 | 203.2 |
| 10 | 273.1 | 254 |
| 12 | 323.9 | 304.8 |
| 14 | 355.6 | 355.6 |
| 16 | 406.4 | 406.4 |
| 18 | 457.2 | 457.2 |
| 20 | 508 | 508 |
| 22 | 558.8 | 558.8 |
| 24 | 609.6 | 609.6 |
ASTM A333 VS ASTM A334 Wall Thickness Specifications
According to the standards, A333 pipes generally use average wall thickness, indicated by schedule numbers, while A334 tubes use minimum wall thickness.
Wall Thickness Considerations
The wall thickness specification difference between A333 (average wall) and A334 (minimum wall) reflects their distinct operational requirements. A333s average wall approach provides consistent pressure containment for fluid transport, while A334s minimum wall specification prioritizes heat transfer efficiency in heat exchanger applications. Engineers must account for this difference when calculating pressure ratings and thermal performance.
ASTM A333 VS ASTM A334 Materials
A333 and A334 share a common grading system (Grade 1 to Grade 11), but the same grade must meet different technical requirements under each standard.
1. Chemical Composition
The chemical composition requirements for the same grade are essentially consistent across both standards.
| Grade | C | Mn | P | S | Si | Ni | Cr | Mo | Cu | Co |
|---|---|---|---|---|---|---|---|---|---|---|
| Grade 1 | ≤0.3 | 0.40-1.06 | ≤0.025 | ≤0.025 | ||||||
| Grade 3 | ≤0.19 | 0.31-0.64 | ≤0.025 | ≤0.025 | 0.18-0.37 | 3.18-3.82 | ||||
| Grade 6 | ≤0.3 | 0.29-1.06 | ≤0.025 | ≤0.025 | ≥0.10 | |||||
| Grade 7 | ≤0.19 | ≤0.9 | ≤0.025 | ≤0.025 | 0.13-0.32 | 2.03-2.57 | ||||
| Grade 8 | ≤0.13 | ≤0.9 | ≤0.025 | ≤0.025 | 0.13-0.32 | 8.40-9.60 | ||||
| Grade 9 | ≤0.2 | 0.40-1.06 | ≤0.025 | ≤0.025 | 1.60-2.24 | 0.75-1.25 | ||||
| Grade 11 | ≤0.1 | ≤0.6 | ≤0.025 | ≤0.025 | ≤0.35 | 35.0-37.0 | ≤0.5 | ≤0.5 | ≤0.5 |
A333 has two additional grades not found in A334: Grade 4 and Grade 10.
| Grade | C | Mn | P | S | Si | Ni | Cr | Mo | Cu | Al | V | Nb |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade 4 | ≤0.12 | 0.50-1.05 | ≤0.025 | ≤0.025 | 0.08-0.37 | 0.47-0.98 | 0.44-1.01 | 0.40-0.75 | 0.04-0.30 | |||
| Grade 10 | ≤0.2 | 1.15-1.50 | ≤0.035 | ≤0.015 | 0.10-0.35 | ≤0.25 | ≤0.15 | ≤0.05 | ≤0.15 | ≤0.06 | ≤0.12 | ≤0.05 |

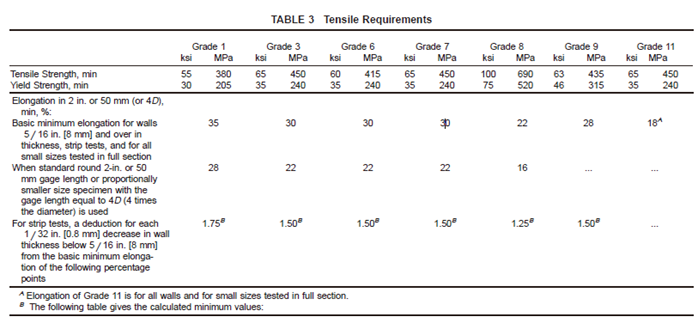

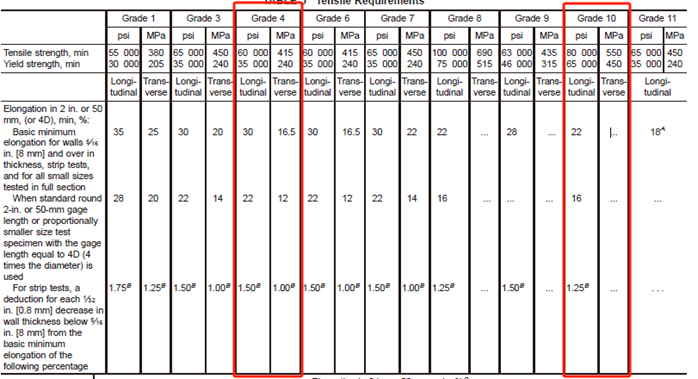

2. Mechanical Properties
The basic mechanical properties (tensile strength, yield strength) required for the same grade of steel pipe are identical in both A333 and A334 standards.
Material Selection Guidance
When selecting between A333 and A334 grades, consider both the mechanical properties and the specific application environment. For cryogenic fluid transport, A333 Grade 6 or 3 offers excellent impact toughness at low temperatures. For heat exchanger applications requiring corrosion resistance alongside low-temperature performance, A334 Grade 9 provides a balanced solution with its nickel and molybdenum content. Always verify the specific heat treatment requirements for your chosen grade, as these significantly affect final material properties.
ASTM A333 VS ASTM A334 Manufacturing Process
ASTM A333 specifies that Grade 4 steel pipes must be manufactured using a seamless process. For other grades, both seamless and welded processes are permitted.
ASTM A333 VS ASTM A334 Heat Treatment Process
Heat treatment is crucial for ensuring low-temperature toughness. Both standards require normalizing, annealing, or stress-relief heat treatment for steel pipes, but specific parameters differ.
Normalizing:
A333 requires heating to no less than 1500°F [815°C].
A334 requires heating to no less than 1550°F [845°C].
In the A333 standard, for the seamless process only, reheat and control hot working and the temperature of the hot-finishing operation to a finishing temperature range from 1550 to 1750°F [845 to 945°C]. A334 specifies this temperature range as 1550 to 1750°F [845 to 955°C].
Additionally, ASTM A333 specifies that Grade 1, 6, and 10 pipes may be heat-treated by heating to a uniform temperature of not less than 1500°F [815°C], followed by quenching in liquid and reheating to a suitable tempering temperature.
ASTM A333 VS ASTM A334 Impact Properties
Both A333 and A334 require steel pipes to pass low-temperature Charpy V-notch impact tests, except for Grade 11, which is exempt from this requirement.
Both standards specify longitudinal sampling for test specimens.
ASTM A333 VS ASTM A334 Mechanical Testing
Although both ASTM A333 and A334 are designed for low-temperature steel pipes, their application scenarios and performance requirements differ, directly influencing the scope of their mechanical testing programs.
| Item | ASTM A333 | ASTM A334 |
|---|---|---|
| Tension Test | ✔ Transverse or Longitudinal |
✔ |
| Flattening Test | ✔ | ✔ |
| Flare Test | ✔ For SML Tubes |
|
| Flange Test | ✔ For Welded Tubes |
|
| Hydrostatic Test | ✔ | |
| Reverse Flattening Test | ✔ | |
| Hardness Test | ✔ | |
| Impact Test | ✔ | ✔ |
Practical Application Recommendations
Based on extensive field experience, I recommend the following application guidelines:
- For LNG transportation pipelines in arctic environments, specify A333 Grade 6 with supplemental impact testing at the minimum design temperature.
- For cryogenic heat exchangers in chemical processing, A334 Grade 8 provides optimal thermal performance and corrosion resistance.
- When transitioning between piping systems (A333) and heat exchangers (A334), ensure proper material compatibility and consider thermal expansion differences.
- Always verify heat treatment certification for both A333 and A334 materials, as this critically affects low-temperature performance.
For specialized applications involving ASTM A333 VS ASTM A334 in enhanced heat transfer systems, consult with materials engineering specialists to optimize performance and longevity.
