Pulverized coal industrial boiler
The pulverized coal industrial boiler represents a revolutionary advancement in industrial combustion technology, offering unprecedented efficiency and environmental performance for large-scale thermal applications. By utilizing ultra-fine pulverized coal with particle sizes typically ranging from 50-200 microns, these systems achieve combustion efficiencies exceeding 98% while maintaining emissions well below regulatory thresholds.
This comprehensive guide explores the technical specifications, operational principles, and practical applications of modern pulverized coal industrial boilers, providing industrial operators with essential knowledge for evaluating, implementing, and optimizing these systems.
Pulverized Coal Combustion Technology
Pulverized coal industrial boilers have transformed conventional coal combustion through particle size optimization and advanced combustion engineering. The micronization of coal particles dramatically increases surface area exposure to oxygen, enabling near-complete combustion with minimal unburned carbon loss.
Fuel Innovation
Raw coal undergoes precise grinding to achieve optimal particle size distribution (typically 50-200 microns), increasing specific surface area by 300-500% compared to conventional crushed coal.
Clean Combustion Technology
Advanced low-temperature staged combustion and specialized low-NOx burners significantly reduce pollutant formation at the source, complemented by sophisticated post-combustion treatment systems.
Intelligent Control Systems
Integrated IoT technology enables fully automated operation, including real-time fuel-to-air ratio optimization, temperature modulation, and predictive maintenance scheduling.
Working Principle and Operational Process
Fuel Preparation Phase
The transformation of raw coal into precisely graded pulverized fuel involves several critical stages:
- Primary Crushing & Drying: Raw coal undergoes initial size reduction and moisture content optimization to prepare for fine grinding.
- Precision Grinding: Specialized coal mills with dynamic classifiers produce coal powder with tightly controlled particle size distribution.

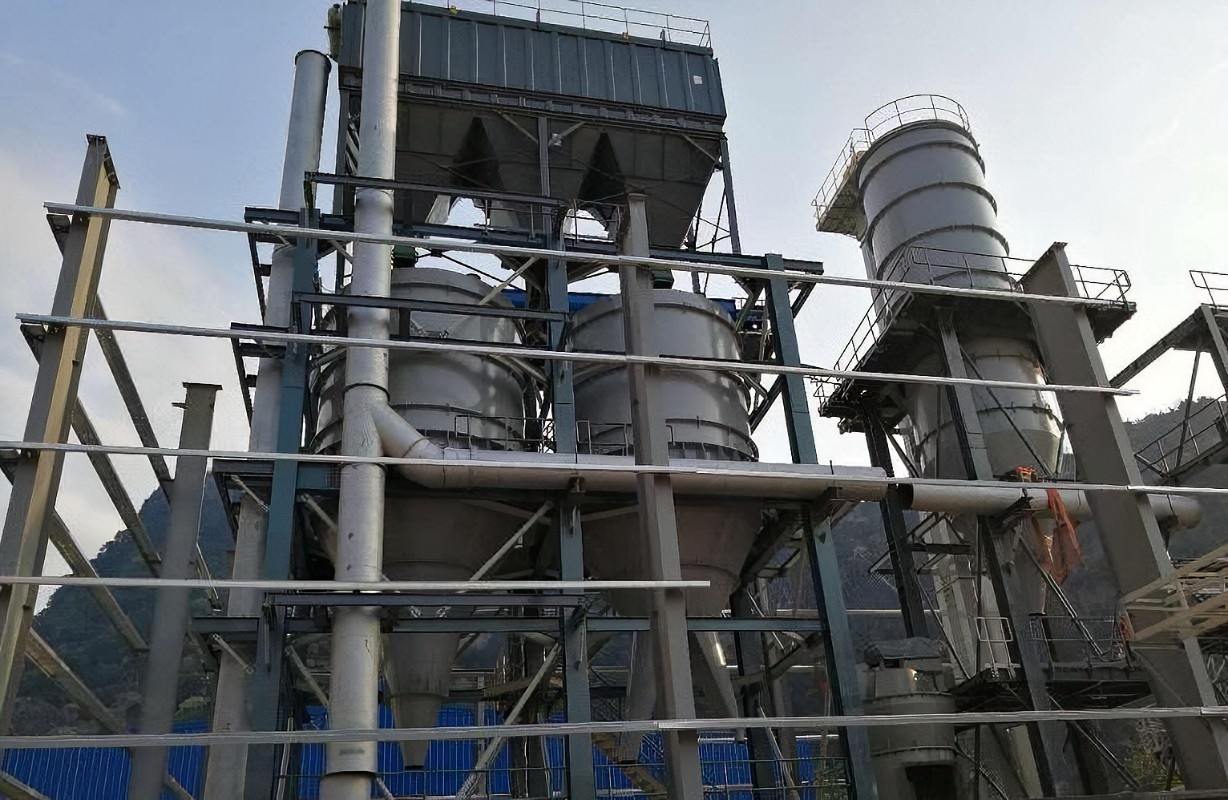

- Storage & Transport: The pulverized coal is stored in explosion-resistant silos and transported via pneumatic systems with precision metering for optimal combustion control.
Combustion Process
The combustion of pulverized coal represents a significant advancement over traditional coal firing methods:
- Fuel-Air Mixing: Precisely controlled coal-to-air ratios ensure optimal stoichiometric conditions for complete combustion.
- Turbulent Flame Formation: Specialized burners create highly turbulent flame patterns that maximize heat release and minimize temperature gradients.
- Staged Air Injection: Multi-stage air distribution (primary, secondary, and tertiary air streams) optimizes combustion efficiency while suppressing NOx formation.
- Temperature Management: Controlled combustion temperatures between 1100-1300°C maximize efficiency while minimizing slagging and fouling.
Energy Conversion Efficiency
The thermal energy released during combustion is transferred to working fluids with exceptional efficiency:
- Heat Transfer Surfaces: Advanced membrane water walls, superheaters, and economizers maximize heat absorption and transfer rates.
- Thermal Efficiency: Modern systems achieve thermal efficiencies exceeding 92%, significantly higher than traditional stoker-fired boilers (typically 75-85%).
- Working Fluid Options: Systems are designed for various applications including steam generation, thermal oil heating, and hot water production.
Environmental Compliance Systems
Comprehensive emission control systems ensure regulatory compliance and environmental stewardship:
- Particulate Control: High-efficiency baghouse filters or electrostatic precipitators reduce particulate emissions to ≤10mg/m³.
- SO₂ Removal: Wet or semi-dry flue gas desulfurization systems achieve SO₂ reduction rates exceeding 95%.
- NOx Abatement: Selective Catalytic Reduction (SCR) or Selective Non-Catalytic Reduction (SNCR) systems reduce nitrogen oxide emissions to ≤50mg/m³.
System Components and Technical Specifications
| System Module | Key Components | Functional Description | Technical Specifications |
|---|---|---|---|
| Fuel Preparation System | Vertical coal mill, Rotary dryer, Explosion-proof silo, Precision feeder | Complete coal processing, drying, storage and metered delivery system | Particle size: 50-200μm, Moisture: <2%, Capacity: 1-50t/h |
| Combustion System | Swirl-stabilized burner, Refractory furnace, Automatic ignition, Multi-stage air system | High-efficiency combustion with flame stability and low emissions | Combustion efficiency: ≥98%, Turn-down ratio: 3:1, Flame temp: 1100-1300°C |
| Heat Transfer System | Membrane water walls, Superheater, Economizer, Air preheater | Maximized thermal energy recovery and transfer to working fluid | Thermal efficiency: ≥92%, Steam capacity: 1-200t/h, Pressure: 0.7-13.7MPa |
| Emission Control System | Baghouse filter, Desulfurization tower, SCR/SNCR reactor, Monitoring stack | Multi-stage pollution control for regulatory compliance | PM: ≤10mg/m³, SO₂: ≤35mg/m³, NOx: ≤50mg/m³ |
| Control & Automation | DCS/PLC controllers, Sensor network, Remote monitoring, Data analytics | Fully automated operation with predictive maintenance capabilities | Load range: 30-110%, Auto-start time: 15min, Remote access: 24/7 |
Core Advantages and Operational Benefits
Energy Efficiency
Combustion efficiency ≥98% delivers 20-35% fuel savings compared to traditional chain grate boilers, with significantly reduced operating costs.
Environmental Performance
Comprehensive emission control systems ensure compliance with stringent environmental regulations, including ultra-low emission standards.
Operational Flexibility
Wide load adjustment range (30-110%) and rapid start-up capability (15 minutes) adapt to fluctuating production demands.
Fuel Versatility
Compatible with various coal types and capable of co-firing with biomass or waste-derived fuels for enhanced sustainability.
Technical Performance Metrics
- Thermal Efficiency: 92-95% (compared to 75-85% for traditional boilers)
- Combustion Efficiency: 98-99.5% (minimizing unburned carbon loss)
- Load Range: 30-110% of rated capacity without efficiency degradation
- Start-up Time: 10-15 minutes from cold conditions
- Availability Factor: >95% with proper maintenance
- Automation Level: Fully automated with remote monitoring capabilities
Industrial Applications and Implementation Considerations
Pulverized coal industrial boilers serve diverse industrial sectors with reliable thermal energy supply:
- Power Generation: Utility and industrial power plants
- Chemical Industry: Process heating and steam generation
- Petroleum Refining: Crude oil heating and process steam
- Metallurgical Operations: Metal processing and heat treatment
- Pulp & Paper Manufacturing: Drying processes and chemical recovery
- Textile Industry: Dyeing, drying, and finishing operations
- Food Processing: Sterilization, cooking, and drying applications
- District Heating: Large-scale residential and commercial heating
Implementation Planning
Successful implementation of pulverized coal boiler systems requires careful consideration of several factors:
- Site Assessment: Evaluation of space requirements, fuel storage, and emission dispersion conditions
- Fuel Analysis: Comprehensive testing of available coal types to optimize combustion parameters
- Regulatory Compliance: Navigation of local emission standards and permitting requirements
- Economic Analysis: Lifecycle cost assessment including capital investment, operating costs, and maintenance requirements
- Integration Planning: Coordination with existing thermal distribution systems and process requirements
Future Developments and Technological Trends
The evolution of pulverized coal boiler technology continues with several promising developments:
- Carbon Capture Integration: Emerging technologies for post-combustion CO₂ capture and utilization
- Advanced Materials: High-temperature alloys and ceramics for improved efficiency and durability
- Digitalization: AI-powered optimization and predictive maintenance systems
- Hybrid Systems: Integration with renewable energy sources for enhanced flexibility
- Ultra-Supercritical Operation: Higher pressure and temperature cycles for improved efficiency
Need Professional Consultation on Pulverized Coal Boiler Systems?
Our engineering team specializes in the design, implementation, and optimization of advanced pulverized coal industrial boiler systems. Contact us for customized solutions tailored to your specific operational requirements and sustainability goals.
Pulverized coal industrial boilers represent the pinnacle of coal combustion technology, combining the economic advantages of coal with environmental performance that meets stringent regulatory standards. Through the integrated approach of "fuel micronization + clean combustion + intelligent control," these systems provide a viable pathway for industries to achieve their energy efficiency and sustainability objectives while maintaining competitive operational costs.
Particularly suitable for regions with established coal infrastructure but increasing environmental pressures, modern pulverized coal boilers offer a practical transition technology that balances economic viability with environmental responsibility. As technology continues to advance, these systems are poised to play a crucial role in the global energy landscape, providing reliable, efficient, and clean thermal energy for industrial applications worldwide.
