Thermal oil heaters, also known as thermal fluid heaters or hot oil heaters, are systems designed to heat a fluid (usually a synthetic oil or thermal oil) for industrial processes. These heaters are widely used in various industries where high temperatures are required for processes such as heating, drying, curing, and other applications. The key components of a thermal oil heater system include the heater itself, the thermal oil, and the associated control and safety systems.

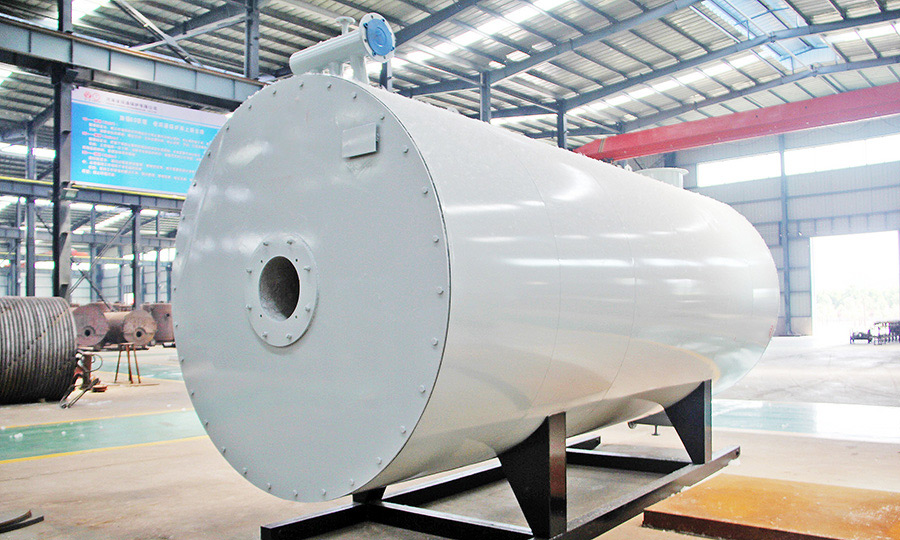

   - The heater unit is a crucial component and is designed to transfer heat to the thermal oil efficiently.

   - It typically consists of a combustion chamber or electric heating elements, where the heat is generated.

   - The type of fuel used for combustion can vary and includes natural gas, diesel, heavy oil, or even renewable energy sources.



   - Thermal oil, or heat transfer fluid, is a synthetic oil that can withstand high temperatures without degrading.

   - Common thermal oils include mineral oils, synthetic oils, and silicone oils.

   - The thermal oil circulates through the system, absorbing heat in the heater unit and then transferring it to the point of use.



   - A pump is used to circulate the thermal oil through the system, ensuring a continuous flow.

   - The circulation system is designed to maintain a consistent and controlled temperature throughout the process.



   - Heat exchangers transfer heat from the thermal oil to the medium being heated (air, water, or another fluid) in the industrial process.

   - There can be various types of heat exchangers, such as shell-and-tube or plate heat exchangers, depending on the specific application.



   - Temperature controllers and sensors are used to monitor and control the temperature of the thermal oil.

   - Safety features, such as pressure relief valves and temperature limits, are incorporated to prevent overheating or other potentially dangerous situations.



   - Thermal oil expands as it is heated, and an expansion tank is included to accommodate changes in volume and prevent excessive pressure within the system.



   - For heaters using combustion, an exhaust system is needed to safely remove combustion byproducts.



Thermal oil heaters are known for their efficiency, precise temperature control, and versatility in various industrial applications. They are used in industries such as chemical processing, food and beverage, oil and gas, pharmaceuticals, textiles, and more. The choice of a thermal oil heater depends on factors like the required temperature range, the heat transfer fluid, and the specific needs of the industrial process. Regular maintenance and adherence to safety guidelines are essential for the safe and efficient operation of thermal oil heater systems.
