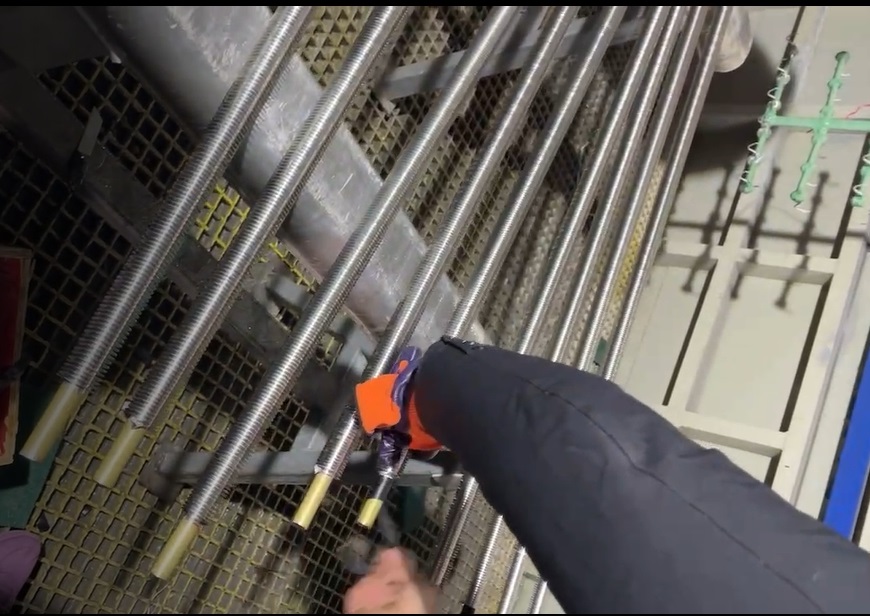

A Tin-plated finned tube is a type of heat exchange component used in various industrial applications. It consists of a tube with fins attached to its surface, and the tube is coated with a layer of tin. A tin-plated finned tube is a type of piping component used for heat exchange and dissipation, characterized by superior thermal conductivity and corrosion resistance. Here is a comprehensive introduction to Tin-plated Finned Tubes:





1. Base Material: Tin-plated Finned Tubes typically utilize high thermally conductive metals such as stainless steel, copper, or aluminum as the base material to ensure excellent heat transfer properties.



2. Finned Design: Fins are a crucial component of Tin-plated Finned Tubes, designed to increase the tubes surface area and enhance heat exchange efficiency. The shape and density of the fins can be adjusted according to specific application requirements.



3. Tin Plating: The tubes surface is coated with a layer of tin through the process of tin-plating. This tin layer not only improves the tubes corrosion resistance but also enhances its thermal conductivity.





1. Material Preparation: Suitable metal material is chosen and processed into the desired shape and dimensions for the tube.



2. Fins Processing: Specialized equipment is used to cut and shape the tubes surface, forming the structure of the fins. This process may involve cutting, bending, welding, and other techniques.



3. Surface Treatment: Tin-plating is applied to the tubes surface, creating a uniform layer of tin through chemical reactions or electrochemical methods.



4. Quality Control: Rigorous quality control is conducted at each step of the manufacturing process, checking the dimensions, shape, welds, and the quality of the tin layer on the fins.



5. Assembly: The processed finned tubes are assembled with other components to create the final product.





1. Heat Exchangers: Tin-plated Finned Tubes are commonly used in heat exchangers to provide efficient heat transfer for cooling or heating fluids.



2. HVAC Systems: Widely employed in air conditioning and refrigeration systems, these tubes are used in condensers and evaporators to optimize system performance.



3. Chemical Industry: Due to their corrosion resistance and thermal conductivity, Tin-plated Finned Tubes find applications in heat dissipation and heat exchange processes in the chemical industry.





1. Superior Thermal Conductivity: The finned design and the thermal conductivity of tin make Tin-plated Finned Tubes highly efficient in heat transfer.



2. Corrosion Resistance: The tin layer enhances the tubes resistance to corrosion, extending its lifespan.



3. Versatile Applications: Suitable for various fields, including industrial cooling, heat exchange, and HVAC applications.



In summary, Tin-plated Finned Tubes represent an efficient solution for heat dissipation and heat exchange, playing a crucial role in diverse industrial applications through their superior design and manufacturing processes.
