U Bend ASTM A209 Alloy Steel Boiler Tube|ASTM A209 T1 Tube

U Bend ASTM A209 Alloy Steel Boiler Tube is specifically designed for use in boiler systems where high-temperature and high-pressure conditions are prevalent. The U-shaped bend in the tube enhances its functionality in certain applications.

Description

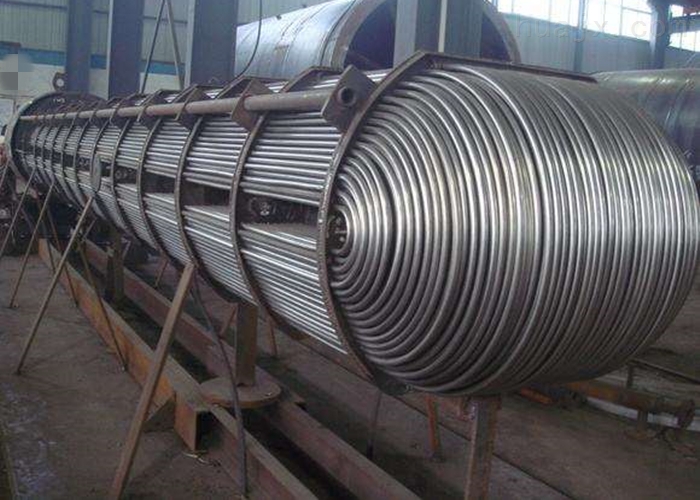

U Bend ASTM A209 Alloy Steel Boiler Tube

The U Bend ASTM A209 Alloy Steel Boiler Tube is specifically designed for use in boiler systems where high-temperature and high-pressure conditions are prevalent. The U-shaped bend in the tube enhances its functionality in certain applications. ASTM A209: ASTM A209 is a specification that covers seamless carbon-molybdenum alloy-steel boiler and superheater tubes. These tubes are designed for high-temperature service. U-shaped Bend: The tube is configured with a U-shaped bend, forming a curve resembling the letter "U." This design is often employed for special applications, such as accommodating specific pipeline layouts in boiler systems. The U-shaped bend provides increased surface area for heat exchange.

U Bend ASTM A209 Alloy Steel Boiler Tube Specifications:

- Standard: ASTM A209

- Material Grade: T1, T1a, T1b

- OD (Outer Diameter): 10mm~203mm

- WT (Wall Thickness): 2.0mm~25mm

- Length: 5.8-12m or as per customer requirements

- Technique: Seamless

- Package: Oil dipped or black painted surface, packed in seaworthy bags, hexagonal bundled.

U Bend ASTM A209 Alloy Steel Boiler Tube Chemical Composition:

	C	Mn	P	S	Si	Mo
T1	0.10-0.20	0.30-0.80	≤0.025	≤0.025	0.10-0.50	0.44-0.65
T1a	0.15-0.25	0.30-0.80	≤0.025	≤0.025	0.10-0.50	0.44-0.65
T1b	=0.14	0.30-0.80	≤0.025	≤0.025	0.10-0.50	0.44-0.65

U Bend ASTM A209 Alloy Steel Boiler Tube Mechanical Properties:

Grade	T1	T1a	T1b
Tensile Strength min Ksi(Mpa)	55(380)	60(415)	43(365)
Yield Strength Min Ksi(Mpa)	30(205	32(220)	28(195)
Elongation in 2in or 50mm min%	30	30	30

U Bend ASTM A209 Alloy Steel Boiler Tube Heat Treatment:

- Hot finished and cold finished tubes shall be heat treated at a temperature of at least 650°C.

- Full annealed, isothermal annealed, or normalized and tempered condition at the option of the manufacturer, with a minimum tempering temperature not less than 650°C.

U Bend ASTM A209 Alloy Steel Boiler Tube Mechanical Tests Required:

- Tension test

- Flattening test

- Hardness test

- Hydrostatic or Nondestructive Electric test

U Bend ASTM A209 Alloy Steel Boiler Tube Usage:

1. Boiler Systems: These tubes are primarily used in boiler systems for the generation of steam. The alloy steel construction ensures the tube can withstand the elevated temperatures and pressures associated with the boiler operation.

2. Heat Exchangers: The U-shaped bend in the tube provides increased surface area, making it suitable for use in heat exchangers. The configuration allows for efficient heat transfer, contributing to the overall effectiveness of the heat exchange process.

3. Specialized Piping Layouts: The U-shaped bend is advantageous in scenarios where a specific piping layout is required. This design flexibility enables the tube to adapt to unique configurations within boiler systems.

4. Power Plants: These tubes find application in power plants, particularly in boilers and superheaters. The alloy steel composition ensures durability and reliability under the demanding conditions present in power generation facilities.

5. Industrial Heating Systems: The tubes may be utilized in various industrial heating systems where the transfer of heat is critical. The alloy steel construction ensures longevity and resistance to corrosion in such environments.

6. High-Pressure Environments: Given the alloy steels capability to handle high pressures, these tubes are suitable for applications where maintaining structural integrity under elevated pressure conditions is crucial.

U Bend ASTM A209 Alloy Steel Boiler Tube is an alloy steel tube that adheres to the ASTM A209 standard. Its distinctive feature is the U-shaped bend, making it suitable for applications that require a specific pipe layout while maintaining the high-temperature and high-pressure performance characteristic of alloy steel in boiler environments. Its important to note that the specific usage may vary depending on the requirements of the particular boiler system or industrial application. The U-shaped bend design makes these tubes versatile for specific piping needs and enhances their efficiency in heat transfer applications.
