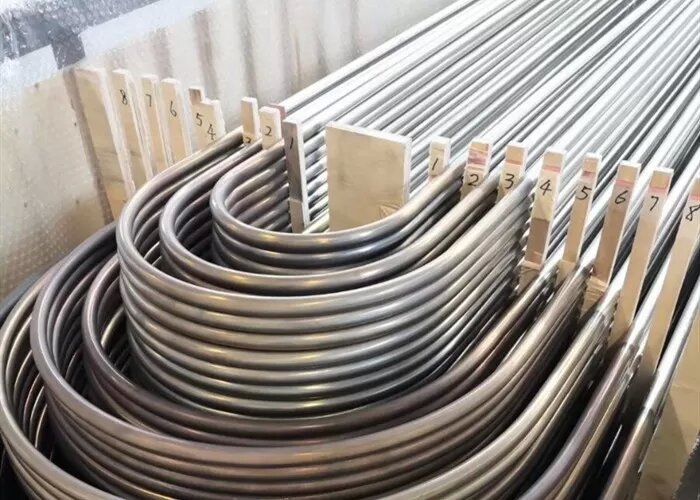

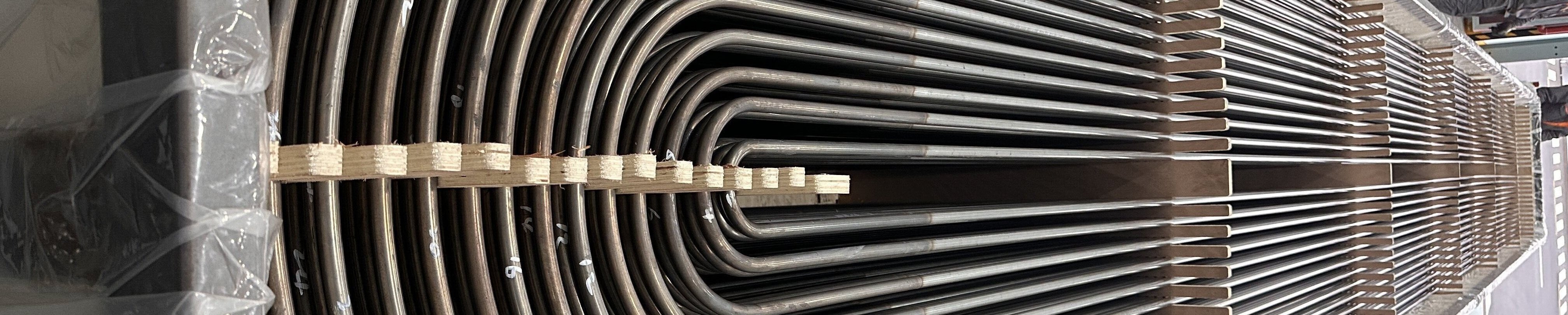

U-bend Feedwater Heater Tubes

U-bend feedwater heater tubes are an integral component of power plants, particularly in steam power plants, and are used for heating the feedwater that goes into the boiler.

Description

What is U-bend feedwater heater tubes?

U-bend feedwater heater tubes are an integral component of power plants, particularly in steam power plants, and are used for heating the feedwater that goes into the boiler. The primary purpose of feedwater heaters is to improve the overall efficiency of the power generation process by preheating the water that will be used in the steam generation cycle.

U-bend feedwater heater tubes are so named because of their U-shaped configuration. The U-bend design allows for a continuous flow of water through the tubes while maximizing the surface area available for heat transfer. The feedwater, which is usually cold, flows through one side of the U-bend, while the high-temperature steam or hot condensate from the steam turbine flows through the other side. As the two fluids flow in opposite directions, heat is transferred from the hot side to the cold side, preheating the feedwater.

The benefits of using U-bend feedwater heater tubes include:

1. Improved efficiency: By preheating the feedwater before it enters the boiler, the power plant can reduce the amount of fuel required to produce the same amount of steam. This leads to improved overall thermal efficiency.

2. Reduced thermal stress: The U-bend design helps distribute thermal stresses more evenly, which can lead to longer tube life and reduced maintenance costs.

3. Compact design: U-bend tubes can be more space-efficient compared to other designs, making them suitable for various power plant layouts.

4. Better temperature control: U-bend heaters can provide precise control over the feedwater temperature, which is crucial for optimizing power plant performance.

The production standards and main material grades for U-bend feedwater heater tubes can vary depending on the specific requirements of the power plant, industry regulations, and the materials used. Generally, these tubes are designed to withstand high-temperature and high-pressure environments, and their production standards and material grades are chosen to meet those requirements. Here is a general overview:

U-bend feedwater heater tubes Produce Standards:

- ASTM Standards: The American Society for Testing and Materials (ASTM) provides various standards for the manufacturing and testing of materials used in U-bend feedwater heater tubes. Specific ASTM standards that may be relevant include:

- ASTM A688/A688M - Standard Specification for Seamless and Welded Austenitic Stainless Steel Feedwater Heater Tubes

- ASTM A803/A803M - Standard Specification for Seamless and Welded Ferritic Stainless Steel Feedwater Heater Tubes

- ASTM A556/A556M - Standard Specification for Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes

- ASME Standards: The American Society of Mechanical Engineers (ASME) Boiler and Pressure Vessel Code includes standards related to pressure vessels and feedwater heaters, which may be applicable for U-bend tubes in power plants. For example, ASME Boiler and Pressure Vessel Code Section II, Section III, and Section VIII may provide guidelines for material selection and manufacturing.

- International Standards: Depending on the location and international regulations, other standards such as EN (European), JIS (Japanese), or ISO (International Organization for Standardization) standards may also be relevant.

- Industry-specific Standards: Certain industries or organizations may have their own specific standards for U-bend feedwater heater tubes, especially in nuclear or critical applications.

U-bend feedwater heater tubes Main Material Grades:

- Stainless Steel: Stainless steel is a common material choice for U-bend feedwater heater tubes due to its corrosion resistance and durability. Common stainless steel grades include 304, 304L, 316, and 316L, among others.

- Ferritic Stainless Steel: In applications where resistance to chloride stress corrosion cracking is important, ferritic stainless steel grades like 439 or 444 may be used.

- Carbon Steel: Carbon steel tubes can be used in less corrosive environments where high-temperature strength is required. Common carbon steel grades include ASTM A179, A192, and A210.

- Alloy Steel: Alloy steel tubes with specific alloying elements can be used for enhanced properties, such as increased high-temperature strength and corrosion resistance.

- Duplex and Super Duplex Stainless Steel: In more demanding applications, duplex and super duplex stainless steel grades may be used due to their excellent corrosion resistance and strength.

The choice of material grade depends on factors like the specific operating conditions, temperature, pressure, and the environment in which the U-bend feedwater heater tubes will be used. Its essential to consult the relevant standards and work with materials engineers to select the most suitable material and production standards for your specific application. Additionally, local regulations and industry practices may influence the selection of standards and materials.

These U-bend feedwater heater tubes are made from materials that can withstand high-temperature and high-pressure environments, such as stainless steel or other corrosion-resistant alloys. Regular inspection, maintenance, and cleaning are necessary to ensure their continued efficiency and safe operation.

U-bend feedwater heater tubes play a vital role in the energy industry, helping to increase the efficiency of power generation by preheating the feedwater and reducing the consumption of fuel in steam power plants.
