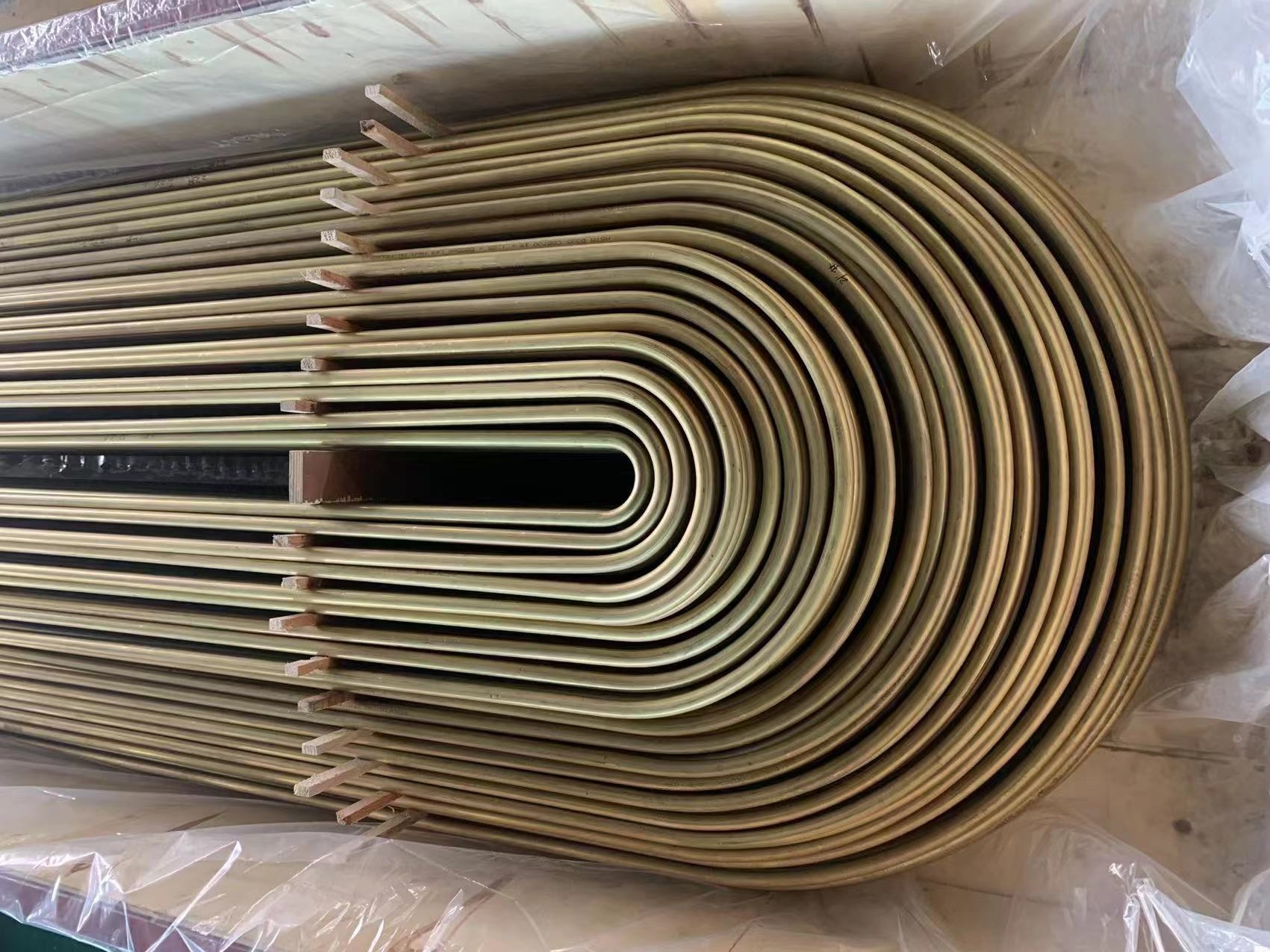

What is U-shaped monel 400 Tube Tube?

A U-shaped Monel 400 tube is a type of tubing made from Monel 400 alloy that is bent or shaped in the form of a "U" to serve specific purposes in various applications. Monel 400 is a nickel-copper alloy known for its excellent corrosion resistance, high strength, and good mechanical properties at both high and low temperatures. It is often used in industries such as marine, chemical processing, and oil and gas due to its ability to withstand corrosive environments.The structure of monel 400 (UNS N04400, NiCu30) alloy is a high-strength single-phase solid solution, which is a nickel based corrosion resistant alloy used in industry very early. Monel 400 (with good comprehensive performance and wide application range, it has become an indispensable alloy due to its good corrosion resistance. Monel 400 is mainly composed of Ni, 30% Cu and a small amount of Fe (1% - 2%).

U-shaped Monel 400 tubes are commonly used in various heat exchange equipment, boiler feed water heaters, pipelines, containers, pumps, shafts, etc. in petroleum and chemical processing, seawater desalination equipment, salt production equipment, propeller shafts, Gasoline and water tanks, etc.

U-shaped Monel 400 Tube|B163 UNS N04400 Tube Chemical Composition

%	C	Si	Mn	Ni	Cu	Fe
Min				63	28
Max	0.3	0.5	2		34	2.5

U-shaped Monel 400 Tube|B163 UNS N04400 Tube corresponding grade

Physical properties of U-shaped Monel 400 Tube|B163 UNS N04400 Tube

Mechanical properties of U-shaped Monel 400 Tube|B163 UNS N04400 Tube at room temperature

U-shaped Monel 400 Tube|B163 UNS N04400 Tube Usages

U-shaped Monel 400 Tube|B163 UNS N04400 Tube can be used in many industrial fields:

1. Seamless water pipes, steam pipes in power plants

2. Seawater exchangers and evaporators

3. Sulfuric acid and hydrochloric acid environments

4. Crude oil distillation

5. Deep sea Pump shafts and propellers for water use equipment

6. Equipment used in the nuclear industry to manufacture uranium extraction and isotope separation

7. Pumps and valves used in the manufacture of hydrochloric acid equipment

8. Marine structure surface, seawater desalination/salt/right oil refining Equipment, marine components, heat exchangers, chemical/seawater desalination plant valves, pump components, etc.

U-shaped Monel 400 Tube|B163 UNS N04400 Tube
