What is Tube Bend Radius?
Tube Bend Radius Definition
Tube Bend Radius refers to the distance from the center axis of the curved portion of a pipeline to the inner surface of the tube wall. This dimension is typically denoted by the symbol R and is expressed either in millimeters or as a multiple of the tube outside diameter (e.g., 1.5D, 3D, 5D). The bend radius is one of the most fundamental parameters in tube bending engineering because it directly affects formability, structural integrity, flow dynamics, and long-term service reliability.
Why does the bend radius matter so much? When a tube is bent, the outer wall undergoes tension while the inner wall experiences compression. A tighter bend radius amplifies these opposing forces, increasing the risk of wall thinning, wrinkling, ovality, and even cracking. Conversely, a larger radius reduces strain and produces a smoother, more uniform bend. Understanding this balance is essential for any engineer, fabricator, or procurement professional working with bent tubing.
Tube Bend Radius Selection
Selecting the correct tube bend radius involves evaluating multiple interrelated factors. No single value works for every application. The following sections break down the key variables that influence the optimal bend radius for a given tube bending project.
Pipe Diameter and Wall Thickness
For large-diameter pipes with substantial wall thickness, choosing a larger bend radius helps distribute bending stresses more evenly across the tube cross-section, reducing the peak stress at the extrados (outer curve) and intrados (inner curve). This improves the overall lifespan of the bend. Smaller-diameter tubes with thinner walls can often accommodate tighter radii, but care must be taken to avoid excessive ovality or buckling. As a rule of thumb, a radius of 3D or greater is recommended for heavy-wall, large-diameter tubes.
Material Properties
Different materials exhibit varying levels of ductility, work-hardening rates, and springback behavior. These properties directly affect the minimum bend radius that can be achieved without defects. For example, high-strength alloys and stainless steel grades with high work-hardening coefficients generally require larger bend radii to prevent cracking and excessive thinning. On the other hand, softer materials like copper and aluminum can be bent to smaller radii more readily. Material strength, elongation, and grain structure all play a role in determining the safe bending limit.
Working Pressure
The operating pressure of the pipeline system influences the required bend radius because internal pressure creates hoop and longitudinal stresses that combine with bending stresses. Larger bend radii help minimize stress concentrations, allowing the tube to withstand higher working pressures without deformation or leakage. For high-pressure hydraulic and pneumatic systems, engineers often specify bend radii of 3D or larger to maintain a conservative safety margin.
Application Environment
The environment in which the tube operates — including temperature, corrosiveness, vibration, and external loads — also affects bend radius selection. In high-temperature applications, thermal expansion and creep become important, and a larger bend radius can accommodate thermal movement more effectively. In corrosive environments, smooth bends with generous radii reduce fluid turbulence and minimize erosion-corrosion at the bend. For dynamic or vibrating systems, larger radii help reduce stress fatigue and extend service life.
In summary, choosing the appropriate pipe bend radius not only reduces the load on the pipeline, improving its lifespan, but also ensures the stability and safety of the pipeline. When selecting a pipe bend radius, factors such as pipe diameter, wall thickness, material, working pressure, and application environment should be comprehensively considered. Calculations and comparisons should be conducted to determine the optimal bend radius.
Tube Bend Radius by Material
Which bend radius is appropriate for a given material? The table below provides general guidelines for common tube materials. These values represent typical minimum recommended bend radii based on industry practice and material characteristics. Always consult material-specific bending data for critical applications.
| Material | Typical Minimum Bend Radius (R/D) | Remarks |
|---|---|---|
| Carbon Steel (low to medium strength) | 1.5D – 2.5D | Common for structural and general-purpose tubes |
| Stainless Steel (304, 316) | 2.5D – 4.0D | Higher work-hardening; larger radius reduces cracking risk |
| Copper & Copper Alloys | 1.0D – 1.5D | Excellent ductility allows tight bends |
| Aluminum & Aluminum Alloys | 1.5D – 2.5D | Depends on alloy temper; softer tempers allow smaller radii |
| Nickel Alloys (Inconel, Monel) | 3.0D – 5.0D | High strength and low ductility require generous radii |
| Titanium & Titanium Alloys | 3.5D – 5.0D | Very low ductility; mandrel bending often required |
| Duplex Stainless Steel | 3.0D – 4.5D | High strength combined with moderate ductility |
Tube Bend Radius by Pipe Diameter
How does pipe diameter influence the bend radius? Larger diameters generally require proportionally larger radii to maintain acceptable ovality and wall thinning. The table below offers practical guidance for selecting bend radii based on nominal pipe size (NPS) and wall thickness category.
| Nominal Pipe Size (NPS) | Outside Diameter (mm) | Recommended Bend Radius (mm) | Typical R/D Ratio |
|---|---|---|---|
| 1/2" | 21.3 | 32 – 64 | 1.5D – 3.0D |
| 1" | 33.4 | 50 – 100 | 1.5D – 3.0D |
| 2" | 60.3 | 90 – 180 | 1.5D – 3.0D |
| 3" | 88.9 | 135 – 270 | 1.5D – 3.0D |
| 4" | 114.3 | 170 – 340 | 1.5D – 3.0D |
| 6" | 168.3 | 250 – 500 | 1.5D – 3.0D |
| 8" | 219.1 | 330 – 660 | 1.5D – 3.0D |
| 10" | 273.0 | 410 – 820 | 1.5D – 3.0D |
Tube Bend Radius Performance Impact
Why does the bend radius affect overall system performance? The impact extends beyond manufacturability to include flow dynamics, thermal transfer, and mechanical durability. Understanding these relationships helps engineers make informed decisions that balance cost, performance, and reliability.
- Flow Efficiency: A larger bend radius reduces flow turbulence and pressure drop, allowing fluids to pass through the bend with minimal resistance. Smaller radii create eddies and recirculation zones that increase energy losses.

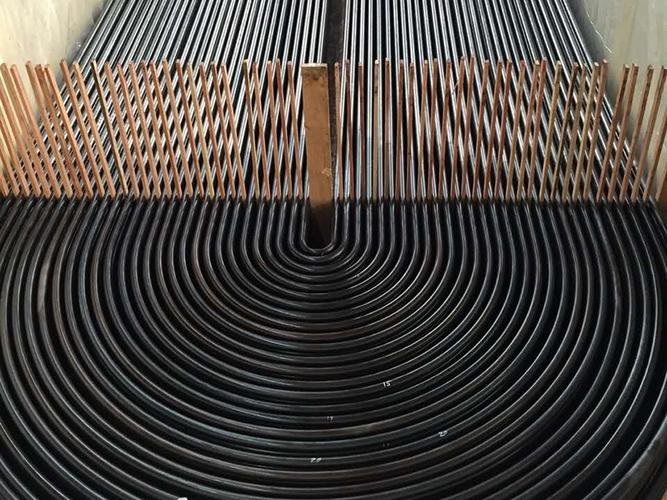

- Thermal Transfer: In heat exchanger applications, the bend radius influences the flow distribution across tube bundles. Uniform flow — achieved with generous radii — enhances heat transfer efficiency and reduces hot spots.
- Mechanical Durability: Bends with larger radii experience lower peak stresses during operation, which reduces fatigue cracking and extends service life. This is especially important in cyclic thermal and pressure loading conditions.
- Fabrication Cost: Tighter bends often require more advanced bending techniques (mandrel, rotary draw) and may increase scrap rates. Larger radii are generally easier and more economical to produce.
Tube Bend Radius Questions
The minimum recommended tube bend radius for carbon steel pipes typically ranges from 1.5 to 3 times the pipe outside diameter. For standard carbon steel, 1.5D is often the practical minimum, while 3D provides better flow characteristics and reduced stress concentration. However, specific applications may require different values based on wall thickness and operating conditions.
A smaller tube bend radius creates greater flow resistance due to increased turbulence and friction at the bend. This leads to higher pressure drops and reduced flow rates. Larger bend radii allow smoother flow transitions, minimizing pressure loss and maintaining better flow efficiency. For critical flow applications, engineers often recommend bend radii of 3D or greater to optimize flow performance.
Materials with lower ductility, such as high-strength alloys, stainless steels with high work-hardening rates, and non-ferrous metals like titanium and nickel alloys, generally require larger bend radii to prevent cracking or excessive thinning. For these materials, bend radii of 3D to 5D are often recommended. Conversely, ductile materials like copper and aluminum can accommodate smaller bend radii down to 1.5D or even 1D in some cases.
Tube bend radius directly impacts heat exchanger performance by influencing fluid flow patterns, pressure drop, and thermal transfer efficiency. An inappropriate bend radius can cause uneven flow distribution, increased fouling, and localized stress that accelerates tube failure. Proper bend radius selection ensures uniform flow, minimizes vibration, and extends the operational life of heat exchanger tubes.
Bend radius can be measured using several methods: a radius gauge (template), coordinate measuring machines (CMM), or optical comparators. For field inspections, a simple radius template set allows quick verification. For more precise measurement, digital protractors and laser measurement tools provide accurate readings. The measured radius should be compared against the specified design radius to ensure compliance.
Tube Bend Radius selection is a critical engineering decision that influences manufacturability, flow performance, mechanical integrity, and overall system reliability. By carefully evaluating material properties, pipe geometry, operating conditions, and application requirements, engineers can determine the most appropriate bend radius for each unique project. When in doubt, consulting with experienced tube bending specialists and conducting physical trials is always recommended.
