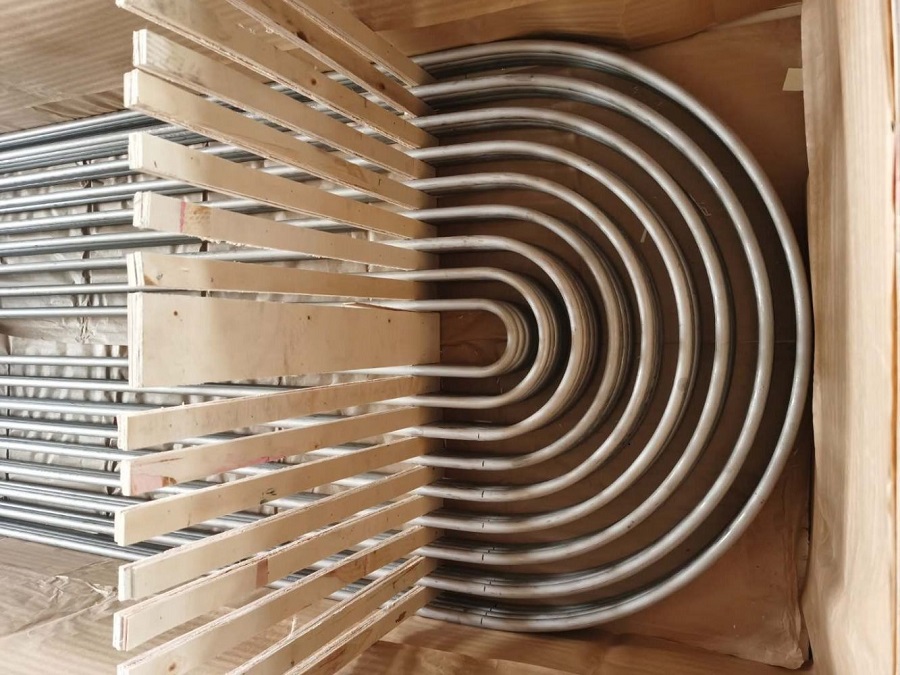

A U-bend heat exchanger tube is a type of heat exchanger tubing that is bent into a U-shaped configuration. This design is commonly used in heat exchangers for various applications. Here are some key points regarding U-bend heat exchanger tubes:





   - The production standards for U-bend heat exchanger tubes can vary based on the specific industry and application. However, common standards include:

     - ASTM A688/A688M: Standard Specification for Seamless and Welded Austenitic Stainless Steel Feedwater Heater Tubes.

     - ASTM A556/A556M: Standard Specification for Seamless Cold-Drawn Carbon Steel Feedwater Heater Tubes.





   - The material used for U-bend heat exchanger tubes depends on the application and the type of fluids involved. Common material grades include:

     - Stainless Steel: 304, 316, 321, etc.

     - Carbon Steel: A178, A179, A192, A210, A214, etc.

     - Alloy Steel: T5, T11, T22, T9, T91 etc.

     - Copper Alloys: C70600, C71500, etc.

     - Other Alloys: Inconel, Hastelloy, etc.





   - U-bend heat exchanger tubes find applications in various industries, including:

     - Power Generation: Condensers, feedwater heaters.

     - Chemical Processing: Petrochemical, refinery applications.

     - HVAC (Heating, Ventilation, and Air Conditioning): Air-cooled heat exchangers.

     - Oil and Gas: Process heat exchangers.





   - Space Efficiency: U-bend configurations allow for compact designs, making them suitable for applications where space is limited.

   - Improved Heat Transfer: The U-bend design optimizes the flow path of the fluids, enhancing heat transfer efficiency.

   - Ease of Installation: The U-bend design simplifies the installation process, especially in situations where a straight tube design might be impractical.

   - Cost Savings: U-bend heat exchangers can often be more cost-effective in terms of material usage and installation costs.





   - Fluid Compatibility: Ensure that the material of the U-bend tubes is compatible with the fluids being processed to prevent corrosion and other issues.

   - Temperature and Pressure Requirements: Select a material grade that can withstand the operating temperatures and pressures of the specific application.

   - Space Constraints: Choose U-bend heat exchangers when space is a critical factor in the system design.



U-bend heat exchanger tubes offer a space-efficient and effective solution for heat transfer applications in various industries. The selection of materials and adherence to production standards are crucial to ensuring the reliability and performance of U-bend heat exchangers in specific operating conditions.
