What is U Bend ASME SA 213 T22 Heat Exchanger Tube?

The ASME SA 213 T22 specification sets the standard for seamless ferritic and austenitic steel boiler tubes. This specification covers minimum wall thickness, size, and material requirements for these tubes. The T22 designation indicates that the tube is made from a chromium-molybdenum alloy steel with a minimum tensile strength of 415 MPa.

U Bend ASME SA 213 T22 Heat Exchanger Tube is a high-quality tube that is designed to withstand extreme temperatures and pressures in boiler systems. This tube is made from a chromium-molybdenum alloy steel that provides excellent resistance to corrosion, oxidation, and wear. It is an ideal choice for use in power generation plants, petrochemical refineries, and other industrial applications where high-pressure and high-temperature conditions are present.

U Bend ASME SA 213 T22 Heat Exchanger Tube Chemical Composition

SA 213 T22 is a type of seamless ferritic alloy steel pipe intended for high-temperature service. The chemical composition of SA 213 T22 typically includes:

Carbon (C): 0.05-0.15%

Manganese (Mn): 0.30-0.60%

Phosphorus (P): 0.025% max

Sulfur (S): 0.025% max

Silicon (Si): 0.50-1.00%

Chromium (Cr): 1.90-2.60%

Molybdenum (Mo): 0.87-1.13%

U Bend ASME SA 213 T22 Heat Exchanger Tube Mechanical Properties:

ASME SA 213 T22 Boiler Tube are as follows:

Tensile strength: 415-585 MPa (60-85 ksi)

Yield strength: 220 MPa (32 ksi) min

Elongation: 30% min

Hardness: 163 HB max

U-Bend ASME SA 213 T22 Boiler Tubes Advantages:

U-bend tubes allow for a more compact and efficient design of heat exchangers and boilers, as they can be bent to fit into tight spaces and reduce the overall size of the system.

U-bend tubes also reduce the number of joints and connections in the system, which can improve reliability and reduce the risk of leaks.

Another key features of the U Bend ASME SA 213 T22 Heat Exchanger Tube is its U-shaped bend. This bend allows the tube to be installed in tight spaces, making it ideal for use in boilers where space is at a premium. The U bend also helps to reduce stress on the tube, which can extend its service life and reduce the risk of failure.

U-bend ASME SA 213 T22 Boiler Tubes Usages:

ASME SA 213 T22 heat exchanger Tubes are commonly used in high-temperature applications such as boilers, superheaters, and heat exchangers.

U Bend ASME SA 213 T22 Heat Exchanger Tube are specifically used in applications where a tight bending radius is required, such as in U-shaped heat exchangers.

These tubes are also used in power generation plants, petrochemical plants, and other industrial settings where high-temperature fluids need to be transported or exchanged.

In addition to its U-shaped bend and high-quality materials, the U Bend ASME SA 213 T22 Heat Exchanger Tube also features excellent heat transfer properties. This allows it to efficiently transfer heat from the combustion gases to the water in the boiler, improving overall efficiency and reducing fuel consumption.

Overall, the U Bend ASME SA 213 T22 Heat Exchanger Tube is an excellent choice for use in high-pressure and high-temperature boiler systems. Its U-shaped bend, high-quality materials, and excellent heat transfer properties make it a reliable and efficient choice for industrial applications. If you are in need of a high-quality boiler tube that can withstand extreme conditions, consider the U Bend ASME SA 213 T22 Heat Exchanger Tube.

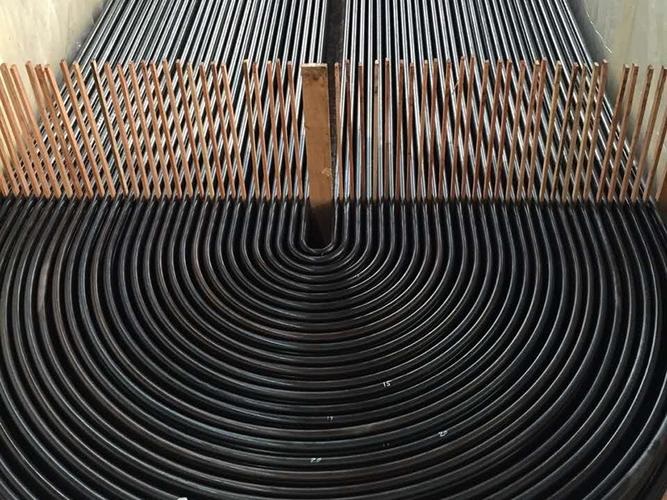

U Bend ASME SA 213 T22 Heat Exchanger Tube
