What is U bend ASTM A178 boiler and superheater tubes?

ASTM A178 is a specification that covers electric-resistance-welded carbon steel and carbon-manganese steel boiler and superheater tubes. These tubes are designed for high-temperature service in boilers, superheaters, heat exchangers, and condensers, which can be U bend to suit their applications.

1.U Bend ASTM A178 Boiler and Superheater Tubes manufacturing

Electric-Resistance-Welded: The tubes are manufactured through electric resistance welding (ERW), which involves passing an electric current through the edges of the steel strip to create a weld.

2. U Bend ASTM A178 Boiler and Superheater Tubes Size :

ASTM A178 tubes are available in a range of sizes, with variations in wall thickness and diameter, to suit different boiler and superheater applications. The specific dimensions can be found in the ASTM A178 standard, which provides the necessary information for ordering and manufacturing these tubes.

3. U Bend ASTM A178 Boiler and Superheater Tubes Material Grade and Chemical Composition:

ASTM A178 tubes are made from either carbon steel or carbon-manganese steel. The material grade for carbon steel is Grade A, while for carbon-manganese steel, it is Grade C. The chemical composition of these materials typically includes:

**Grade A (Carbon Steel):**

- Carbon (C): 0.06 - 0.18%

- Manganese (Mn): 0.27 - 0.63%

- Phosphorus (P): 0.035% max

- Sulfur (S): 0.035% max

**Grade C (Carbon-Manganese Steel):**

- Carbon (C): 0.35% max

- Manganese (Mn): 0.29 - 1.06%

- Phosphorus (P): 0.035% max

- Sulfur (S): 0.035% max

4. U Bend ASTM A178 Boiler and Superheater Tubes Mechanical Properties:

The mechanical properties of ASTM A178 tubes depend on the material grade and heat treatment processes. Here are the typical mechanical properties for Grade A and Grade C tubes:

**Grade A (Carbon Steel) - Mechanical Properties:**

- Tensile Strength: 325 MPa (min)

- Yield Strength: 180 MPa (min)

- Elongation: 35% (min)

**Grade C (Carbon-Manganese Steel) - Mechanical Properties:**

- Tensile Strength: 380 - 485 MPa

- Yield Strength: 275 MPa (min)

- Elongation: 30% (min)

5. U Bend ASTM A178 Boiler and Superheater Tubes Applications:

ASTM A178 tubes are primarily used in the construction of boilers, superheaters, heat exchangers, and condensers for high-temperature service. They are designed to withstand elevated temperatures and pressure conditions in various industrial processes. These tubes are an essential component in generating steam or transferring heat in power plants, petrochemical plants, refineries, and other industries that require heat exchange processes.

6. U Bend ASTM A178 Boiler and Superheater Tubes Heat Treatment:

ASTM A178 tubes may undergo heat treatment or cold finishing processes to achieve the required mechanical properties and dimensions.

7. U Bend ASTM A178 Boiler and Superheater Tubes Testing and Inspection:

The specification outlines various mechanical tests, flattening tests, and hydrostatic tests to ensure the quality and integrity of the tubes.

8. U Bend ASTM A178 Boiler and Superheater Tubes Surface Finish:

The tubes can be coated with a protective layer to prevent corrosion during storage and transportation.

Overall, ASTM A178 tubes are an important part of energy generation and industrial applications, providing efficient and reliable heat transfer in high-temperature environments. Their suitability for use in boilers and superheaters makes them crucial components in ensuring the smooth operation of heat-intensive processes.

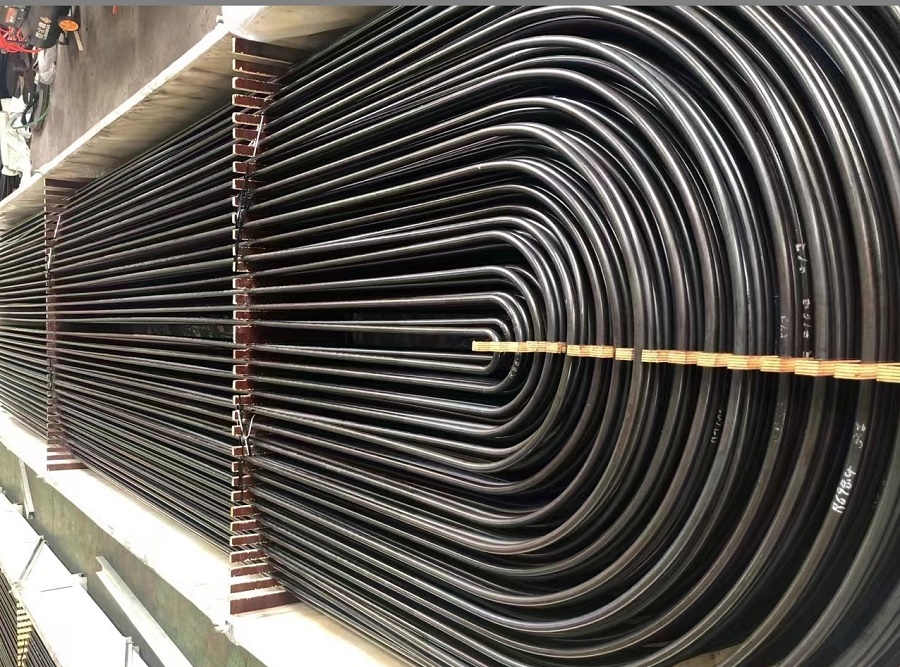

U Bend ASTM A178 Tubes
