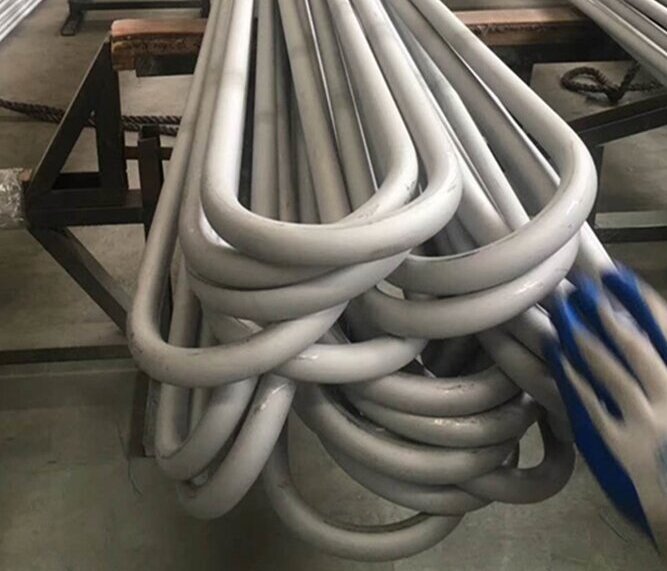

ASME SB163 UNS N06625 is a specification that covers seamless nickel-chromium-molybdenum-columbium alloy (UNS N06625) and nickel-chromium-molybdenum-silicon alloy (UNS N06219) tubes for general corrosion-resistant and heat-resistant applications. These alloys are commonly known as Inconel 625 and Inconel 718, respectively. U-bend tubes are a specific type of heat exchanger tubing that is bent in the shape of a U. They are commonly used in applications where space is limited and a compact design is required. The U-bend design allows for the efficient transfer of heat between two fluid streams, making them suitable for various industrial processes, including petrochemical, chemical, and power generation.



ASME SB163 UNS N06625 tubes are primarily composed of nickel, chromium, and molybdenum, which provide excellent corrosion resistance, high strength, and good mechanical properties even at elevated temperatures.

- Nickel (Ni): 58.0 - 71.0%

- Chromium (Cr): 20.0 - 23.0%

- Molybdenum (Mo): 8.0 - 10.0%

- Iron (Fe): Maximum of 5.0%

- Niobium + Tantalum (Nb+Ta): 3.15 - 4.15%

- Carbon (C): Maximum of 0.10%

- Manganese (Mn): Maximum of 0.50%

- Silicon (Si): Maximum of 0.50%

- Phosphorus (P): Maximum of 0.015%

- Sulfur (S): Maximum of 0.015%

- Aluminum (Al): Maximum of 0.40%

- Titanium (Ti): Maximum of 0.40%

- Cobalt (Co): Maximum of 1.0%



The nickel-chromium-molybdenum composition of Inconel 625 offers exceptional resistance to a wide range of corrosive environments, including acidic and alkaline solutions, chloride-ion stress corrosion cracking, and pitting.



U-bend tubes made from Inconel 625 are capable of maintaining their mechanical properties at high temperatures, making them suitable for applications involving heat exchangers and thermal processing.



U-bend tubes are manufactured by bending straight tubes to the required U shape using specialized bending equipment. Careful control of bending parameters is crucial to ensure that the tubes maintain their integrity and mechanical properties.



ASME SB163 sets the standards for the seamless nickel alloy tubes, including U-bend tubes. Compliance with these standards ensures that the tubes meet the required mechanical and chemical properties for their intended applications.



U-bend tubes made from ASME SB163 UNS N06625 material find applications in various industries, including oil and gas, chemical processing, aerospace, marine, and power generation, where they are used in heat exchangers, condensers, boilers, and other thermal equipment.



These tubes can be joined using various welding techniques, although the welding process should be chosen carefully to maintain the corrosion resistance and mechanical properties of the material.



U-bend tubes undergo rigorous testing and inspection processes to ensure their quality and compliance with standards. Non-destructive testing methods such as ultrasonic and radiographic testing are often used to detect any potential defects.

9. U-bend tubes made from ASME SB163 UNS N06625 Mechanical Properties:

The mechanical properties of Inconel 625 U-bend tubes vary based on factors such as temperature and heat treatment. Here are some typical mechanical properties:

- **Tensile Strength:** Around 760 - 950 MPa (110 - 138 ksi)

- **Yield Strength (0.2% offset):** Around 345 - 415 MPa (50 - 60 ksi)

- **Elongation:** Typically around 30 - 35%

- **Hardness:** Typically in the range of 185 - 240 HB



One of the key advantages of Inconel 625 is its ability to maintain its mechanical properties at high temperatures. It retains its strength and corrosion resistance even in environments where temperatures reach up to 1,000°C (1,832°F). This property makes it suitable for applications involving heat exchangers, aerospace components, and various high-temperature industrial processes.



In addition to its impressive mechanical properties, Inconel 625 offers exceptional corrosion resistance in various corrosive environments, including sea water, acids, alkaline solutions, and chloride-rich environments. This corrosion resistance is a crucial factor in its widespread use in industries with demanding operational conditions.



Inconel 625 is generally considered to have good weldability, and it can be welded using various techniques such as gas tungsten arc welding (GTAW), gas metal arc welding (GMAW), and shielded metal arc welding (SMAW). However, post-weld heat treatment may be necessary to ensure optimal properties and corrosion resistance in the welded areas.
