What is ASTM A182 F53 tube sheet?

ASTM A182 F53 tube sheet refers to a tube sheet that is manufactured using ASTM A182 F53 material specification. When producing a tube sheet as per ASTM A182 F53, certain specifications and requirements outlined in the ASTM A182 standard need to be followed.

1. ASTM A182 F53:

ASTM A182 is a standard specification for forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves. Within this specification, F53 refers to a specific grade of duplex stainless steel. Duplex stainless steels are characterized by their mixed microstructure, combining the benefits of austenitic and ferritic stainless steels. F53, also known as UNS S32750 or 2507, offers excellent corrosion resistance, high strength, and good weldability.

2. ASTM A182 F53 tube sheet manufacturing:

Tube sheets are typically produced by a fabrication process involving cutting, drilling, and machining operations. The specific steps involved in tube sheet manufacturing include:

   a. Material Preparation: The chosen ASTM A182 F53 stainless steel is obtained in the required form (plate, sheet, or bar) and then cut to the desired size for the tube sheet.

   b. Hole Drilling: Holes for the tubes are drilled into the tube sheet. The hole diameter, spacing, and pattern depend on the design requirements and the type of tubes being used.

   c. Machining: The tube sheet is machined to achieve the desired dimensions, flatness, and surface finish. This may involve facing, milling, and other machining operations.

   d. Heat Treatment: Depending on the specific requirements of ASTM A182 F53, the tube sheet may undergo heat treatment processes like solution annealing or quenching to achieve the desired material properties.

   e. Non-Destructive Testing: The tube sheet may undergo various non-destructive testing techniques to ensure quality and detect any defects. These techniques can include ultrasonic testing, liquid penetrant testing, or magnetic particle inspection.

   f. Finishing: The tube sheet is typically inspected for dimensional accuracy, surface quality, and any remaining defects. It may also undergo surface treatment, such as pickling or passivation, to enhance corrosion resistance.

3. Quality Control and Certifications:

During the production of a tube sheet as per ASTM A182 F53, rigorous quality control measures are followed to ensure compliance with the standard. The material should be accompanied by mill test certificates (MTCs) that provide details about the chemical composition, mechanical properties, and any required heat treatment. Additional certificates, such as inspection reports or non-destructive testing reports, may also be provided to verify the quality of the tube sheet.

4. The advantages ASTM A182 F53 tube sheet

a. Corrosion Resistance: ASTM A182 F53 duplex stainless steel provides exceptional resistance to corrosion, especially in chloride-rich environments. This makes it highly suitable for applications where the tube sheet is exposed to aggressive substances or harsh operating conditions, such as seawater, brackish water, or chemical environments.

b. High Strength: ASTM A182 F53 exhibits high tensile and yield strength, allowing the tube sheet to withstand significant mechanical stresses and pressures. This strength is especially advantageous in applications where the tube sheet supports a large number of tubes or is subject to high differential pressures.

c. Excellent Weldability: ASTM A182 F53 offers good weldability, which simplifies the fabrication process and allows for efficient joining of the tube sheet to other components, such as tubes or shells. This facilitates the construction and assembly of heat exchangers, boilers, and other equipment that incorporate tube sheets.

d. Resistance to Stress Corrosion Cracking: Stress corrosion cracking (SCC) is a common issue in corrosive environments, particularly for materials exposed to both tensile stress and corrosive agents. ASTM A182 F53 is highly resistant to SCC, providing added durability and reliability to the tube sheet in challenging conditions.

e. Thermal Conductivity: Duplex stainless steel, including ASTM A182 F53, has good thermal conductivity properties, which enhances heat transfer efficiency in applications such as heat exchangers. This promotes optimal performance and energy efficiency of the equipment.

f. Longevity and Durability: The corrosion resistance, high strength, and resistance to stress corrosion cracking of ASTM A182 F53 contribute to the longevity and durability of the tube sheet. This reduces the risk of premature failure or degradation, resulting in longer service life and reduced maintenance costs.

g. Versatility: ASTM A182 F53 tube sheets can be used in a wide range of industries and applications, including oil and gas, chemical processing, desalination plants, power generation, and more. The materials versatile properties make it suitable for various operating conditions and requirements.

The specific advantages of using an ASTM A182 F53 tube sheet may vary depending on the application, operating conditions, and design considerations. Proper engineering analysis and evaluation of the specific requirements are essential to determine the optimal material choice for a given tube sheet application.

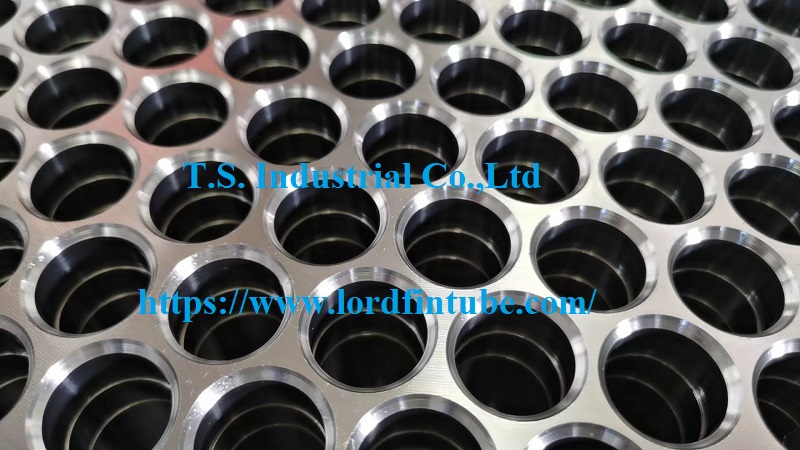

ASTM A182 F53 tube sheet
