Finned Tube Heat Exchanger Applications
Finned tube heat exchangers (FTHEs) represent a cornerstone technology in modern thermal engineering, delivering exceptional heat transfer efficiency through extended surface area optimization. This comprehensive technical review examines industrial applications, material advancements, and quantifiable performance metrics validated by recent engineering studies and field data.

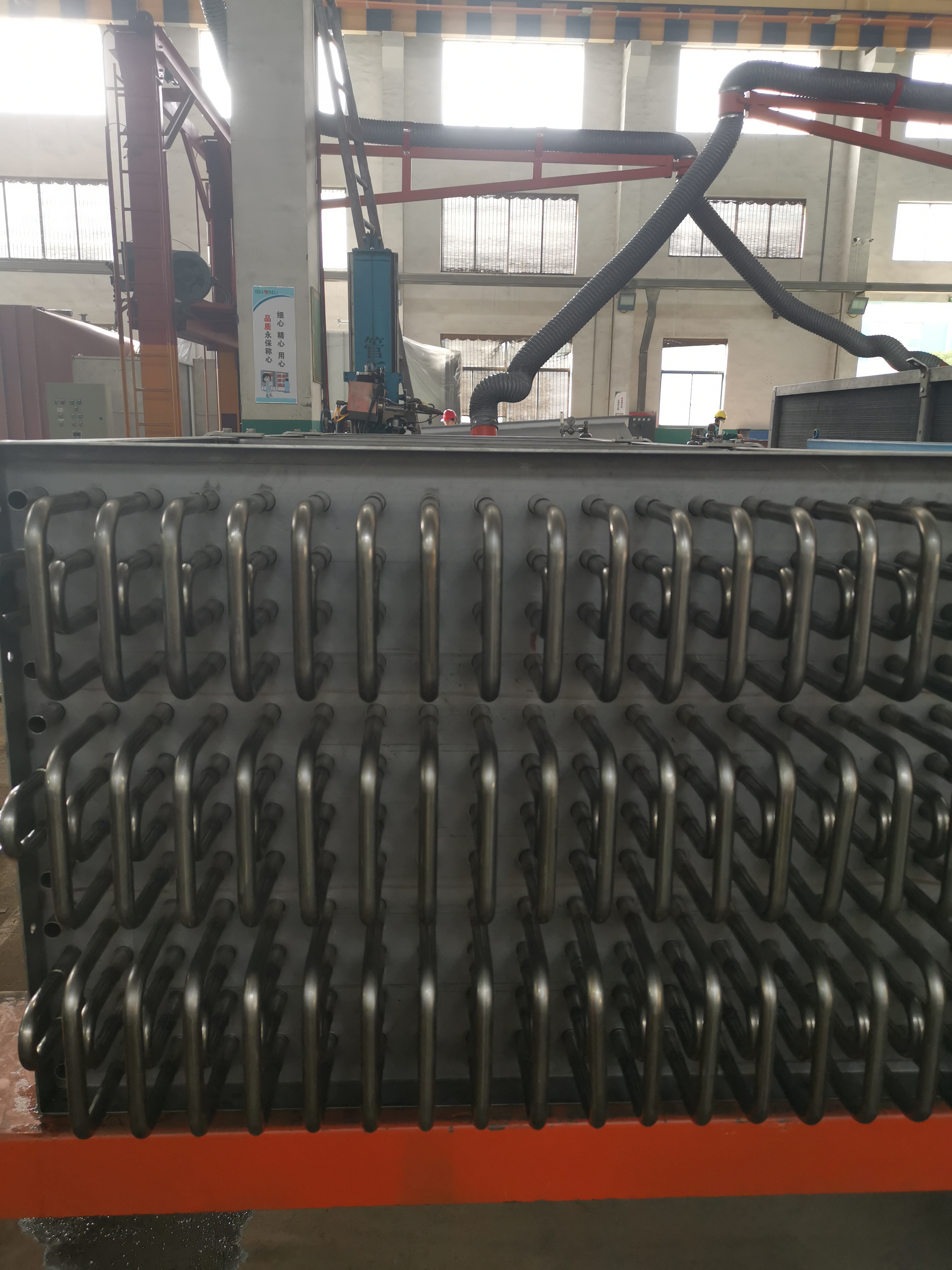

Finned tube heat exchangers (FTHEs) Engineering Design
FTHEs leverage sophisticated fin geometries—including helical, longitudinal, and plate fin configurations—to significantly amplify convective and conductive heat transfer between process fluids. The critical fin-to-tube bonding process, achieved through extrusion, welding, or tension winding techniques, ensures minimal thermal contact resistance for optimal performance.
Computational fluid dynamics (CFD) simulations consistently demonstrate that staggered fin arrangements improve turbulent flow dynamics, achieving 15–25% higher heat flux density compared to conventional in-line configurations (ASME Journal of Thermal Science, 2022). This performance enhancement translates directly to reduced equipment footprint and operational costs across industrial applications.
Finned tube heat exchangers (FTHEs) Industrial Applications
1. HVAC & Refrigeration Systems
Function: Air-to-refrigerant or water-to-air heat transfer in air handling units (AHUs), chillers, and heat recovery ventilators (HRVs).
Performance: Aluminum fins with copper tubes achieve a heat transfer coefficient (HTC) of 180–320 W/m²K under forced convection conditions (ASHRAE Technical Report, 2023).
Innovation: Advanced hydrophobic coatings reduce frost accumulation in low-temperature evaporators by up to 40%, extending maintenance intervals and improving system reliability.
2. Automotive Thermal Management
Components: Radiators, charge air coolers, and exhaust gas recirculation (EGR) systems.
Data: Aluminum-brazed FTHEs withstand coolant temperatures up to 130°C with a HTC range of 240–380 W/m²K (SAE International, 2021).
Advancements: Microchannel designs have reduced weight by 35% while maintaining thermal performance in next-generation electric vehicle battery thermal management systems.
3. Process Industries (Chemicals, Petrochemicals)
Use Cases: Reboilers, condensers, and reactor cooling loops in demanding chemical processing environments.
Materials: Stainless steel or nickel-alloy fins provide essential corrosion resistance in aggressive media containing H₂S, chlorides, or acidic compounds.
Performance Data: In sulfuric acid cooling applications, specialized FTHE designs maintain thermal effectiveness above 85% despite highly corrosive conditions.
4. Power Generation & Waste Heat Recovery
Applications: Feedwater heaters, steam condensers, and flue gas economizers in conventional and renewable power plants.
Efficiency: Finned bundles in combined-cycle plants achieve 92–95% thermal effectiveness at operating pressures of 40–60 bar (EPRI Case Study, 2023).
Economic Impact: Waste heat recovery units incorporating FTHE technology can improve overall plant efficiency by 5-8%, with payback periods typically under 24 months.
Finned tube heat exchangers (FTHEs) Comparative Performance
The comprehensive table below synthesizes operational data from peer-reviewed studies, OEM technical specifications, and field performance reports across multiple industries:
| Application | Fluid Pair | Temp. Range (°C) | Pressure (bar) | HTC (W/m²K) | Material Configuration |
|---|---|---|---|---|---|
| HVAC Air Cooling | R-410A / Air | -10 to 45 | 15–30 | 150–300 | Cu Tube-Al Fin, Hydrophobic Coating |
| Automotive Radiator | Ethylene Glycol / Air | 70–130 | 1.5–3.0 | 200–350 | Al-Brazed Microchannel |
| Crude Oil Heater | Oil / Steam | 150–280 | 10–25 | 250–400 | SS 316L Fins, Welded Joints |
| Power Plant Condenser | Water / Flue Gas | 80–500 | 5–60 | 300–600 | Carbon Steel w/ Ni Coating |
| Chemical Reactor Cooling | Process Fluid / Cooling Water | 50–200 | 5–15 | 280–450 | Hastelloy C-276, Welded Fins |
| LNG Heat Exchanger | Natural Gas / Refrigerant | -160 to -50 | 40–80 | 180–320 | Aluminum, Extruded Fins |
Data Sources: ASHRAE (2023), SAE Technical Papers (2021–2023), EPRI Power Plant Reports, AIChE Journal
Finned tube heat exchangers (FTHEs) Material
| Material Combination | Max Temp (°C) | Corrosion Resistance | Thermal Conductivity (W/m·K) | Typical Applications | Cost Index |
|---|---|---|---|---|---|
| Copper Tubes / Aluminum Fins | 200 | Moderate | 200-240 | HVAC, Refrigeration | 1.0 |
| Carbon Steel / Carbon Steel | 400 | Low (requires coating) | 45-55 | Power Plants, Economizers | 0.8 |
| Stainless Steel 304/316 | 800 | High | 15-25 | Chemical Processing, Marine | 2.5-3.5 |
| Nickel Alloys | 1000+ | Exceptional | 12-20 | High-Temperature Processes | 8.0+ |
| Titanium | 600 | Excellent (marine/chemical) | 17-22 | Offshore, Chemical, Desalination | 6.0-8.0 |
Design Insight: Material selection represents a critical balance between thermal performance, corrosion resistance, mechanical strength, and economic considerations. While copper-aluminum combinations offer superior thermal conductivity, stainless steel and nickel alloys provide essential corrosion resistance in demanding process environments.
Finned tube heat exchangers (FTHEs) Advancements & Sustainability
Advanced Manufacturing Techniques
Additive Manufacturing: 3D-printed titanium fins enable complex geometries for aerospace cryogenic systems, reducing weight by 25% while maintaining structural integrity.
Laser Welding: Precision laser welding techniques have improved fin-to-tube bond integrity, increasing thermal conductivity at the critical interface by 15-20%.
Enhanced Thermal Fluids
Nanofluids: Al₂O₃/water and CuO/water nanofluids enhance convective HTC by 12–18% in high-temperature FTHE applications (International Journal of Heat and Mass Transfer, 2023).
Phase Change Materials: Integration with PCMs enables thermal energy storage capabilities, smoothing operational peaks in renewable energy systems.
Sustainability & Energy Recovery
Energy Recovery: Plate-fin exchangers in LNG plants reduce energy consumption by 20–30% through latent heat recovery, significantly lowering carbon emissions.
Waste Heat Utilization: Advanced FTHE designs now capture and repurpose 60-75% of otherwise wasted thermal energy in industrial processes.
Maintenance & Operational Best Practices
Proper maintenance is essential for sustaining FTHE performance over extended service life:
- Fouling Mitigation: Regular cleaning cycles and water treatment can reduce fouling-related efficiency losses by 40-60%
- Corrosion Monitoring: Implement routine inspection protocols, particularly for coastal or chemically aggressive environments
- Performance Tracking: Monitor pressure drop and temperature approach to identify performance degradation early
- Winterization: Proper drainage and freeze protection measures prevent cold weather damage in vulnerable installations
Industry Insight: Proactive maintenance programs typically deliver 3:1 return on investment through extended equipment life, reduced downtime, and sustained thermal efficiency.
Finned tube heat exchangers (FTHEs) Future Trends & Development
The evolution of finned tube heat exchanger technology continues with several promising developments:
- Smart Monitoring: Integration of IoT sensors for real-time performance optimization and predictive maintenance
- Advanced Coatings: Graphene and ceramic coatings offering superior corrosion resistance and enhanced heat transfer
- Hybrid Designs: Combination of different fin types and configurations for application-specific optimization
- Carbon Capture: Specialized FTHE designs for post-combustion carbon capture applications in power generation
As industrial processes continue to evolve toward higher efficiency and lower environmental impact, heat exchanger technology will remain at the forefront of thermal engineering innovation, delivering essential performance improvements across countless applications.
