Premium Finned Tube Heaters for Steam, Oil, Water & Gas Applications
High-performance finned tube heaters deliver maximum heat transfer, durability, and energy savings for industrial applications. Our ISO 9001 & CE certified Finned Tube Heater solutions provide 3-5x higher heat exchange efficiency compared to standard bare pipes. This makes them ideal for HVAC systems, oil refineries, chemical processing plants, and food drying operations.
Finned Tube Heater Benefits
Custom Sizes & Materials: Stainless Steel (SS304/316), Carbon Steel, Copper-Aluminum
High-Temperature Performance: Up to 300°C (572°F) continuous operation
Corrosion-Resistant Designs: Galvanized, aluminized, or epoxy-coated options
Global Shipping: Fast delivery to USA, Europe, Middle East & Asia
Competitive Pricing: Cost-effective solutions with bulk order discounts
Finned Tube Heater Construction
Industrial finned tube heaters consist of a base tube with extended surface fins. The fins increase the heat transfer area significantly. Different fin types serve various applications:
| Fin Type | Best For | Attachment Method |
|---|---|---|
| Spiral Fins | General heating applications | L-footed, embedded, or tension-wound |
| Longitudinal Fins | High-pressure steam systems | Welded or extruded |
| Serrated Fins | Heat recovery units | L-footed with notches |
| Studded Fins | Fluidized bed applications | Welded studs |
Finned Tube Heater Selection
Choosing the right finned tube heater requires considering several factors. The table below helps identify the optimal configuration for common industrial applications:
| Application | Recommended Material | Fin Type | Fin Density | Surface Treatment |
|---|---|---|---|---|
| HVAC Air Handling | Aluminum/Copper | Spiral | 150-200 fins/m | Epoxy coating |
| Steam Heating | Carbon Steel | Longitudinal | 80-120 fins/m | Galvanized |
| Chemical Processing | SS316 | Spiral | 100-150 fins/m | Bare metal |
| Thermal Oil Systems | Carbon Steel | Spiral | 120-180 fins/m | Aluminized |
| Food Drying | SS304 | Serrated | 90-130 fins/m | Sanitary finish |
Finned Tube Heater Specifications
Technical specifications for standard finned tube heaters. Custom dimensions and configurations are available upon request:
| Parameter | Specification |
|---|---|
| Materials Available | SS304, SS316, Carbon Steel, Copper-Aluminum |
| Maximum Temperature | 300°C (572°F) |
| Maximum Pressure | 4.0MPa (580 PSI) |
| Fin Types | Spiral, L-footed, Embedded |
| Fin Density | 50-200 fins per meter |
| Tube Diameter Range | 15mm to 150mm |
| Maximum Length | 12 meters (custom lengths available) |
| Surface Treatments | Galvanized, Painted, Bare Metal |
Finned Tube Heater Performance
Compared to standard bare pipes, finned tube heaters offer significant advantages in industrial settings:
| Feature | Standard Bare Pipe | Our Finned Tube Heater |
|---|---|---|
| Heat Transfer Efficiency | Low | 3-5x Higher |
| Space Requirements | More | Compact Design |
| Energy Consumption | Higher | 30% Lower Operating Cost |
| Service Life | 5-8 years | 10-15+ Years |
| Maintenance Needs | Frequent | Minimal |
Finned Tube Heater Applications
Finned tube heaters serve multiple industries with reliable heating solutions:
- Oil & Gas: Pipeline heating, refinery process heating, tank heating
- Chemical Processing: Reactor jackets, distillation columns, drying systems
- Food & Pharmaceutical: Sanitary-grade drying systems, process air heating
- Power Generation: Waste heat recovery economizers, air preheaters
- HVAC Systems: Air handling units, heating coils, heat recovery
- Industrial Boilers: Economizers, air heaters, feedwater heating
Finned Tube Heater Maintenance
Proper maintenance ensures optimal performance and longevity of finned tube heaters:
- Regular Inspection: Check for fin damage, corrosion, or fouling every 6-12 months
- Cleaning: Remove dust and debris using compressed air or soft brushing
- Leak Testing: Perform pressure tests annually to detect tube leaks
- Corrosion Protection: Inspect coatings and reapplying as needed
- Performance Monitoring: Track temperature differentials and pressure drops

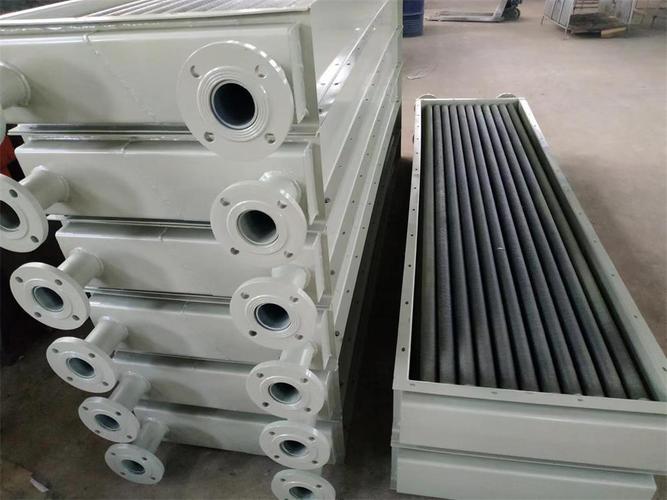

Industrial finned tube heater installation for process air heating system
Finned Tube Heater Installation
Correct installation is crucial for optimal performance:
- Ensure proper support spacing based on tube diameter and material
- Allow for thermal expansion with expansion joints or loops
- Maintain adequate clearance for air flow around fins
- Use appropriate gaskets and seals for pressure connections
- Follow manufacturers torque specifications for connections
For specific installation requirements for your Finned Tube Heater application, consult our technical team.
Energy Efficiency Considerations
Finned tube heaters contribute to sustainable operations through:
Reduced Fuel Consumption: Higher efficiency means less energy input required
Smaller Footprint: Compact design reduces material usage
Waste Heat Recovery: Enables capture of otherwise lost thermal energy
Long Service Life: Durable construction minimizes replacement frequency
Material Optimization: Right material selection reduces environmental impact
Industrial engineers report 25-40% energy savings when replacing bare pipe systems with properly designed finned tube heaters. The increased surface area allows for lower operating temperatures while maintaining heat output, further reducing energy consumption.
