How to Choose External Erosion Shield for High Temperature Pipeline System？
External erosion shields are protective accessories designed for high-temperature pipeline elbows, mainly classified into saddle, half-pipe and full-wrap types. Unlike integrated wear-resistant elbows that serve as pressure-bearing pipe components, these shields are mounted externally on standard elbows. They bear no internal pressure and do not convey process media, but protect the elbow outer arc from flue gas and particle erosion. They are widely applied for the maintenance and renovation of boiler reheaters, economizers and high-temperature flue gas pipelines.
Introduction

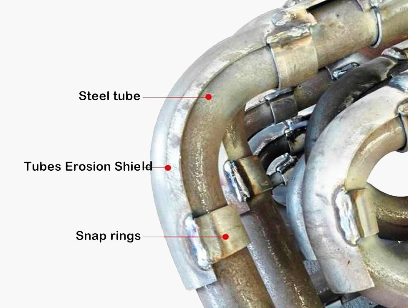

Elbow wear in high-temperature pipelines is primarily caused by external scouring from high-temperature flue gas and flying ash particles. For elbows with intact pressure-bearing performance but partial external wear, full elbow replacement is unnecessarily costly and inefficient. As targeted retrofitting solutions, external erosion shields are widely adopted for such working conditions. All erosion shields are non-pressure components. The original elbow remains the sole pressure-bearing and medium-transporting pipe body. Fixed by clamps or spot welding on the elbow outer arc, external shields buffer scouring impact and protect the base pipe. Featuring easy installation, low cost and no modification to the original pipeline structure, they have become the mainstream anti-erosion solution for in-service pipeline maintenance.
Core Definition and Essential Characteristics
External Erosion Shield Definition: A non-pressure arc or semi-circular protective plate installed on the outer surface of existing pipeline elbows. It undertakes no medium circulation, pipeline pressure or thermal load, and provides only external anti-erosion shielding for the base elbow.
Core Difference from Integrated Wear-Resistant Elbow: Integrated wear-resistant elbows are pressure-bearing replacement pipe fittings; external erosion shields are auxiliary outer protective accessories that preserve the original pipeline structure.
Structural Classification and Applicable Working Conditions
3.1 Saddle Partial-Arc Erosion Shield
The saddle shield is a localized arc protective structure covering less than 180° of the elbow outer arc, targeting only the most severely eroded areas. It creates minimal flow resistance and does not disturb internal flue gas flow fields. Manufactured from high-temperature alloys such as 310S and 1Cr20Ni14Si2, it delivers excellent high-temperature oxidation resistance.
Cost-effective and precisely targeted, this shield is ideal for elbows with uneven and concentrated local wear. It is widely used for precision anti-wear retrofits of boiler fine powder pipelines and partially worn high-temperature flue gas pipelines.
3.2 Half-Pipe Half-Round Erosion Shield
The half-pipe shield covers the full 180° outer arc of the elbow, covering the main scouring zone. As the most versatile external protection structure, it can be installed via clamp fastening or spot welding with simple procedures and strong adaptability.
It suits uniform outer-arc erosion on conventional high-temperature elbows, including boiler economizers, reheaters and general ash-flue pipelines. It effectively protects primary wear areas while balancing protection performance and construction cost.
3.3 Full-Wrap Erosion Shield
The full-wrap shield consists of two curved alloy plates that completely enclose the elbow bend, providing 360° all-round anti-erosion protection. With high structural stability, it resists multi-directional particle impact and alternating scouring.
Designed for severe working conditions with high flow velocity and complex multi-angle erosion, it offers the highest protection level and longest service life among external erosion shields. It is mainly applied to CFB boilers and critical high-wear pipeline sections.
Key Selection Principles
| Principle Item | Description |
|---|---|
| Working Condition Judgment | Apply external shields for elbows with intact pressure-bearing capacity and only external surface wear. Replace with integrated wear-resistant elbows if the pipe wall is thinned, damaged or structurally unreliable. |
| Wear Location Matching | Select saddle shields for localized concentrated wear, half-pipe shields for uniform outer-arc wear, and full-wrap shields for full-range severe erosion. |
| Temperature Adaptability | Adopt high-temperature alloy materials matching the actual pipeline temperature to prevent oxidation and thermal deformation. |
| Installation Adaptability | Ensure full fitting of shield size and radian with the base elbow to avoid gap abrasion and local stress concentration. |
Conclusion
External erosion shields are cost-effective, reliable auxiliary anti-wear solutions for high-temperature pipeline elbows. Without changing the original pressure-bearing pipeline structure, they perfectly adapt to daily maintenance and retrofitting of operating pipelines. Saddle, half-pipe and full-wrap shields fit different wear characteristics and working conditions. Scientific type selection effectively reduces external elbow erosion, extends pipeline service life, and lowers the overall operation and maintenance costs of industrial high-temperature pipeline systems.
