Hydronic Heating Fin Tubes
Hydronic Heating Fin Tubes
In the evolving landscape of heating technology, hydronic heating fin tubes have emerged as a cornerstone for efficient thermal transfer in industrial and commercial applications. These specialized components combine innovative engineering with material science to deliver performance where conventional pipes fall short, particularly in heat exchangers, boilers, and process heating systems.
What Are Hydronic Heating Fin Tubes?
Hydronic fin tubes are composite heat transfer elements featuring a base pipe (typically copper, stainless steel, or carbon steel) fused with external fins. The fins—spiral, straight, or serrated—expand the surface area exposed to air or fluid, accelerating heat dissipation by 200-400% compared to bare pipes. This design is pivotal in systems like industrial heat exchangers, thermal fluid heaters, and process heating applications where rapid thermal transfer dictates overall efficiency.
Enhanced Surface Area
Fin tubes increase heat transfer surface by 3-10x compared to bare tubes, significantly improving thermal efficiency in compact spaces.
Material Versatility
Available in various base/fin material combinations to suit specific temperature, pressure, and corrosion requirements.
Application Flexibility
Suitable for liquid-to-air, gas-to-liquid, and steam applications across multiple industries.
Core Materials: Technical Specifications & Performance Data
Material selection directly impacts performance, longevity, and application suitability. The following table compares common material combinations used in industrial hydronic heating applications:
| Material Combination | Thermal Conductivity (W/m·K) | Max Temp Rating | Corrosion Resistance | Typical Applications |
|---|---|---|---|---|
| Carbon Steel Base / Steel Fins | 45-55 | 450°C | Moderate (requires coating) | Boiler economizers, air heaters |
| Stainless Steel 304/316 | 15-25 | 800°C | Excellent | Chemical processing, marine applications |
| Copper Base / Aluminum Fins | 200-400 (effective) | 250°C | Good (indoor applications) | HVAC systems, heat recovery |
| Cupronickel 90/10 | 40-50 | 300°C | Excellent (seawater) | Marine systems, offshore platforms |
Technical Insight: ASTM Material Standards
For critical applications, material specifications should adhere to recognized standards:
- ASTM B111/B111M: Standard specification for copper and copper-alloy seamless condenser tubes and ferrule stock
- ASTM A179/A179M: Standard specification for seamless cold-drawn low-carbon steel heat-exchanger and condenser tubes
- ASTM A213/A213M: Standard specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes
Performance Comparison: Fin Tubes vs. Bare Tubes
| Parameter | Bare Tubes | Low-Fin Tubes | High-Fin Tubes |
|---|---|---|---|
| Surface Area Ratio | 1.0 | 2.5-3.5 | 5.0-7.0 |
| Heat Transfer Coefficient | Base Reference | 1.8-2.2x | 2.5-3.5x |
| Space Requirement | 100% | 40-50% | 25-35% |
| Pressure Drop | Base Reference | 15-25% higher | 30-50% higher |
| Cost Ratio | 1.0 | 1.8-2.5 | 2.5-4.0 |
Hydronic Heating Fin Tubes Industrial Applications
1. Boiler Systems & Economizers
Fin tubes in boiler applications recover waste heat from flue gases, improving overall system efficiency by 5-15%. In a recent installation at a German textile plant, stainless steel finned tube bundles increased boiler efficiency from 82% to 89%, with a payback period of under 18 months.
2. Process Heating & Thermal Fluid Systems
In chemical processing plants, carbon steel fin tubes with aluminized coatings handle thermal oil temperatures up to 320°C, providing uniform heating for reaction vessels and distillation columns.
3. Heat Recovery Systems
Waste heat recovery units using copper-aluminum fin tubes can capture 40-60% of otherwise lost thermal energy from exhaust streams, significantly reducing fuel consumption in industrial furnaces and ovens.
Performance Data: Industrial Case Study
A petroleum refinery implemented carbon steel fin tube bundles in their crude oil preheat train, resulting in:
- 12% reduction in fuel gas consumption
- Annual savings of $280,000 in energy costs
- CO₂ emissions reduced by 1,200 tons annually
- Payback period: 14 months
Selection Guidelines for Engineers
1. Temperature & Pressure Considerations
- Low Temperature (<200°C): Aluminum fins with copper or carbon steel base tubes
- Medium Temperature (200-400°C): Carbon steel or stainless steel with integral or welded fins
- High Temperature (>400°C): Stainless steel or special alloys with welded or extruded fins
2. Corrosion Environment Assessment
- Mild Environments (indoor): Carbon steel with protective coating
- Marine/Coastal: Cupronickel, stainless steel 316, or aluminized steel
- Chemical Exposure: Stainless steel 304/316, titanium, or special alloys
3. Fluid Compatibility
- Water/Glycol: Copper, carbon steel, or stainless steel
- Steam: Carbon steel or stainless steel
- Thermal Oils: Carbon steel with appropriate coatings
- Aggressive Chemicals: Stainless steel, Hastelloy, or titanium
Design Parameters & Engineering Calculations
Design Parameters
When specifying hydronic heating fin tubes, engineers should consider:
- Fin Density: 5-11 fins per inch (typical for industrial applications)
- Fin Height: 0.25-0.75 inches (optimizes heat transfer vs. pressure drop)
- Fin Thickness: 0.015-0.035 inches (balances durability and thermal performance)
- Tube OD: 0.5-2.0 inches (based on flow requirements and pressure drop)
Installation & Maintenance Best Practices
Installation Guidelines
- Ensure proper tube alignment to minimize stress on finned sections
- Use appropriate gaskets and seals to prevent leakage at connections
- Allow for thermal expansion in mounting design (typically 3-5mm per meter at 200°C)
- Follow manufacturer torque specifications for bolted connections
Maintenance Protocols
- Regular inspection for fin damage or corrosion (quarterly in harsh environments)
- Cleaning schedules based on fouling potential (compressed air or chemical cleaning)
- Monitoring pressure drop across the tube bundle to detect fouling early
- Non-destructive testing (NDT) for critical applications during scheduled shutdowns

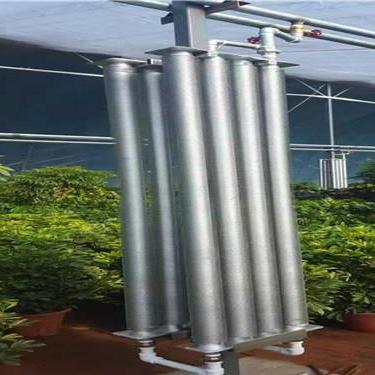

Hydronic Fin Tube Application in Industrial Heat Exchanger
Typical installation of hydronic heating fin tubes in a process heat exchanger
Hydronic Heating Fin Tubes
Hydronic heating fin tubes represent a critical technology for efficient thermal management in industrial applications. By understanding the material options, performance characteristics, and design considerations outlined in this guide, engineers can specify optimal fin tube solutions for their specific applications. As technology advances, these components will continue to play a vital role in improving energy efficiency and reducing environmental impact across multiple industries.
For specialized applications or custom requirements, consulting with experienced manufacturers who can provide technical support and testing validation is recommended to ensure optimal performance and longevity of fin tube installations.
