What Are Inner Grooved Copper Tubes?
Inner grooved copper tubes, also known as internally finned or micro-grooved copper tubes, are specialized heat transfer components featuring precisely engineered spiral grooves on their inner surfaces. These sophisticated internal structures significantly enhance thermal performance in refrigeration and air conditioning applications.An in-depth exploration of inner grooved copper tubes, their manufacturing processes, performance characteristics, and applications in modern HVAC and refrigeration systems.
Technical Insight: The internal grooves increase the effective heat transfer surface area by 20-40% compared to smooth tubes, while simultaneously promoting turbulent flow that breaks up the boundary layer and improves heat exchange efficiency.

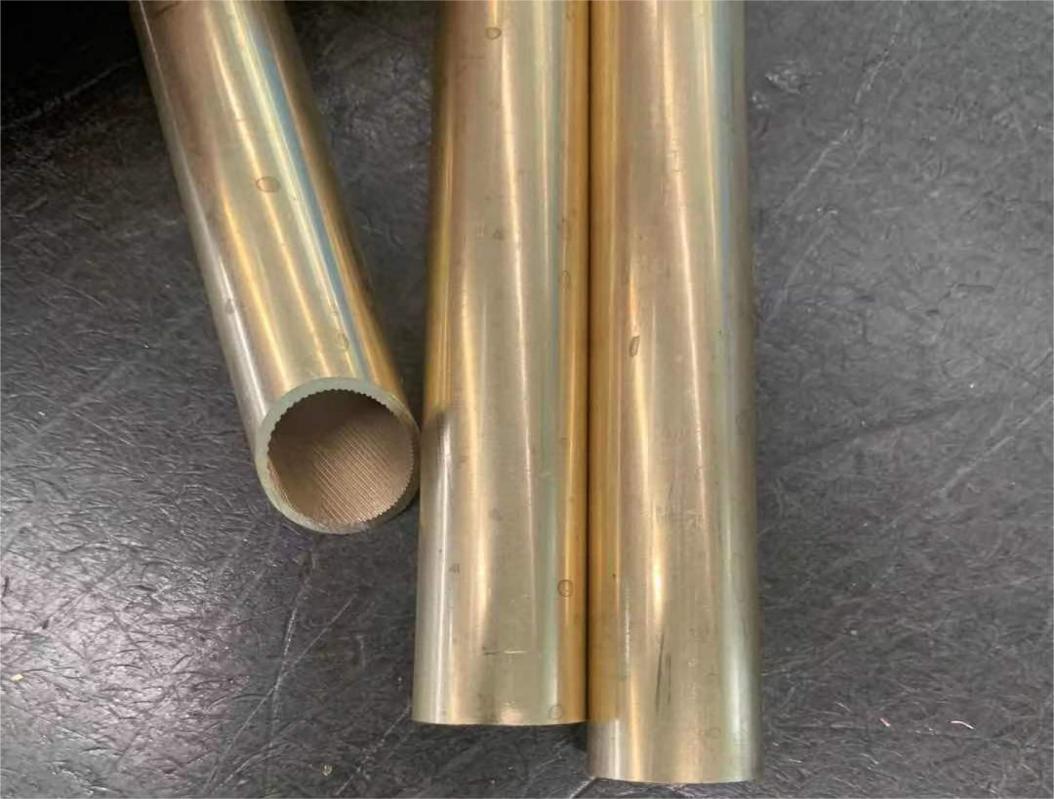

Microscopic view of inner grooved copper tube showing internal thread structure
Inner Grooved Copper Tubes Structural Characteristics
The unique design of inner grooved copper tubes includes:
Groove Patterns
Multiple groove configurations including herringbone, helical, trapezoidal, and hybrid patterns optimized for specific applications and refrigerants.
Surface Enhancement
Precisely engineered internal surface with controlled roughness and groove geometry to maximize nucleate boiling and condensation heat transfer.
Material Integrity
Maintained structural strength despite internal modifications, with enhanced pressure resistance compared to equivalent smooth tubes.
Inner Grooved Copper Tubes Technical Specifications and Standards
Inner grooved copper tubes comply with multiple international standards ensuring quality and performance consistency:
| Standard | Region | Key Specifications | Application Focus |
|---|---|---|---|
| GB/T 17791-2007 | China | Dimensions, mechanical properties, groove specifications | General HVAC applications |
| ASTM B280 | USA/North America | ACR (Air Conditioning & Refrigeration) tube specifications | Commercial refrigeration |
| JIS H3300 | Japan | Copper and copper alloy seamless pipes and tubes | High-efficiency systems |
| EN12735-2 | Europe | Copper and copper alloys for air conditioning and refrigeration | European market requirements |
Inner Grooved Copper Tubes Comparison: Inner Grooved vs. Smooth Tubes
| Parameter | Inner Grooved Tube | Smooth Tube | Improvement |
|---|---|---|---|
| Heat Transfer Coefficient | 1,800-3,500 W/m²K | 800-1,500 W/m²K | +125% to +133% |
| Surface Area Enhancement | 1.2x to 1.4x nominal | 1.0x nominal | +20% to +40% |
| Pressure Drop | 15-25% higher | Baseline | Optimized in design |
| Refrigerant Charge | Reduced by 15-30% | Baseline | More efficient usage |
| Energy Efficiency | 15-25% improvement | Baseline | Significant savings |
Inner Grooved Copper Tubes Chemical Composition
The precise chemical composition of inner grooved copper tubes ensures optimal thermal conductivity, formability, and corrosion resistance:
| Element | Content (%) | Function | Impact on Performance |
|---|---|---|---|
| Cu | ≥99.90 | Base material | Excellent thermal conductivity |
| P | 0.015-0.040 | Deoxidizer | Improves weldability and reduces porosity |
| O | ≤0.01 | Residual | Minimized to prevent oxidation issues |
| Other impurities | ≤0.10 total | Controlled | Ensures material purity and performance |
Inner Grooved Copper Tubes Physical Properties and Performance
Enhanced Heat Transfer Mechanism
The internal grooves create multiple beneficial effects for heat transfer:
- Surface Area Increase: Grooves expand the heat transfer surface by 20-40%, providing more area for thermal exchange
- Boundary Layer Disruption: Spiral grooves induce secondary flows that disrupt the thermal boundary layer, reducing thermal resistance
- Nucleate Boiling Enhancement: Groove edges provide additional nucleation sites for bubble formation during boiling
- Liquid Film Distribution: In condensation applications, grooves help distribute liquid film more evenly
Energy Efficiency Benefits
Performance Data: HVAC systems using inner grooved copper tubes demonstrate 15-25% higher energy efficiency compared to systems using smooth tubes, translating to significant operational cost savings over the equipment lifespan.
Mechanical Strength and Durability
Despite the internal modifications, inner grooved copper tubes maintain excellent mechanical properties:
- Pressure Resistance: Withstands working pressures up to 4.2 MPa (609 psi)
- Fatigue Resistance: Excellent vibration and thermal cycle resistance
- Corrosion Resistance: Natural copper oxide layer provides protection in most environments
- Temperature Range: Operational from -196°C to 205°C (-321°F to 401°F)
Inner Grooved Copper Tubes Manufacturing Process
The production of inner grooved copper tubes involves sophisticated manufacturing techniques:
1. Tube Blank Production
High-purity copper (≥99.90%) is melted and continuously cast into billets, which are then extruded or drawn to form seamless tube blanks with precise dimensional tolerances.
2. Internal Grooving
Multiple methods are employed to create the internal grooves:
- Ball Spinning: A hardened steel ball is pulled through the tube while the tube is rotated, forming precise grooves
- Plough Grooving: Stationary tools create grooves as the tube is drawn past them
- Helical Rolling: Planetary rollers create the groove pattern through cold working
3. Finishing Processes
After grooving, tubes undergo annealing to relieve stresses, cleaning to remove lubricants, and final inspection to ensure quality standards.
Inner Grooved Copper Tubes Applications
HVAC Systems
Evaporators and condensers in residential and commercial air conditioning
Commercial Refrigeration
Supermarket display cases, cold storage facilities, and industrial chillers
Automotive
Radiators, oil coolers, and HVAC systems in vehicles
Industrial Heat Exchangers
Process cooling, heat recovery systems, and specialized thermal equipment
Inner Grooved Copper Tubes Size Specifications
Imperial Threaded Pipe Dimensions
| Nominal Size (inches) | Outer Diameter (mm) | Inner Diameter (mm) | Threads per Inch | Pitch (mm) |
|---|---|---|---|---|
| 1/8 | 9.728 | 8.566 | 28 | 0.907 |
| 1/4 | 13.157 | 11.445 | 19 | 1.337 |
| 3/8 | 16.663 | 14.951 | 19 | 1.337 |
| 1/2 | 20.956 | 18.632 | 14 | 1.814 |
| 3/4 | 26.442 | 24.119 | 14 | 1.814 |
| 1 | 33.250 | 30.292 | 11 | 2.309 |
Metric Internal Thread Specifications
| Nominal Diameter (mm) | Pitch (mm) | Tap Drill Size (mm) |
|---|---|---|
| 2 | 0.4 | 1.6 |
| 2 | 0.25 | 1.75 |
| 3 | 0.5 | 2.5 |
| 3 | 0.35 | 2.65 |
Inner grooved copper tubes
Inner grooved copper tubes represent a significant advancement in heat transfer technology, offering enhanced thermal performance, energy efficiency, and system compactness. Their sophisticated internal geometry and precise manufacturing make them ideal for modern HVAC, refrigeration, and thermal management applications where performance and efficiency are paramount.
